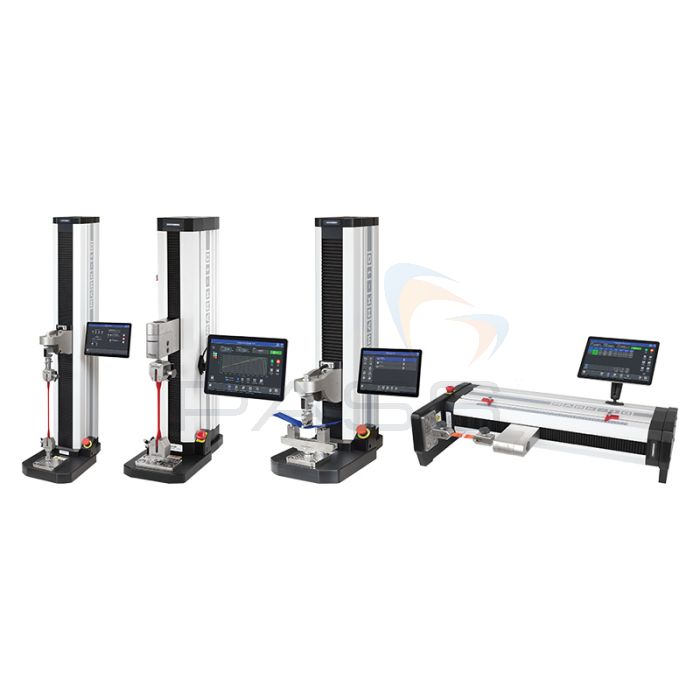

    Mark-10 IMT Test Frame with IntelliMESUR Pre-Loaded Tablet Control Panel (0.5 kN - 6.7 kN) - Choice of Model
    Description

    The Mark-10 Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbF (6.7 kN). Eight complete test frames are available with a pre-configured tablet control panel.

    Set up tests, record data, and analyze data via IntelliMESUR software. From basic tests to multi-step sequencing, IntelliMESUR is fully integrated with Series F systems.

    Series F + EasyMESUR Tension / Compression Force Testers

    What's In the Box

    F105-IMTU / F305-IMTU / F505-IMTU / F505H-IMTU

    • Control panel, mounting bracket, and hardware
    • Mounting bracket, column end (F505H-IMT only)
    • USB cable
    • #10-32M medium hook
    • 5/16-18M large hook
    • #10-32F 2" diameter compression plate
    • #10-32 M/F 2" extension rod
    • #10-32 F/F coupler
    • Adapter, 5/16-18M to #10-32F
    • Set screw, #10-32 × 3/4"
    • Hex nut, #10-32 (2)
    • Power cord
    • Allen wrench set
    • NIST-traceable certificate of calibration, force

    F755-IMTU / F755S-IMTU / F1505-IMTU / F1505S-IMTU

    • Control panel, mounting bracket, and hardware
    • USB cable
    • Eye end kit for base
    • Lock ring for eye end (2)
    • Spanner wrench (2)
    • Power cord
    • Allen wrench set
    • NIST-traceable certificate of calibration, force

    Rigid and Precise by Design

    Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.

    Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

    F105-IMTU / F305-IMTU / F505-IMTU / F505H-IMTU

    Rigid and precise by design example image.

    F755-IMTU / F755S-IMTU / F1505-IMTU / F1505S-IMTU

    Rigid and precise by design example image.

    Limit Switches

    Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.

    F105-IMTU / F305-IMTU / F505-IMTU / F505H-IMTU

    Limit Switches example image.

    F755-IMTU / F755S-IMTU / F1505-IMTU / F1505S-IMTU

    Limit Switches example image.

    Easy to Service Electronics

    Most electronics are housed in an integrated module, easily replaced without special tools or processes.

    F105-IMTU / F305-IMTU / F505-IMTU / F505H-IMTU

    Easy-to-service electronics example image.

    F755-IMTU / F755S-IMTU / F1505-IMTU / F1505S-IMTU

    Easy-to-service electronics example image.
    Tech Specs
    SKU F105-IMTU F305-IMTU F505-IMTU F505H-IMTU F755-IMTU F755S-IMTU F1505-IMTU F1505S-IMTU
    Load capacity*: 100 lbF [0.5 kN] 300 lbF [1.3 kN] 500 lbF [2.2 kN] 750 lbF [3.4 kN] 1,500 lbF [6.7 kN]
    Maximum travel: 18.0 in [457 mm] 32.0 in [813 mm] 14.2 in [360 mm] 32.0 in [813 mm] 14.2 in [360 mm]
    Speed range: 0.02 - 45 in/min [0.5 - 1,100 mm/min] 0.001 - 60 in/min [0.02 - 1,525 mm/min] 0.001 - 70 in/min [0.02 - 1,800 mm/min]
    Load accuracy (% of full scale): Test frame: ±0.1%
    Force sensor: Series FS05: ±0.1% | Series R07: ±0.15%
    Load sampling rate: 20,000 Hz
    Data acquisition rate: 1,000 Hz
    Speed accuracy: ±0.2% of setting, virtually no variation with load
    Distance accuracy: ±0.002 in [0.05 mm], factory-compensated at up to full load
    Distance resolution: 0.0005 in / 0.01 mm
    Limit switch repeatability: ±0.001 in / 0.03 mm
    Power: Universal input 100-240 VAC, 50/60 Hz, 300W Universal input 100-240 VAC, 50/60 Hz, 120W Universal input 100-240 VAC, 50/60 Hz, 450W
    Fuse type: 1.2 A, 250V, 3AG, SLO BLO 4A, 3AG, SLO BLO
    Weight: 60 lb [27 kg] 70 lb [32 kg] 184 lb [83 kg] 149 lb [68 kg] 197 lb [89 kg] 157 lb [74 kg]
    Environmental conditions:
    • Indoor use only
    • Up to 6,500 ft [2,000 m] above sea level
    • Temperature range: 40 - 95℉ [5 - 35℃]
    • Humidity range: up to 80% relative humidity at 31℃, decreasing linearly to 50% relative humidity at 40℃, non condensing
    • Mains supply voltage fluctuations up to ±10 % of the nominal voltage
    • Transient overvoltages up to the levels of Overvoltage Category II
    • Use in environments up to Pollution Degree 2
    Conformance: CE

    *Load capacity is reduced at higher speeds, as follows:

    • F305-IMTU: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
    • F505-IMTU / F505H-IMTU: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
    • F755-IMTU / F755S-IMTU: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min
    • F1505-IMTU / F1505S-IMTU: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min

    F105 / F305 / F505
    IN [MM]

    Mark-10 F105 / F305 / F505 dimensions.

    F05H
    IN [MM]

    Mark-10 F05H dimensions.
    Mark-10 F755 / F755S / F1505 / F1505S dimensions.
    Model A B
    F755 50.85 [1291.6] 8.13 - 40.13 [206.4 - 1019.2]
    F755S 33.39 [848.1] 8.13 - 22.33 [206.4 - 567.1]
    F1505 51.35 [1304.3] 8.13 - 40.13 [206.4 - 1019.2]
    F1505S 33.89 [860.9] 8.13 - 22.33 [206.4 - 567.1]
