Mark-10 Individual Functions - Choice of Function
- Distance Measurement, Limits, Preload
- High or Low Speed Extension, Break Detection, PC Control
- Cycling, Load Holding, FollowMe, Graphing & Reporting
- Suitable for the F105 / F305 / F505 / F505H-EM models
SKU
EMF00XX-1

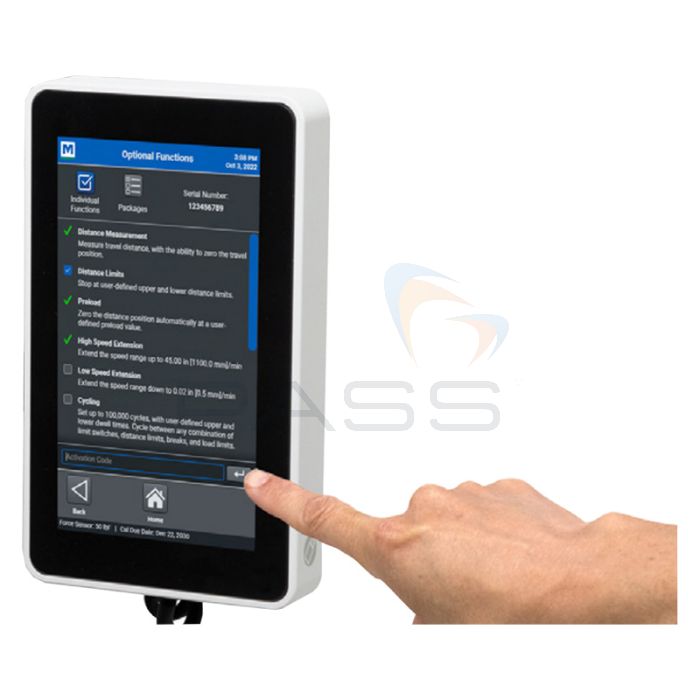

The Mark-10 individual functions can be enabled in the field through a code activation process or at the time of purchasing your Tension / Compression Test Frame. Suitable for the F105 / F305 / F505 / F505H-EM models.
Description
| SKU | Function | Description | Co-requirements |
|---|---|---|---|
| EMF001-1 | Distance Measurement | Measure distance, with the ability to zero the reading. | — |
| EMF002-1 | Distance Limits | Stop at user-defined upper and lower distance limits. | Distance Measurement (EMF001-1) |
| EMF003-1 | Preload | Zero the travel position automatically at a user-defined preload value. | Distance Measurement (EMF001-1) |
| EMF004-1 | High-Speed Extension | Extend the high end of the speed range, dependent upon the test frame model. | — |
| EMF005-1 | Low-Speed Extension | Extend the low end of the speed range, dependent upon the test frame model. | — |
| EMF006-1 | Cycling | Set up to 100,000 cycles, with user-defined upper and lower dwell times. Cycle between any combination of limit switches, travel limits, breaks, and load limits. | If cycling to distance limits, add Distance Measurement (EMF001-1) and Distance Limits (EMF002-1). If cycling to a breakpoint, add Break Detection (EMF007-1). |
| EMF007-1 | Break Detection | Stop when a user-defined drop in force occurs. | — |
| EMF008-1 | Load Holding | Stop at and maintain, a user-defined load for a specified period. | — |
| EMF009-1 | FollowMe | Push and pull on the sensor's loading shaft to jog the crosshead up and down, ideal for manual positioning before a test. Speed increases with applied force. | — |
| EMF010-1 | Graphing & Reporting | Graph load vs. time or distance, view statistics, and generate a report, including graphs, results, run data, and other information. | If graphing load vs. distance, add Distance Measurement (EMF001-1) |
| EMF011-1 | PC Control | Control the test frame with your application with a library of motion control and data collection serial commands. While PC control is active, the control panel becomes a pendant, limited to basic, manual controls. | 09-1158 cable, test frame to PC |
Technical Information
Additional Information
SKU
EMF00XX-1
Mark-10 Individual Functions - Choice of Function
£346.50
£415.80 inc vat
£346.50
£415.80 inc vat
