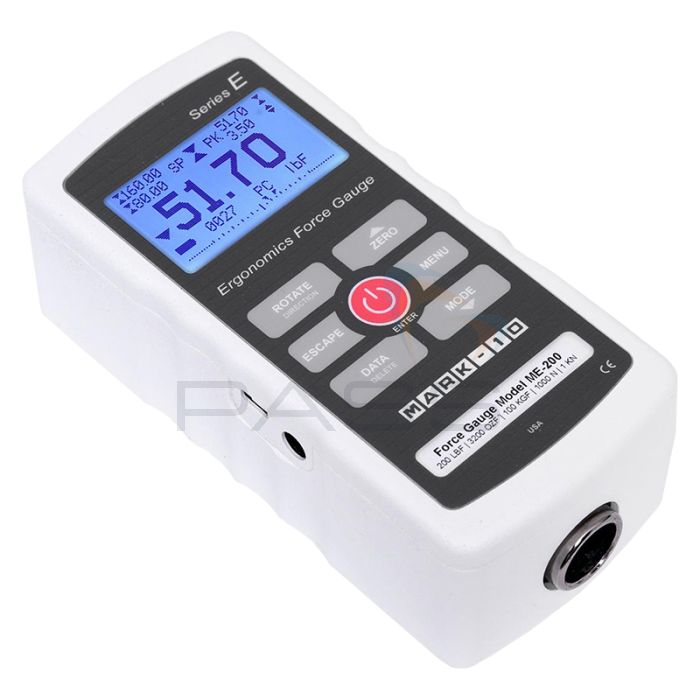

Mark-10 ME-100/200/500U Ergonomics Force Gauge - Choice of 100lbF / 500N, 200lbF / 1000N or 500lbF / 2500N
- 110V AC adapter and a UK plug (220V)
- Ideal for workplace design
- Simple and accurate ergonomics analysis
SKU
ME-100/200/500U
The Mark-10 Series E push / pull force gauges make job task and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF, and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available. All models include a 110V AC adapter UK plug (220V).
Key Features
- Measure real-time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Accuracy: ±0.2% of full scale
- Sampling rate: 7,000 Hz
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates the average force over some time
- 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to include MESURTM Lite data collection software.
- Statistical calculations for saved data points
- Includes an AC adapter/charger, rechargeable battery, MESURTM Lite software, MESURTMgauge 90-day trial, USB cable, USB driver, carrying case, and NIST traceable certificate of calibration with data
Product Range
- Mark-10 ME-100U Ergonomics Force Gauge, 100 lbF / 500 N (220V UK)
- Mark-10 ME-200U Ergonomics Force Gauge, 200 lbF / 1000 N (220V UK)
- Mark-10 ME-500U Ergonomics Force Gauge, 500 lbF / 2500 N (220V UK)
Technical Information
Specification
| Accuracy | ±0.2% of full scale |
|---|---|
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Battery life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| USB output | Configurable up to 115,200 baud |
| Safe overload | 200% of full scale (display shows "OVER" at 110% and above) |
| Weight | 1.7 lb [0.8 kg] |
| HS code | 9024100000 |
| ECCN | EAR99 |
| Model | Capacity x Resolution | ||||||
|---|---|---|---|---|---|---|---|
| lbF | ozF | kgF | gF | N | kN | ||
| ME-100 | 100 x 0.05 | 1600 x 1 | 50 x 0.02 | 50000 x 20 | 500 x 0.2 | - | |
| ME-200 | 200 x 0.05 | 3200 x 1 | 100 x 0.02 | - | 1000 x 0.2 | 1 x 0.0002 | |
| ME-500 | 500 x 0.1 | 8000 x 2 | 250 x 0.2 | - | 2500 x 0.5 | 2.5 x 0.0005 | |
