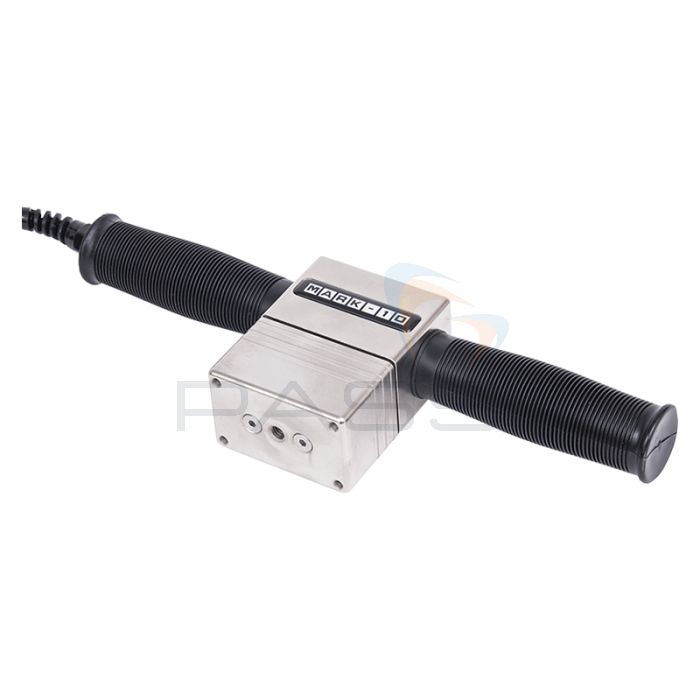

Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
- Rugged aluminium housing
- Measures push and pull force
- Force sensor, 500lbF/8000ozF/250kgF/2500N/2.5kN
SKU
MR05-500
MPN
MR05-500
The Mark-10 MR05-500 is a fully enclosed smart sensor designed for pull/push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension/compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500lbF [2,500N].
Key Features
- Member of the Plug & Test family of interchangeable sensors and indicators
- Rugged aluminum housing
- Measures push and pull force
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Mark-10 Warranty: 3 years
- Accuracy: ± 0.15% of full scale + indicator
- Weight: 2 lb [0.9 kg]
| Series R05 With Model 7i and 5i Indicators | ||||
|---|---|---|---|---|
| lbF | ozF | kgF | N | kN |
| 500 x 0.2 | 8000 x 5 | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
| Series R05 With Model 3i Indicator | ||||
|---|---|---|---|---|
| lbF | kgF | N | ||
| 500 x 0.5 | 250 x 0.2 | 2500 x 2 | ||
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
Additional Information
SKU
MR05-500
Manufacturer Part Code
MR05-500
Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
