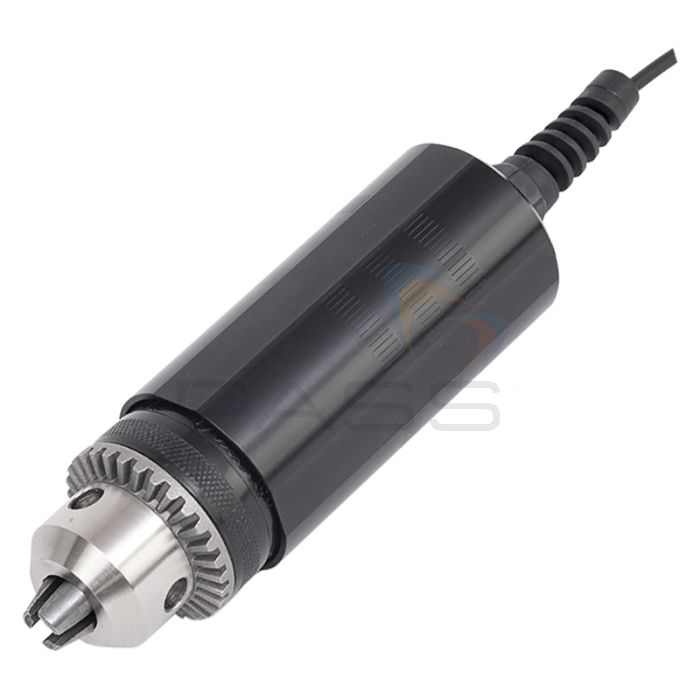

Mark-10 MR50 Universal Torque Sensor - Choice of Capacity from 10ozFin to 100lbFin (7 to 1,150Ncm)
- Universal Torque Sensors
- Capacities from 10ozFin to 100lbFin (7 to 1,150Ncm)
SKU
MR50-XXX
Measure bi-directional torque for a wide variety of applications. The sensor can be used as a hand-held device or mounted to a torque test stand. Requires a Mark-10 indicator, sold separately. Capacities are available from 10ozFin to 100lbFin (7 to 1,150Ncm).
Key Features
- Member of the Plug & Test family of interchangeable sensors and indicators
- Rugged aluminum housing
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge
- Mark-10 Warranty: 3 years
Product Ranges
- MK10-MR50-10Z Torque sensor, 10ozFin/700gFcm/7kgFmm/70Nmm/7Ncm
- MK10-MR50-20Z Torque sensor, 20ozFin/1400gFcm/14kgFmm/140Nmm/14Ncm
- MK10-MR50-50Z Torque sensor, 50ozFin/3600gFcm/36kgFmm/350Nmm/35Ncm
- MK10-MR50-12 Torque sensor, 12lbFin/1lbFft/192ozFin/135Ncm/1.35Nm
- MK10-MR50-50 Torque sensor, 50lbFin/4lbFft/800ozFin/570Ncm/5.7Nm
- MK10-MR50-100 Torque sensor, 100lbFin/8lbFft/1600ozFin/1150Ncm/11.5Nm
Technical Information
Specification
| A | Chuck Size Range | Chuck Key Size | |
|---|---|---|---|
| MR50-10Z | 4.82 [122.4] |
0.062-0.375 [1.6 - 9.5] includes key |
KGA |
| MR50-20Z | |||
| MR50-50Z | |||
| MR50-12 | 5.19 [131.8] |
0.078 - 0.5 [2.0 - 12.7] includes key |
KK |
| MR50-50 | |||
| MR50-100 |
| Capacity x Resolution With Models 7I and 5I Indicators | ||||||||
|---|---|---|---|---|---|---|---|---|
| lbFin | ozFin | lbFft | gFcm | kgFmm | Nmm | Ncm | Nm | |
| MR50-10Z | - | 10 x 0.005 | - | 700 x 0.5 | 7 x 0.005 | 70 x 0.05 | 7 x 0.005 | - |
| MR50-20Z | - | 20 x 0.01 | - | 1400 x 1 | 14 x 0.01 | 140 x 0.1 | 14 x 0.01 | - |
| MR50-50Z | - | 50 x 0.02 | - | 3600 x 2 | 36 x 0.02 | 350 x 0.2 | 35 x 0.02 | - |
| MR50-12 | 12 x 0.005 | 192 x 0.1 | 1 x 0.0005 | - | - | - | 135 x 0.1 | 1.35 x 0.001 |
| MR50-50 | 50 x 0.02 | 800 x 0.5 | 4 x 0.002 | - | - | - | 570 x 0.5 | 5.7 x 0.005 |
| MR50-100 | 100 x 0.05 | 1600 x 1 | 8 x 0.005 | - | - | - | 1150 x 1 | 11.5 x 0.01 |
| Capacity x Resolution With Model 3I Indicator | ||||
|---|---|---|---|---|
| lbFin | ozFin | kgFmm | Ncm | |
| MR50-10Z | - | 10 x 0.01 | 7 x 0.005 | 7 x 0.005 |
| MR50-20Z | - | 20 x 0.02 | 14 x 0.01 | 14 x 0.01 |
| MR50-50Z | - | 50 x 0.05 | 36 x 0.05 | 36 x 0.05 |
| MR50-12 | 12 x 0.01 | 192 x 0.2 | - | 135 x 0.1 |
| MR50-50 | 50 x 0.05 | 800 x 1 | - | 570 x 0.5 |
| MR50-100 | 100 x 0.1 | 1600 x 2 | - | 1150 x 1 |
