Mark-10 Series R04 Miniature Force Sensors (1000 mN - 500 N) - Choice of Sensor
- Range from 0.25 to 100 lbF (1 to 500 N)
- Miniature Force Sensors
- Compatible with Mark-10 Torque Indicators
SKU
MR04-XXXXX

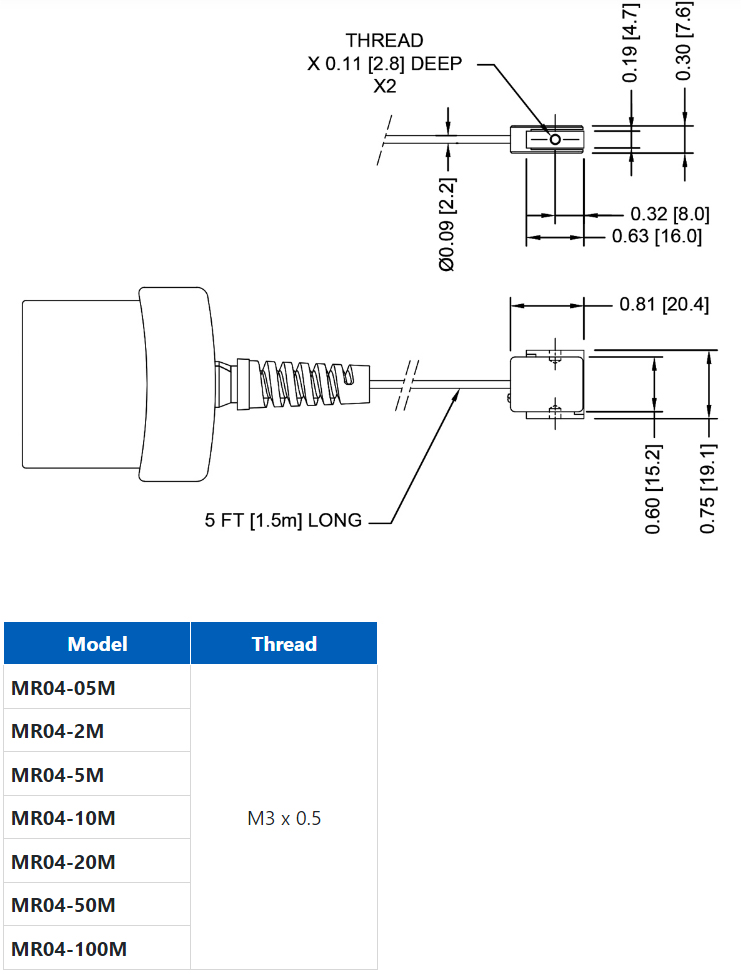

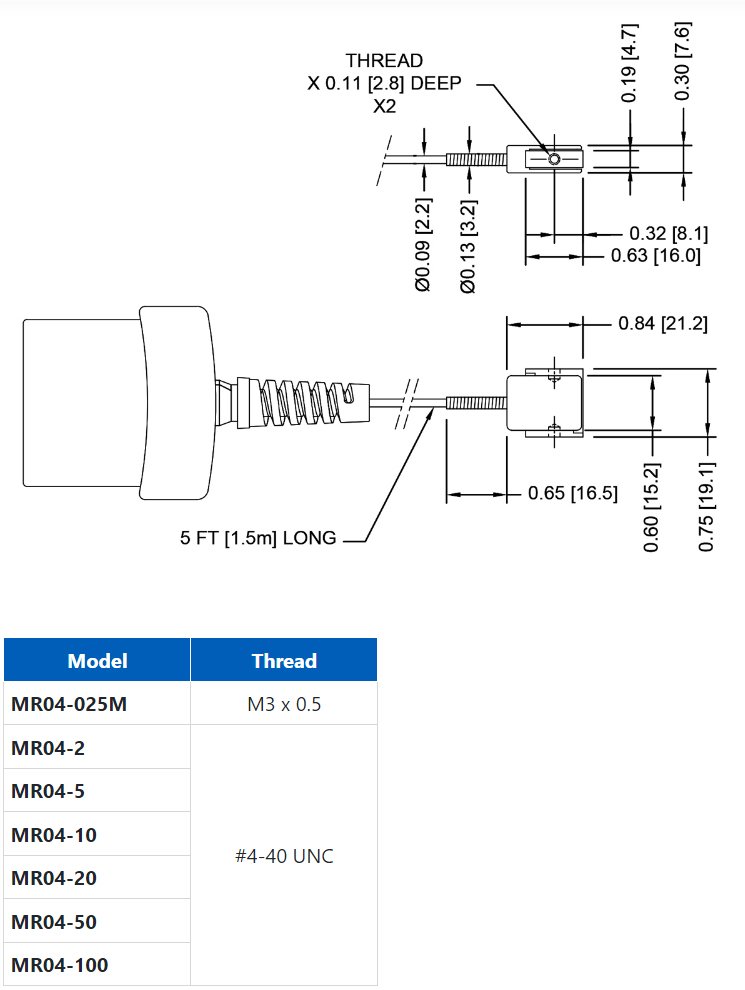

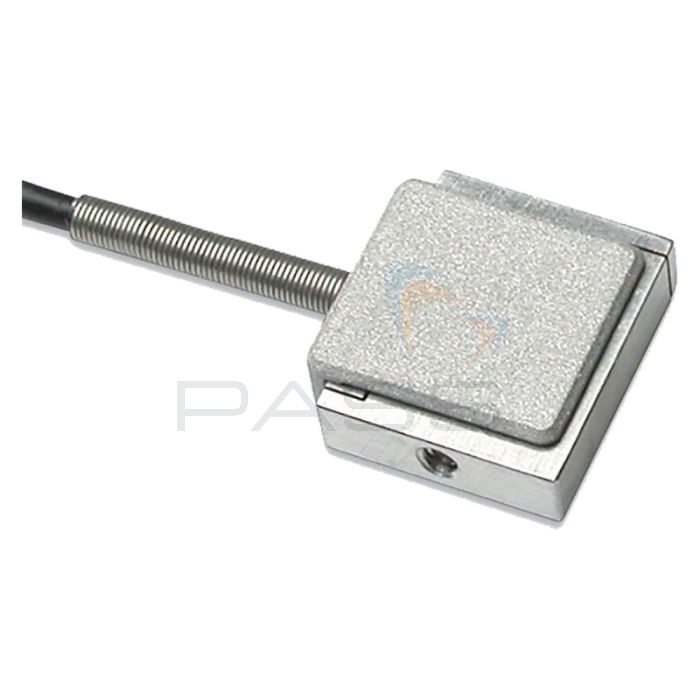

Extremely compact force measurement sensors for tensile and compressive loads in applications with limited space. The Mark-10 Series R04 is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.
Requires a Mark-10 indicator, available separately.
Key Features
- Member of the Plug & Test family of interchangeable sensors and indicators
- Ultra-compact size
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge
- Mark-10 Warranty: 3 years
- Accuracy: ± 0.2% of full scale + indicator
- Weight: 0.015 lb [0.007 kg]
Product Range
- MK10-MR04-10 Force sensor, 10lbF/160ozF/5kgF/5000gF/50N
- MK10-MR04-100 Force sensor, 100lbF/1600ozF/50kgF/50000gF/500N
- MK10-MR04-2 Force sensor, 2lbF/32ozF/1kgF/1000gF/10N
- MK10-MR04-20 Force sensor, 20lbF/320ozF/10kgF/10000gF/100N
- MK10-MR04-5 Force sensor, 5lbF/80ozF/2.5kgF/2500gF/25N
- MK10-MR04-50 Force sensor, 50lbF/800ozF/25kgF/25000gF/250N
- MR04-025M Force Sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN, M3
- MR04-05M Force Sensor, 0.5 lbF / 8 ozF / 250 gF / 2.5 N / 2500 mN, M3
- MR04-2M Force Sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N, M3
- MR04-5M Force Sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N, M3
- MR04-10M Force Sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N, M3
- MR04-20M Force Sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N, M3
- MR04-50M Force Sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N, M3
- MR04-100M Force Sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N, M3
Technical Information
Specification
| Capacity x Resolution With Model 7I and 5I Indicators | ||||||
|---|---|---|---|---|---|---|
| lbF | ozF | gF | kgF | N | mN | |
| MR04-025M | 0.25 x 0.0001 | 4 x 0.002 | 100 x 0.05 | - | 1 x 0.0005 | 1000 x 0.5 |
| MR04-05M | 0.5 x 0.0002 | 8 x 0.005 | 250 x 0.1 | - | 2.5 x 0.001 | 2500 x 1 |
| MR04-2 / MR04-2M | 2 x 0.001 | 32 x 0.02 | 1000 x 0.5 | 1 x 0.0005 | 10 x 0.005 | - |
| MR04-5 / MR04-5M | 5 x 0.002 | 80 x 0.05 | 2500 x 1 | 2.5 x 0.001 | 25 x 0.01 | - |
| MR04-10 / MR04-10M | 10 x 0.005 | 160 x 0.1 | 5000 x 2 | 5 x 0.002 | 50 x 0.02 | - |
| MR04-20 / MR04-20M | 20 x 0.01 | 320 x 0.2 | 10000 x 5 | 10 x 0.005 | 100 x 0.05 | - |
| MR04-50 / MR04-50M | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | - |
| MR04-100 / MR04-100M | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
| Capacity x Resolution With Model 3I indicator | ||||||
|---|---|---|---|---|---|---|
| lbF | gF | kgF | N | |||
| MR04-025M | 0.25 x 0.0002 | 100 x 0.1 | - | 1 x 0.001 | ||
| MR04-05M | 0.5 x 0.0005 | 250 x 0.2 | - | 2.5 x 0.002 | ||
| MR04-2 / MR04-2M | 2 x 0.002 | - | 1 x 0.001 | 10 x 0.01 | ||
| MR04-5 / MR04-5M | 5 x 0.005 | - | 2.5 x 0.002 | 25 x 0.02 | ||
| MR04-10 / MR04-10M | 10 x 0.01 | - | 5 x 0.005 | 50 x 0.05 | ||
| MR04-20 / MR04-20M | 20 x 0.02 | - | 10 x 0.01 | 100 x 0.1 | ||
| MR04-50 / MR04-50M | 50 x 0.05 | - | 25 x 0.02 | 250 x 0.2 | ||
| MR04-100 / MR04-100M | 100 x 0.1 | - | 50 x 0.05 | 500 x 0.5 | ||
