Mark-10 Series R08 Tension and Compression Force Sensors
- Threaded rods on both ends
- Accuracy: ±0.5% of full scale + indicator
- Three models available
SKU
MARK-10-R08
These Mark-10 R08 Series sensors handle tension and compression applications up to 10,000 lbF (50 kN) and feature threaded rods on each end for flexible mounting. They work with Mark-10 indicators (sold separately) via Plug & Test® technology for seamless integration.
- Threaded rods on both ends
- 17-4PH stainless steel / IP64 design withstands harsh environments
- NIST-traceable certificate of calibration with data included
- Mark-10 Warranty: 3 years
- Accuracy: ±0.5% of full scale + indicator
- Weight:
MR08-2000: 0.3 lb [0.1 kg]
MR08-5000: 0.4 lb [0.1 kg]
MR08-10000:0.6 lb [0.2 kg]
Product Range
- Mark-10 MR08-2000 Force Sensor, 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN
- Mark-10 MR08-5000 Force Sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN
- Mark-10 MR08-10000 Force Sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
With Models M7I & M5I Indicators
| Capacity x Resolution | ||||||
|---|---|---|---|---|---|---|
| Model | lbF | ozF | gF | kgF | N | kN |
| MR08-2000 | 2000 x 1 | 32000 x 20 | - | 1000 x 0.5 | 10000 x 5 | 10 x 0.005 |
| MR08-5000 | 5000 x 2 | - | - | 2500 x 1 | 25000 x 10 | 25 x 0.01 |
| MR08-10000 | 10000 x 5 | - | - | 5000 x 2 | 50000 x 25 | 50 x 0.02 |
With Model M3I Indicator
| Capacity x Resolution | ||||
|---|---|---|---|---|
| Model | lbF | kgF | N | kN |
| MR08-2000 | 2000 x 2 | 1000 x 1 | 10000 x 10 | - |
| MR08-5000 | 5000 x 5 | 2500 x 2 | - | 25 x 0.02 |
| MR08-10000 | 10000 x 10 | 5000 x 5 | - | 50 x 0.05 |

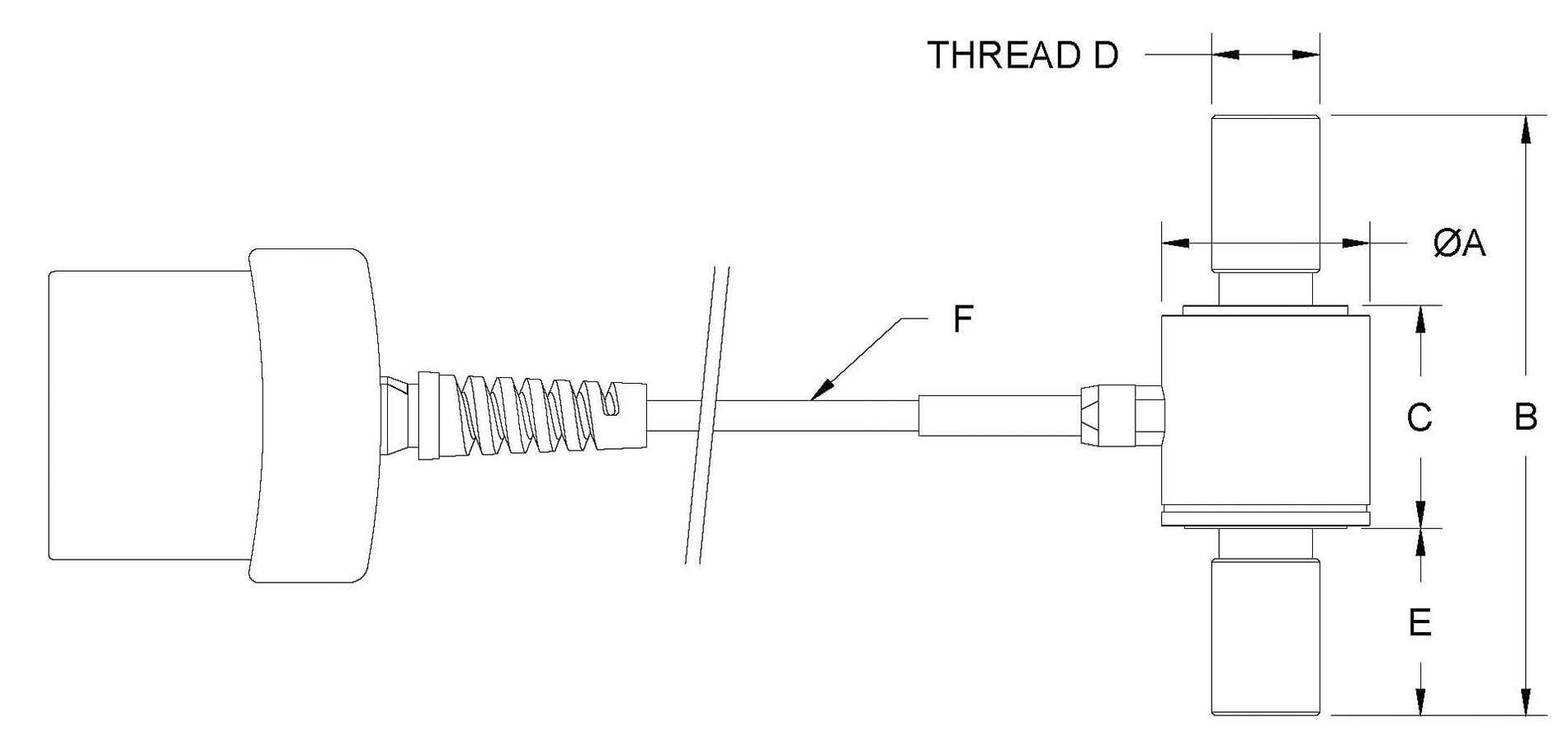

Dimensions
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| MR08-2000 | 0.96 [24.4] | 1.50 [38.1] | 0.72 [18.3] | 3/8-24 UNF | 0.39 [9.9] | 10 ft [3 m] |
| MR08-5000 | 2.77 [70.4] | 1.03 [33.0] | 1/2-20 UNF | 0.87 [22.1] | ||
| MR08-10000 | 1.11 [28.2] | 3/4-16 UNF |
