Mark-10 TSC1000 Test Stand, Hand Wheel-Operated, 1000 lb / 4.5 kN, Vertical
- Precision Acme screw and nut
- Mounting holes for bench mounting
- Compatible with all Mark-10 force gauges, accessories, and grips
SKU
TSC1000
MPN
TSC1000

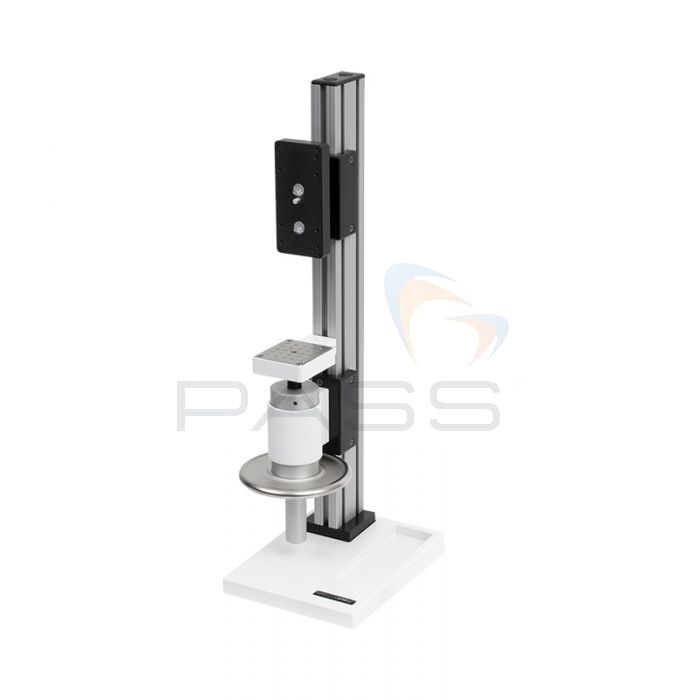

The Mark-10 TSC1000 is built for testing up to 1,000lbF (5kN) of compression or tension force. The vertical stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting.
Key Features
- Compatible with all Mark-10 force gauges, accessories, and grips
- Mounting holes for bench mounting
- Loading table with 25 #10-32 UNF holes for fixture mounting
- Precision Acme screw and nut
- Optional digital travel display
- Maximum force: 1,000 lbF [5 kN]
- Maximum travel: 3.5" [89 mm]
- Travel Rate: 0.1 in [2.5 mm] per handwheel revolution
- Weight: TSC1000: 25 lb [11.3 kg]
What's Included?
- (1) TSC1000 test stand
- (1) 1009 compression plate, 2” dia.
- (1)G1009-1 compression plate, 3” dia.
- (1) G1028 small hook
- (1) G1030 thread adapter, 5/16-18M to #10-32F
- (1) G1035 large hook
- (1) G1037 coupling, 5/16-18 F/F
- (1) G1038 medium hook
- (1) G1039 coupling, #10-32 F/F
- (1) G1041 thread adapter, 5/16-18M to #1/2-20M
- (1) G1042 extra large hook
- (1) G1044 1/2-20F adapter plate with mounting hardware
- (1) 5/16-18 stud with jam nuts
- (1) #10-32 stud with jam nuts
- (1) Base
- (4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
- (4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
- (1) Allen wrench set
