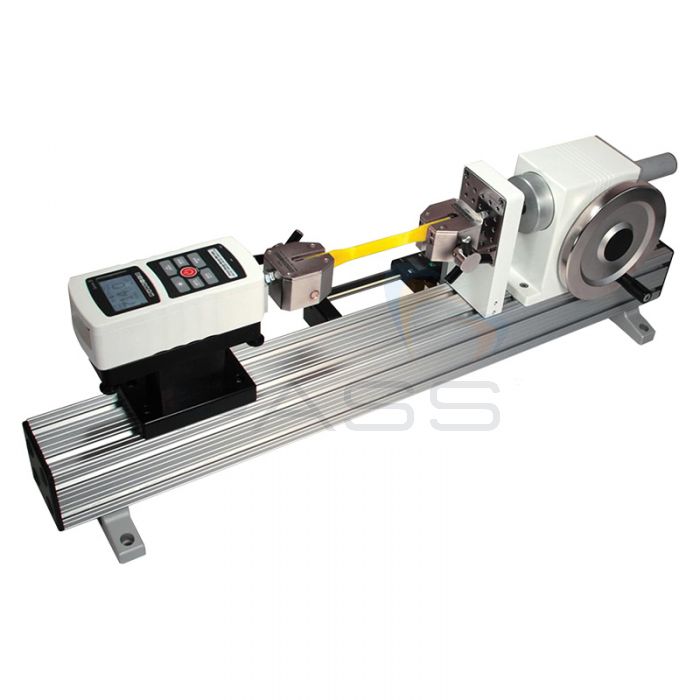

Mark-10 TSFH Test Stand, Hand Wheel-Operated, 1000 lbF / 4.5 kN, Horizontal

The Mark-10 TSFH is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000lbF (5kN) of push or pull force. The horizontal stand features a large side-mounted handwheel requiring minimal user effort and a rigid 3" × 3" column.

A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting.

Key Features

• Compatible with all Mark-10 force gauges, accessories, and grips

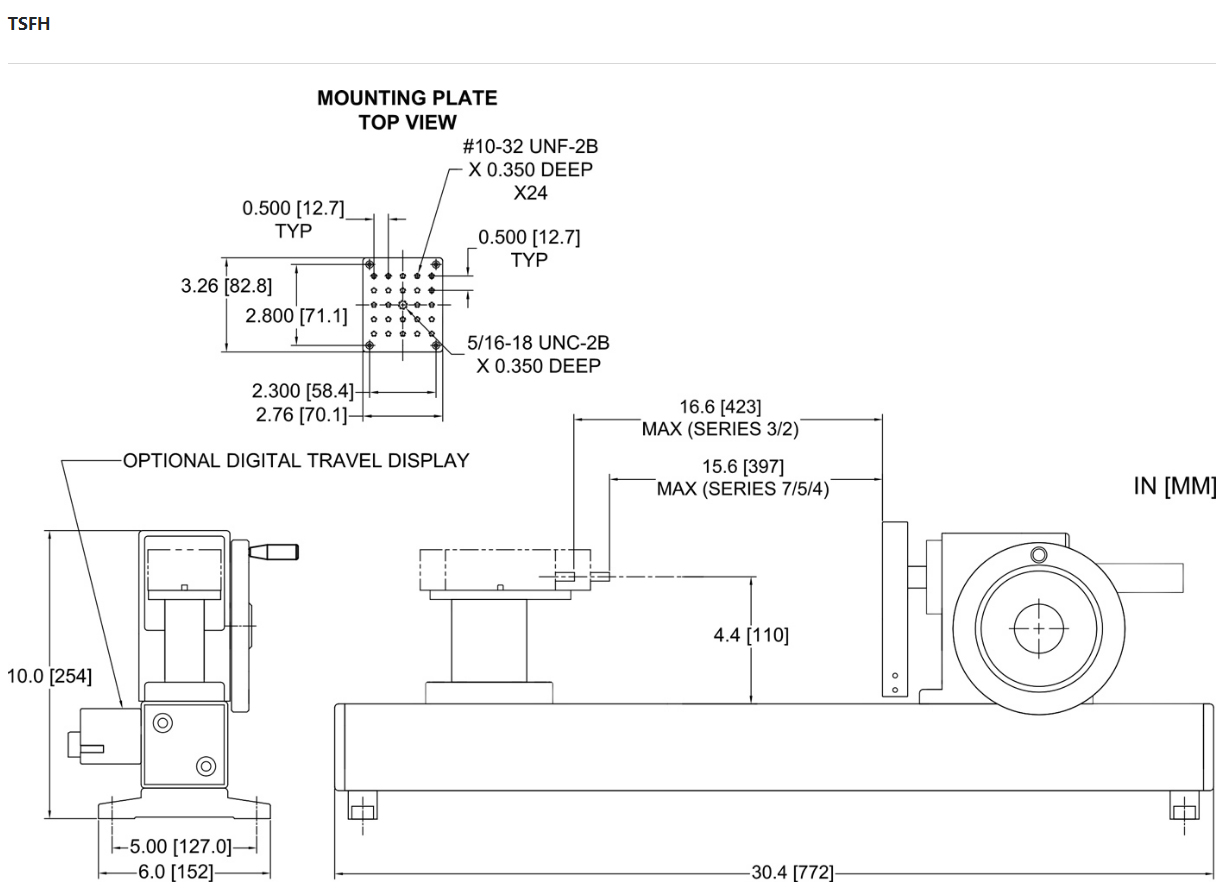

• Loading table with 25 #10-32 UNF holes for fixture mounting
• Smooth hand wheel operation
• Maximum force: 1,000 lbF [5 kN]
• Maximum travel: 4.00" [102 mm]
• Travel rate: 0.013" [0.34 mm]/wheel rev
• Weight: TSFH: 30 lb [13.6 kg]

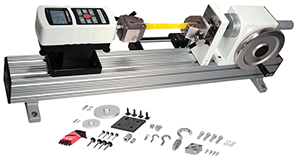

What's Included?

• (1) TSF test stand
• (1) G1009 compression plate, 2” dia.
• (1) G1009-1 compression plate, 3” dia.
• (1) G1028 small hook
• (1) G1030 thread adapter, 5/16-18M to #10-32F
• (1) G1035 large hook
• (1) G1037 coupling, 5/16-18 F/F
• (1) G1038 medium hook
• (1) G1039 coupling, #10-32 F/F
• (1) G1041 thread adapter, 5/16-18M to #1/2-20M
• (1) G1042 extra large hook
• (1) G1044 1/2-20F adapter plate with mounting hardware
• (1) 5/16-18 stud with jam nuts
• (1) #10-32 stud with jam nuts
• (2) Mounting leg with hardware
• (1) Additional column cap with hardware
• (4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
• (4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
• (1) Allen wrench set
