Mark-10 WT-205 Wire Crimp Pull Tester
- Password protection
- Programmable set point indicators
- High-speed 7,000 Hz sampling rate
SKU
WT-205
MPN
WT-205

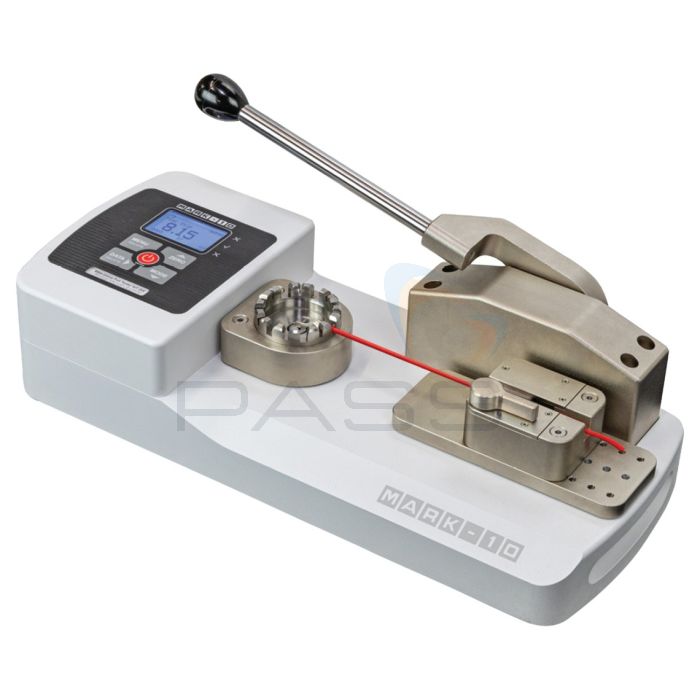

The Mark-10 WT-205 Wire Crimp Pull Tester measures crimp pull forces. It is engineered for quick setup and repeatable results, applying up to 200 lbF (1,000 N) of force through a smooth, ergonomic lever.
This tester has a versatile adjustable terminal fixture that accommodates a wide range of wire diameters (up to AWG 3 / 6.3 mm). A self-tightening wedge grip provides secure clamping of the cable's free end, and the device can handle nearly any insulation type.
The backlit graphic LCD has real-time and peak force readings, pass/fail indicators, and a load bar that alerts users as they approach overload thresholds. It has USB, RS-232, Mitutoyo, and analogue outputs, can store up to 1,000 readings, calculate statistics, and automatically save peak values when a sample breaks, streamlining high-volume testing.
Key Features
- Measures real-time and peak force values
- Ergonomic lever operation produces 200 lbF [1,000 N]
- USB, RS-232, Mitutoyo (Digimatic), and analog outputs
- Automatic output / data storage / zeroing upon sample break helps automate testing processes
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/ fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak force values
- Configurable audio alarms and key tones
- Mounting holes for bench mounting
What's Included?
- Tester
- Removable lever
- USB cable
- Battery
- AC adapter
- Certificate of calibration without data
£2,100.00
£2,520.00 inc vat
Stock Due:
Typically 1-6 Days
Free Tyre Inflator (Spend £1000+)
Find Out More
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Capacity x Resolution: | 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN | |
| Accuracy: | ±0.2% of full scale | |
| Wire gauge range*: | AWG30 - AWG3* | |
| Wire diameter range: | 0.01 - 0.25 in [0.3 - 6.3 mm] | |
| Minimum sample length: | 2.1 in [53.3 mm], excluding termination | |
| Maximum sample elongation: | 1.7 in [43.2 mm] | |
| Power: | AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage. | |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Sampling rate: | 7,000 Hz | |
| Outputs: | USB / RS-232: Configurable up to 115,200 baud. . Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. Set points: Three open drain lines. |
|
| Safe overload: | 150% of full scale (display shows "OVER" at 110% and above) | |
| Weight: | 16.1 lb [7.3 kg] | |
| * Including insulation. To ensure the wire sample will fit into the WT-205, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination. | ||
Document Downloads
Mark-10 WT-205 Wire Crimp Pull Tester Datasheet
Mark-10 WT-205 Wire Crimp Pull Tester User Manual
Mark-10 WT-205/M Wire Crimp Pull Tester Quick Start Guide
