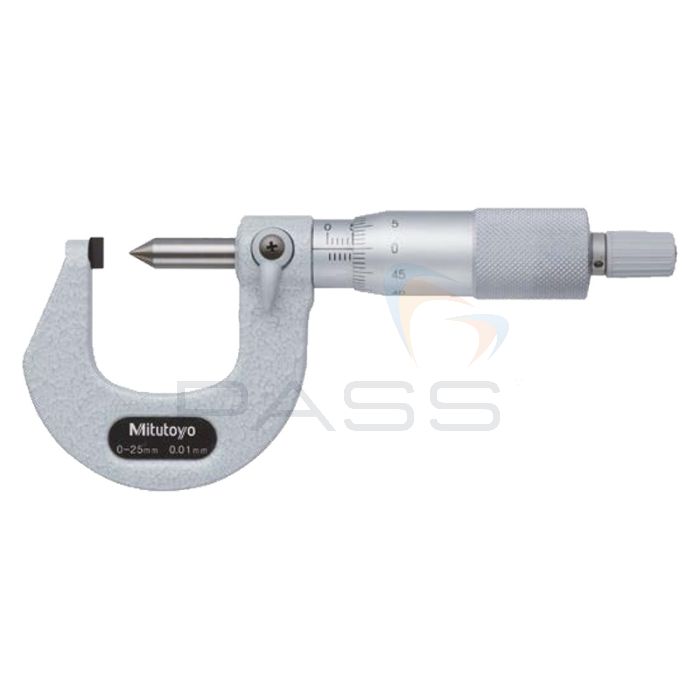

Mitutoyo 112-401 Series 112 Crimp Height Micrometer
Description

SERIES 112 - Crimp Height Micrometers

A Mitutoyo non-digital micrometer with a pointed spindle to enable measurement of the crimp height of electrical contacts. A ratchet stop guarantees repeatable measurement.

  • Measures the height of crimp contacts.
  • Equipped with Ratchet Stop for constant measuring force.
Tech Specs

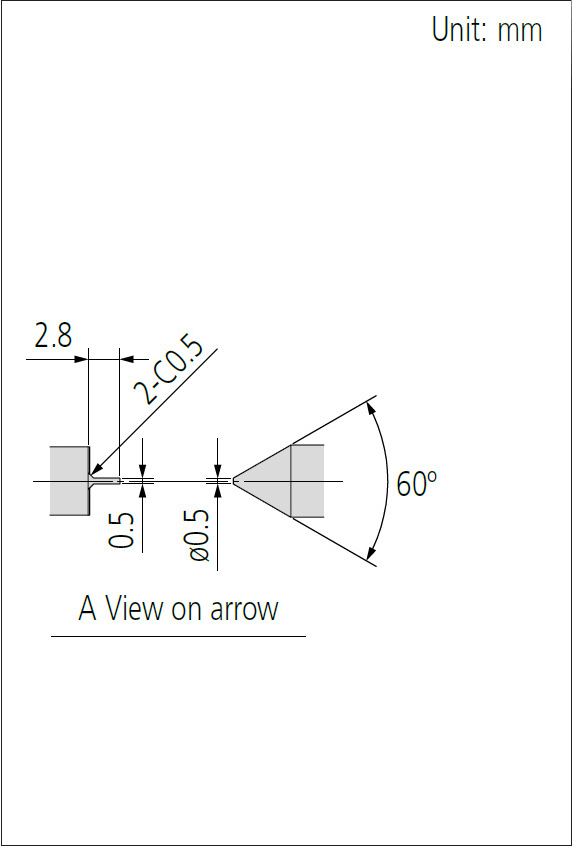

Dimensions

Metric

SKU Range Graduation Max. permissible error JMPE
MIT-112-401 0 - 25 mm 0.01 mm ±3 µm
Digital/Analog Analog
Inch-Metric Metric
Range 0 - 25 mm
Graduation 0.01 mm
Digital Step 0.001 mm
Maximum Permissible Error J MPE ±3 µm
Accuracy ±3 µm
Measuring Face Hardened steel, micro-lap finish
Measuring Spindle
With spindle lock
ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401)
without spindle lock
ø 6.35 mm, spindle pitch 10 mm (342-451-20)
Scale Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force 3 - 8 N
Power Supply 1 battery SR-44
Delivered Including box, 1 battery
Mass 165 g
