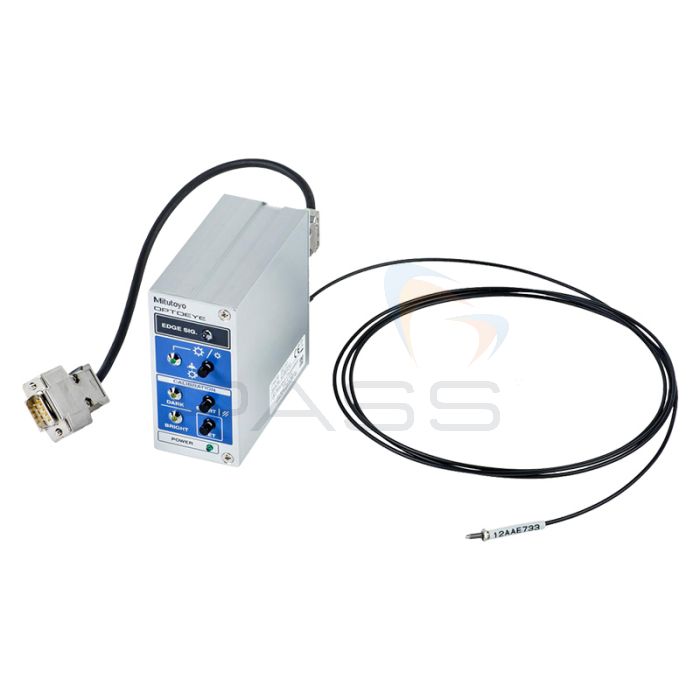

Mitutoyo 332-151 OPTOEYE-200 Image Edge Sensor for Profile Projectors

SERIES 332 - OPTOEYE-200 Image Edge Sensor for Profile Projectors

This edge sensor allows you to make accurate measurements independent of your skill level by automatically detecting edges used in measurements.

• The OPTOEYE-200 Image Edge Sensor eliminates the human error that can occur with visual alignment when using the crosshairs for edge location, thus ensuring speedy, accurate, and consistent measurements, regardless of the operator's skill level.
• Bright and dark buttons allow easy calibration.
• A thin fibre-optic cable for the detector connection allows easy set-up and use without obstructing the operator's vision.
• OPTOEYE is conveniently powered from the QM-Data200 via the connecting cable.
• PJ-H30: You can use the OPTOEYE edge detector on model PJ-H30A (requires adapter plate 12AAG983). The PJ-H30D models have a built-in edge detector.
• PV-5110, PJ-3515F, and PJ-A14: You can use the OPTOEYE edge detector in combination with the QM-Data 200.
• PJ-PLUS: You can use the OPTOEYE edge detector on models 302-801-10/302-802-10 in combination with the QM-Data 200.
• When using the OPTOEYE all projector scales must be connected to QM-Data 200 directly and built-in counters can no longer be used (except PJ-H30D type).
