    Mitutoyo Contact Element Flat, Carbide, Metric - Choice of Model

    Free Guide with £100+ Mitutoyo Orders
    Mitutoyo Contact Element Flat, Carbide, Metric - Choice of Model
    Free Guide with £100+ Mitutoyo Orders
    All Mitutoyo Products
    • Flat point
    • Available in ø2, ø4.3, ø6.5, ø9.5, ø15, ø20, ø6.4, or ø8mm
    • Suitable for Digimatic & Dial Indicators and Linear Gauges
    SKU
    12/13/21AA

    Read More

    View All Indicator Accessories

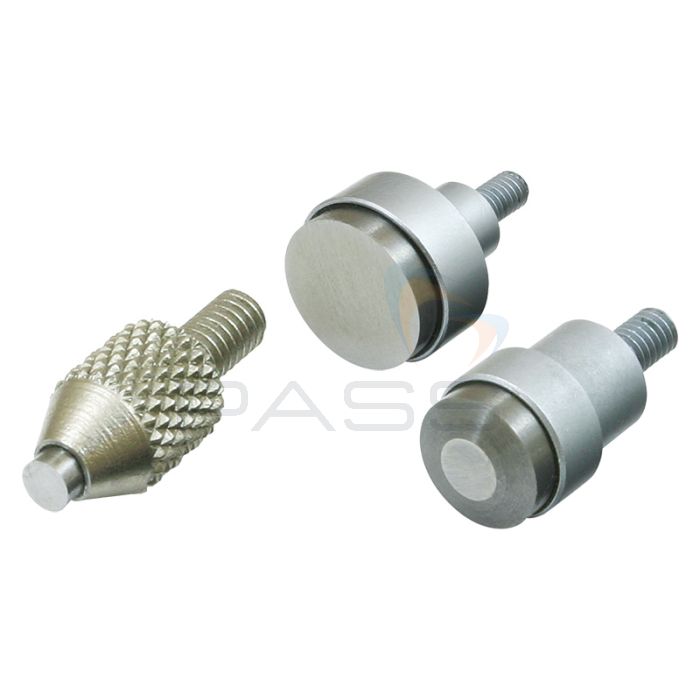

    These carbide Mitutoyo flat point contact points are optimal for use on convex surfaces. Available in ø2, ø4.3, ø6.5, ø9.5, ø15, ø20, ø6.4, or ø8mm. Suitable for Digimatic & Dial Indicators and Linear Gauges.

    Product Range

    • MIT-120056 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø2mm
    • MIT-120041 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø4.3mm
    • MIT-120042 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø6.5mm
    • MIT-120043 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø9.5mm
    • MIT-21AAA345 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø15mm
    • MIT-21AAA346 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø20mm
    • MIT-137255 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø6.4mm
    • MIT-137399 Contact Element Flat, M2.5x0.45, Carbide, Metric, ø8mm
    £17.70
    £21.24 inc vat
    Important Notice
    This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
    Free Guide with £100+ Mitutoyo Orders View 2 Offers
    Available Models Select An Option
    ø2mm MIT-120056 £17.70 Typically 1-2 Weeks ø4.3mm MIT-120041 £46.70 Typically 1-6 Days ø6.5mm MIT-120042 £53.50 Typically 1-6 Days ø9.5mm MIT-120043 £62.50 Typically 1-6 Days ø6.4mm MIT-137255 £77.10 ø8mm MIT-137399 £82.10 ø15mm MIT-21AAA345 £110.00 ø20mm MIT-21AAA346 £128.00
    60 Days Return
    Ask An Expert
    Price Match

    Offers

    Free Guide with £100+ Mitutoyo Orders

    Spend over £100 on Mitutoyo products online and you’ll receive a free Mitutoyo Engineers’ Reference Book. Available for a limited time or while stocks last.
    Free Tyre Inflator (Spend £1000+)

    Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
    Technical Information
    Specification
      MIT-120056 MIT-120056 MIT-120041MIT-120041 MIT-120042MIT-120042 MIT-120043MIT-120043 MIT-21AAA345MIT-21AAA345 MIT-21AAA346MIT-21AAA346 MIT-137255MIT-137255 MIT-137399MIT-137399
    Inch-Metric Metric
    Functions A: M2.5 x 0.45
    Material Carbide
    Flatness 3 µm 5 µm 3 µm
    D Ø 5 mm 5.2 mm 7 mm 10.5 mm 17 mm 22 mm 7 mm 9 mm
    L 8 mm 5 mm 10 mm

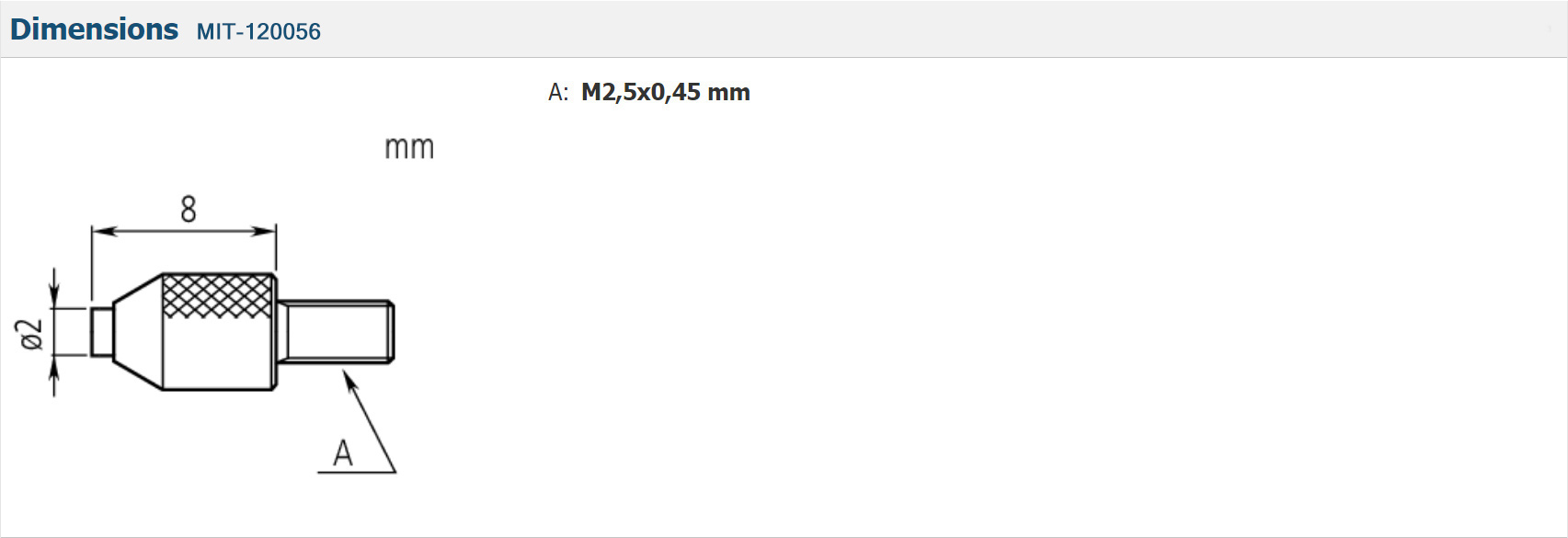

    Mitutoyo MIT-120056 Dimensions
    Mitutoyo MIT-120041 Dimensions
    Mitutoyo MIT-120042 Dimensions
    Mitutoyo MIT-120043 Dimensions

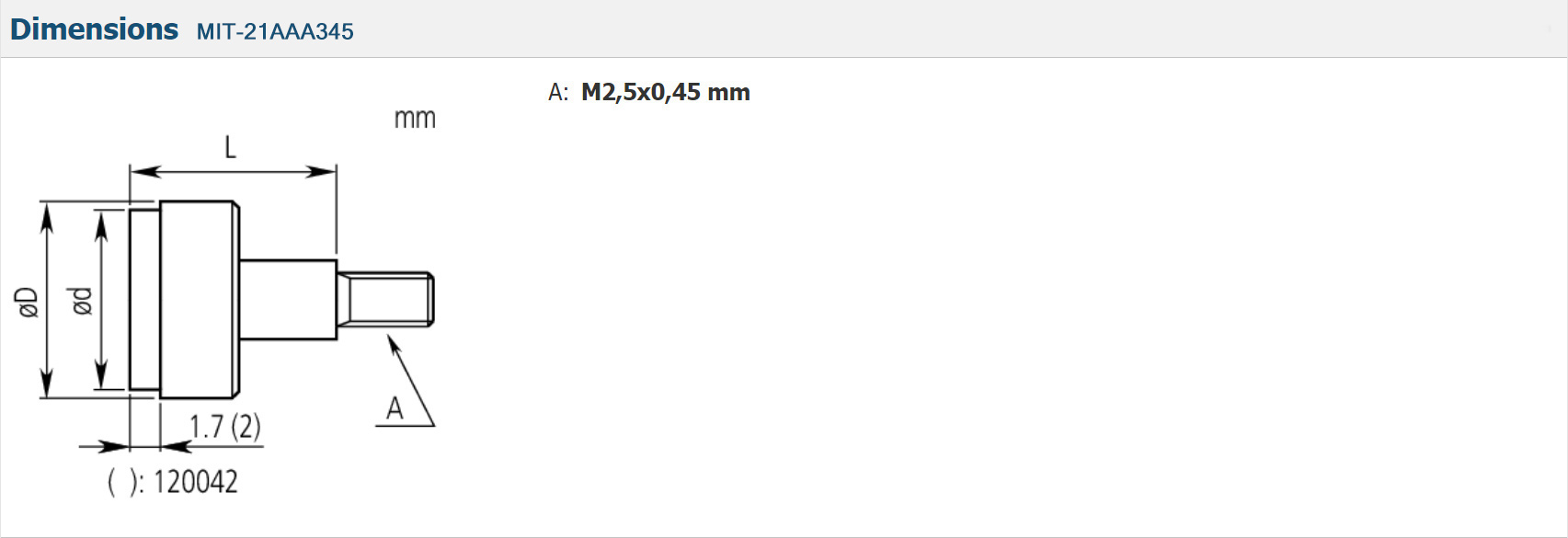

    Mitutoyo MIT-21AAA345 Dimensions
    Mitutoyo MIT-21aaa346 Dimensions

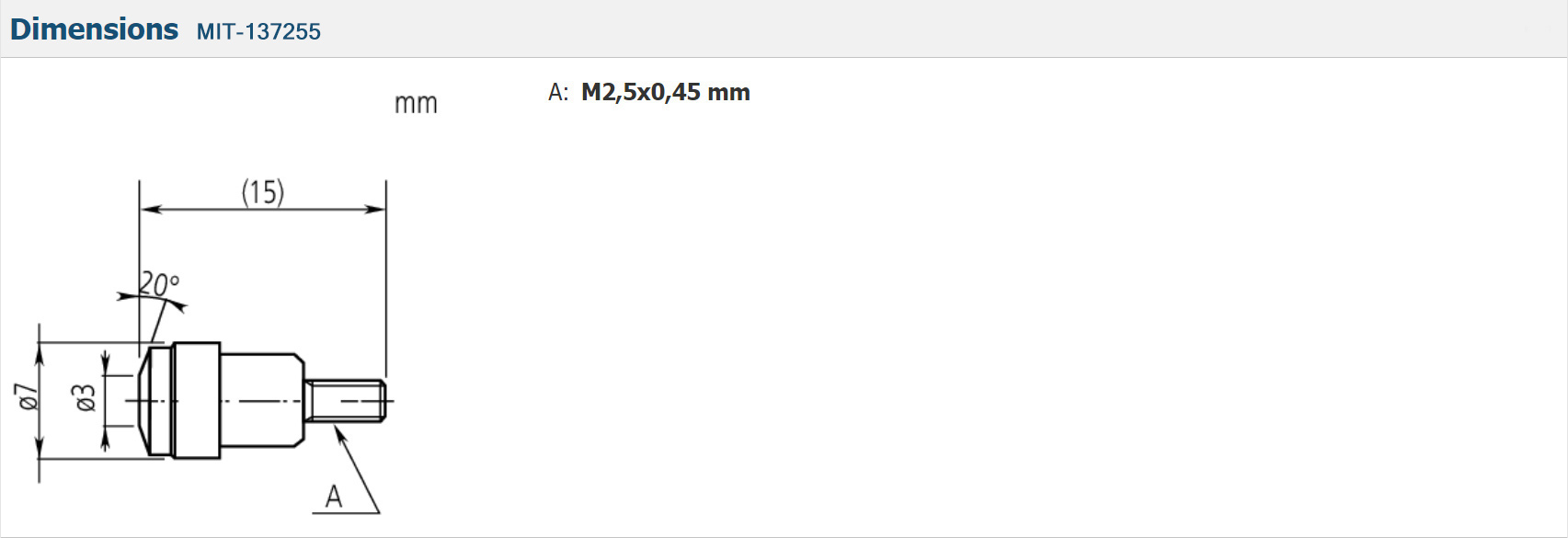

    Mitutoyo MIT-137255 Dimensions

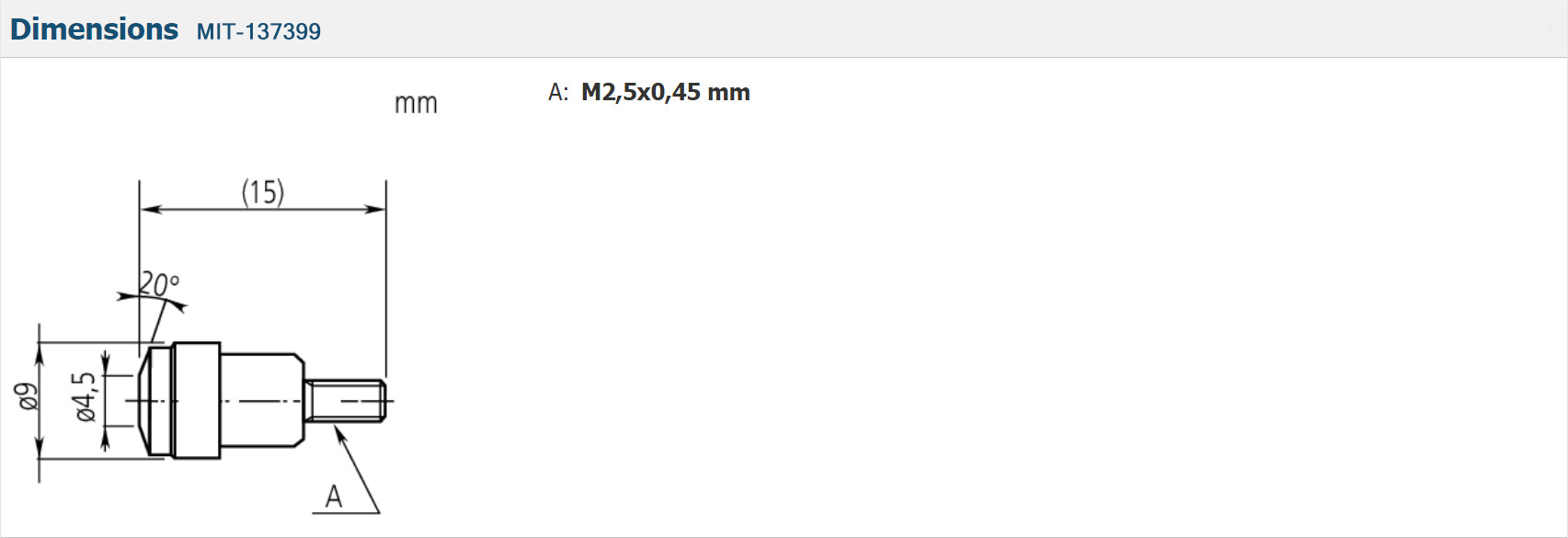

    Mitutoyo MIT-137399 Dimensions
