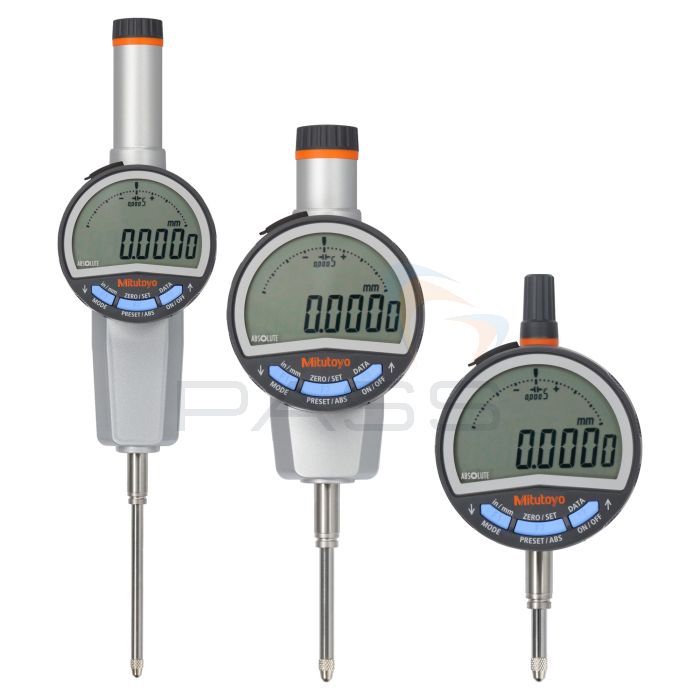

Mitutoyo Digital Indicator ID-C, Flat Back Plate

These Mitutoyo Digital Indicators from the ID-C series have a flat back plate design and provide a versatile and reliable measurement solution with both inch and metric capabilities. They have an ABSOLUTE sensor that eliminates the need for origin resetting when powered on.

With large dual displays—both digital and analogue—these indicators offer excellent visibility and a 330° rotatable screen for optimal viewing angles. They are multifunctional and support bidirectional communication through the Digimatic S1 interface, allowing for convenient parameter settings from a computer.

Precision is enriched with a minimum digital step size of 0.5 µm, and the indicators also include capabilities like peak detection, simple calculations, function lock, a calibration schedule warning and a GO/±NG judgment. They are available in 0.5", 1", or 2" ranges.

Key Features

• Bidirectional communication, e.g. perform parameter setting from a PC (Digimatic S 1 interface) is possible.
• The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
• Excellent visibility with a large digital/analogue display.
• Model with 0,5 µm digital step is available.
• Measurements such as simple calculation and peak detection are possible.
• Equipped with a calibration schedule warning function.
• GO/±NG judgement is performed by setting the upper and lower tolerances.
• Display 330° rotatable.
• A function lock protects the display against unauthorised use.

What's Included?

• Choice of Indicator
• CR2032 battery
• Battery lid opener
• Certificate of inspection

Product Range

• Mitutoyo 543-701B Digital Indicator ID-C Inch/Metric, Flat Back Plate, 0.5"
• Mitutoyo 543-721B Digital Indicator ID-C Inch/Metric, Flat Back Plate, 1"
• Mitutoyo 543-731B Digital Indicator ID-C Inch/Metric, Flat Back Plate, 2"
