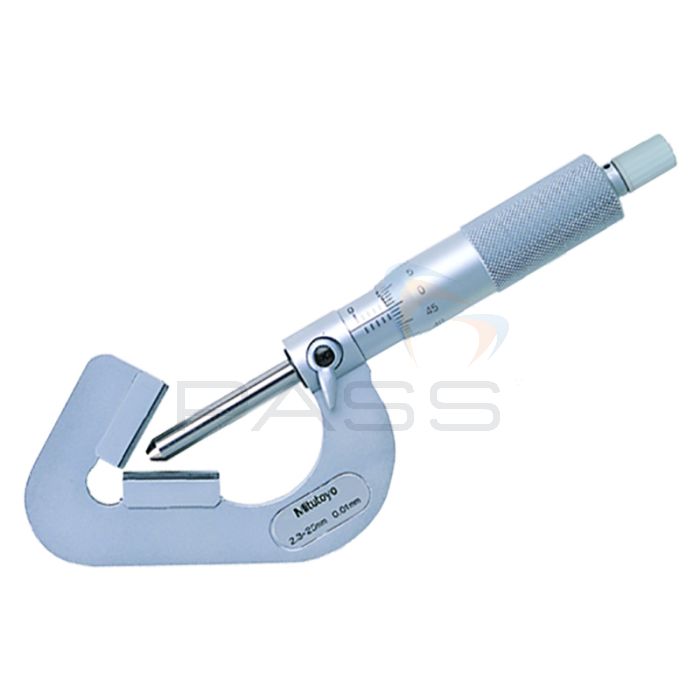

Mitutoyo Series 114 Three-Flute V-Anvil Micrometer (1-15 mm - 70-85 mm) - Choice of Model
Description
SERIES 114 - Three-Flute V-Anvil Micrometer

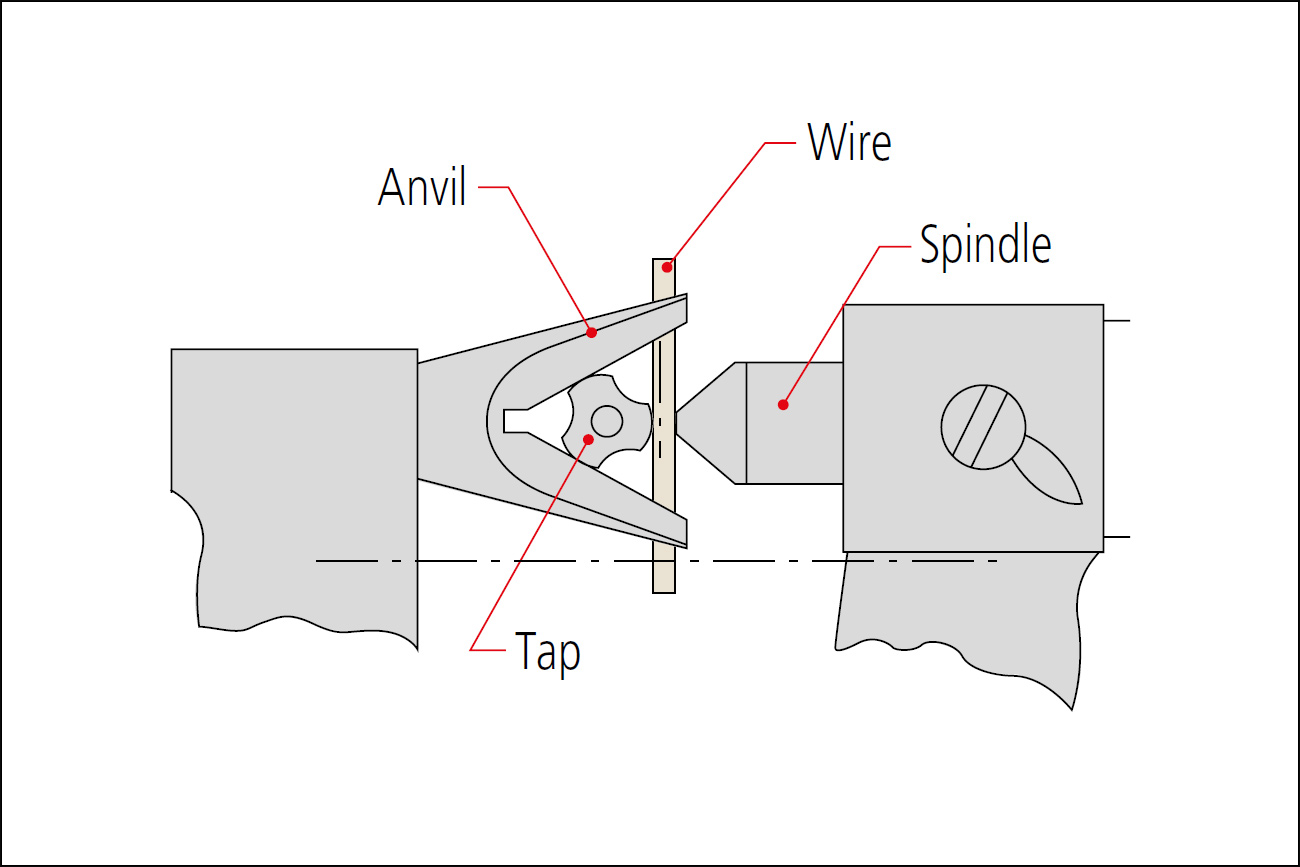

- Can measure the pitch diameter of screw threads.
- Equipped with Ratchet Stop for constant measuring force.
- Measures the outside diameter of cutting tools (such as taps, reamers, and end mills) which have three flutes.
Tech Specs

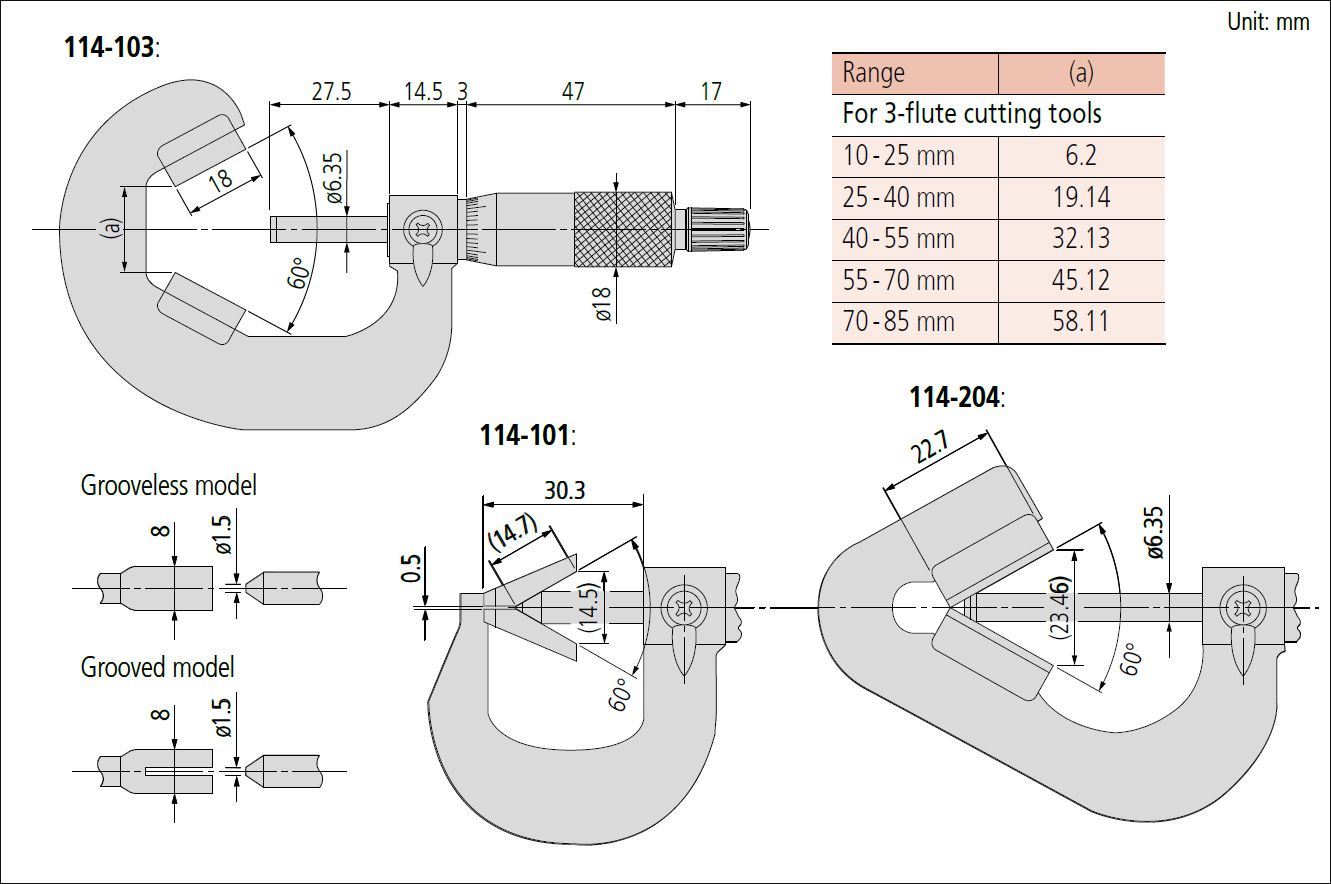

Dimensions
Metric
| SKU | Range | Graduation | Max. permissible error JMPE | Remarks | Anvil | Carbide Tip |
|---|---|---|---|---|---|---|
| MIT-114-204 | 2.3 - 25 mm | 0.01 mm | ±4 µm | — | 60° | Anvil and Spindle |
| MIT-114-101 | 1 - 15 mm | Grooved | Spindle | |||
| MIT-114-161 | — | |||||
| MIT-114-102 | 10 - 25 mm | Grooved | ||||
| MIT-114-162 | — | |||||
| MIT-114-103 | 25 - 40 mm | ±5 µm | ||||
| MIT-114-104 | 40 - 55 mm | ±6 µm | ||||
| MIT-114-105 | 55 - 70 mm | |||||
| MIT-114-106 | 70 - 85 mm | ±7 µm |
Inch
| SKU | Range | Graduation | Max. permissible error JMPE | Remarks | Anvil | Carbide Tip |
|---|---|---|---|---|---|---|
| MIT-114-163 | .05 - .6" | .0001" | ±.0002" | — | 60° | Spindle |
| MIT-114-113 | 1 - 1.6" | ±.00025" |
