Mitutoyo Series 115 Tube Micrometers - Choice of Model
Description

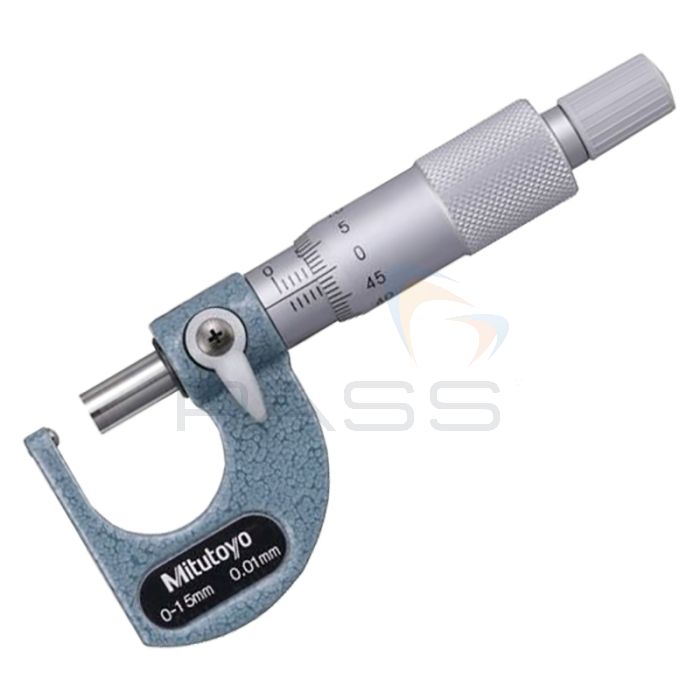

SERIES 115 - Tube Micrometers
- Equipped with Ratchet Stop for constant measuring force.
- Measuring faces: carbide (115-101: only the spindle is carbide tipped).
- Designed to measure workpieces with concave-convex surfaces such as the wall thickness of tubes and pipes.
Technical Data
- Flatness: .000024" (0.6 µm)
Tech Specs

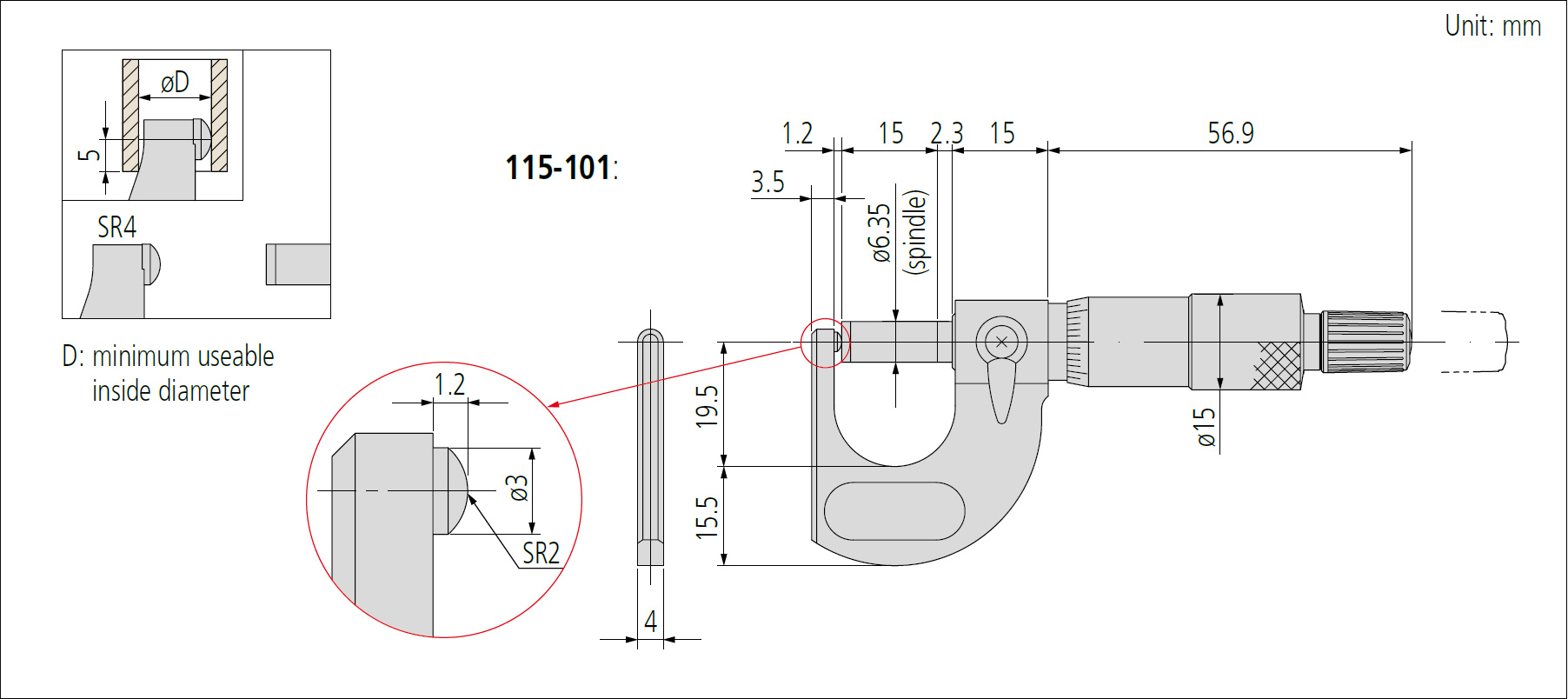

Dimensions
Metric
| SKU | Range | Graduation | Max. permissible error JMPE | D |
|---|---|---|---|---|
| MIT-115-101 | 0 - 15 mm | 0.01 mm | ±3 µm | ø5.5 mm |
| MIT-115-115 | 0 - 25 mm | ø10 mm | ||
| MIT-115-116 | 25 - 50 mm | ø11 mm | ||
| MIT-115-117 | 50 - 75 mm | ø17 mm | ||
| MIT-115-118 | 75 - 100 mm | ±4 µm | ø18 mm |
Inch
| SKU | Range | Graduation | Max. permissible error JMPE | D |
|---|---|---|---|---|
| MIT-115-153 | 0 - 1" | .0001" | ±.00015" | ø40" |
0 Reviews
Overall Rating
Additional Information
| SKU | 115-1XX |
|---|
