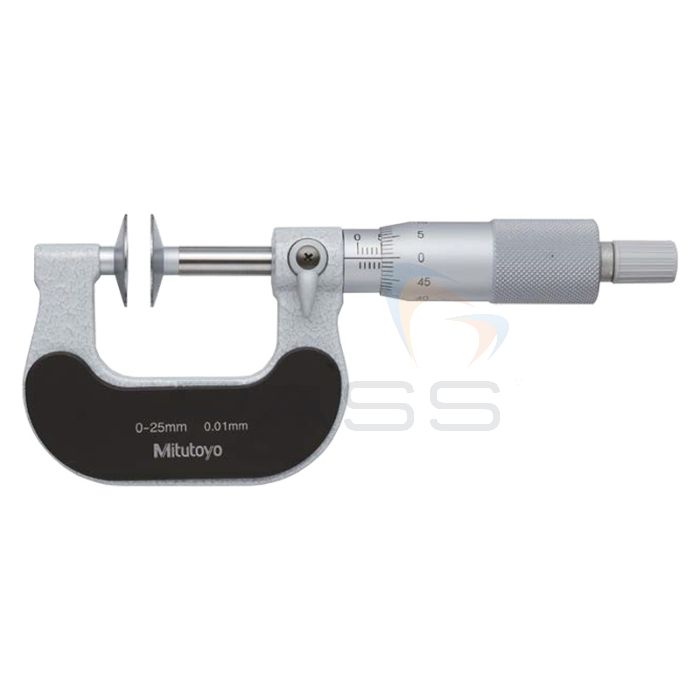

SERIES 123 - Disc Micrometer
- Equipped with Ratchet Stop for constant measuring force.
- Supplied with a setting standard (except for 0 - 25 mm / 0 - 1" measuring range).

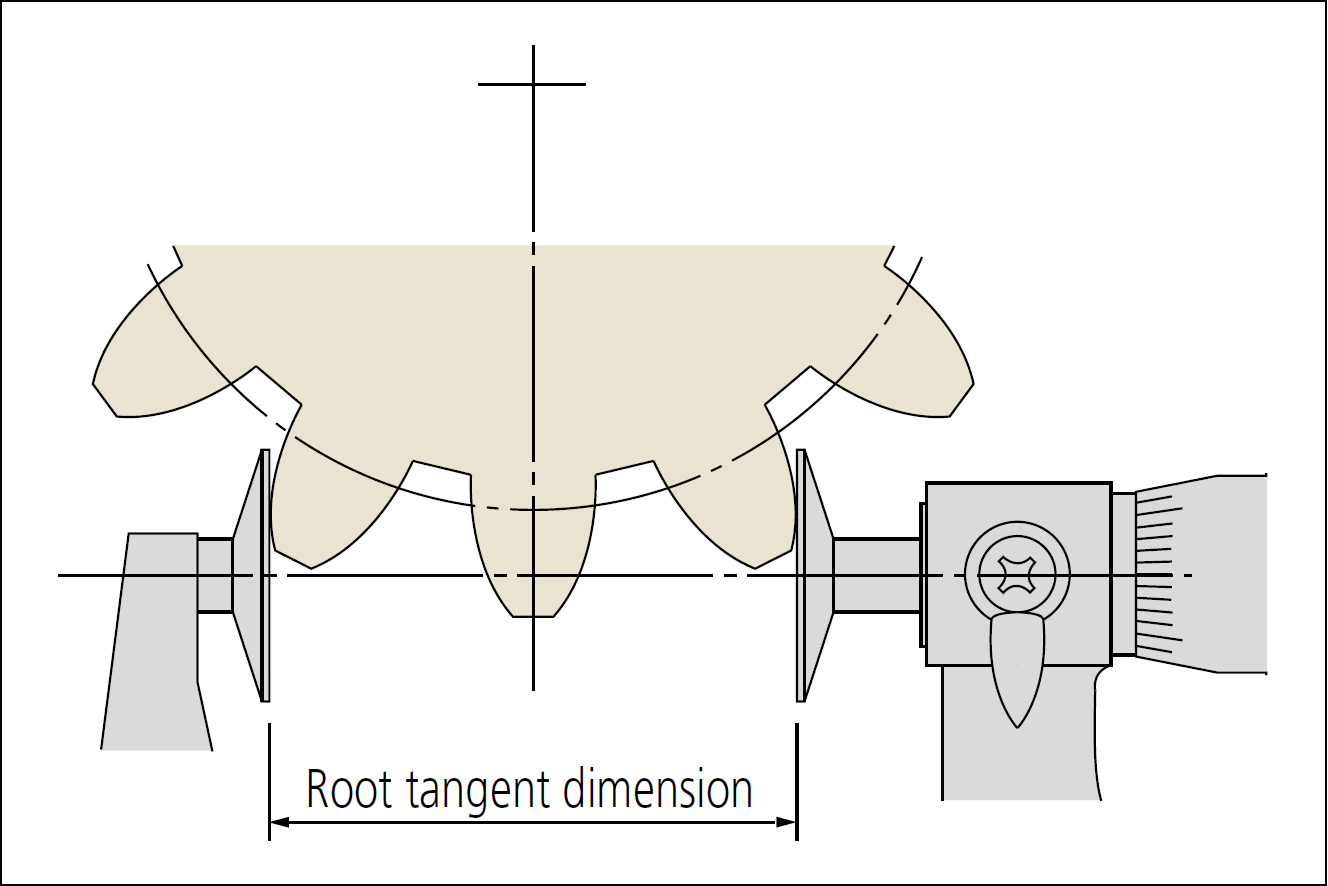

- Can be used for making root tangent measurements on spur gears and helical gears.
Technical Data
- Flatness: 1 µm / .00004" for models up to 100 mm / 4", 1.6 µm / .000063" for models over 100 mm / 4"
- Parallelism: 4 µm / .0002" for models up to 50 mm / 2", 6 µm / .0003" for models up to 100 mm / 4"
- *R = max. range (mm).
- Note: Fractions rounded up.
Tech Specs

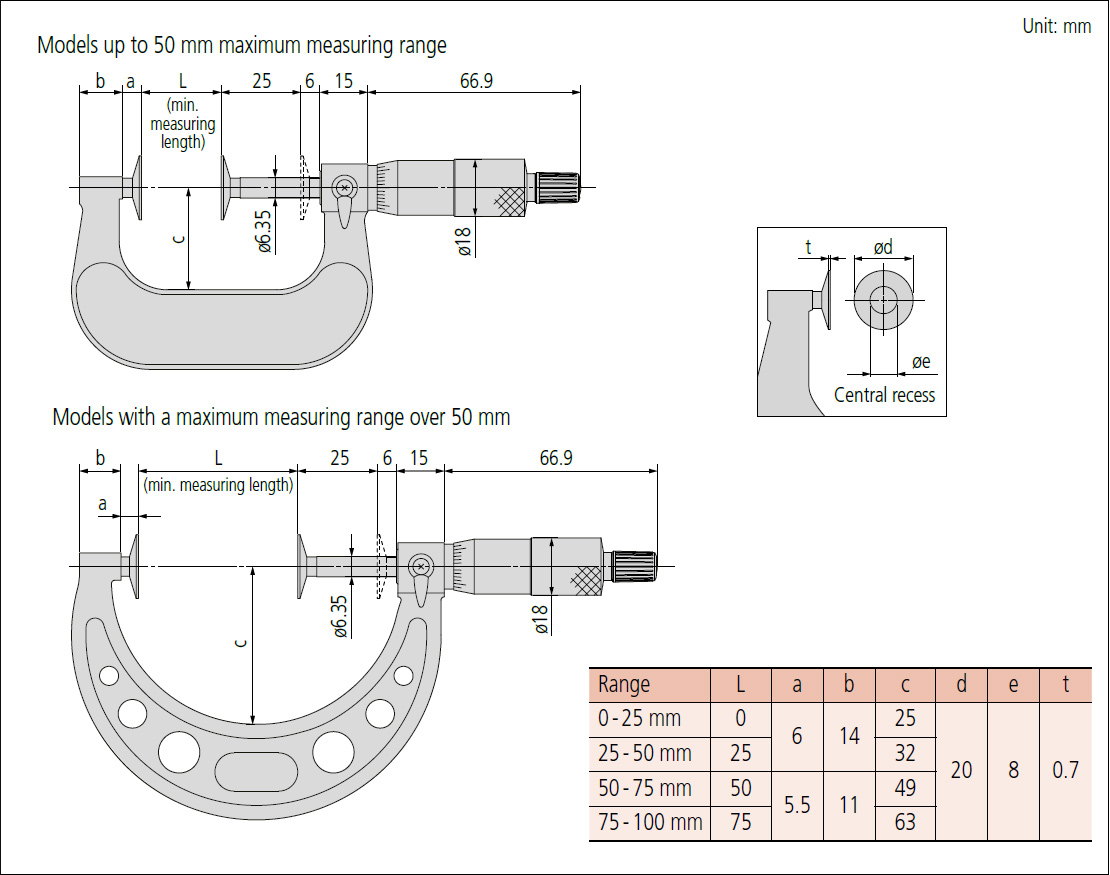

Dimensions
Metric
| SKU | Range | Graduation | Max. permissible error JMPE | Anvil | Measurable Module |
|---|---|---|---|---|---|
| MIT-123-101 | 0 - 25 mm | 0.01 mm | ±4 µm | ø20 mm | 0.5 - 6 |
| MIT-123-102 | 25 - 50 mm | ||||
| MIT-123-103 | 50 - 75 mm | ±6 µm | |||
| MIT-123-104 | 75 - 100 mm |
Inch
| SKU | Range | Graduation | Max. permissible error JMPE | Anvil | Measurable Module |
|---|---|---|---|---|---|
| MIT-123-125 | 0 - 1" | .001" | ±.0002" | ø.787" | 0.5 - 6 |
| MIT-123-126 | 1 - 2" | ||||
| MIT-123-127 | 2 - 3" | ±.0003" | |||
| MIT-123-128 | 3 - 4" |
