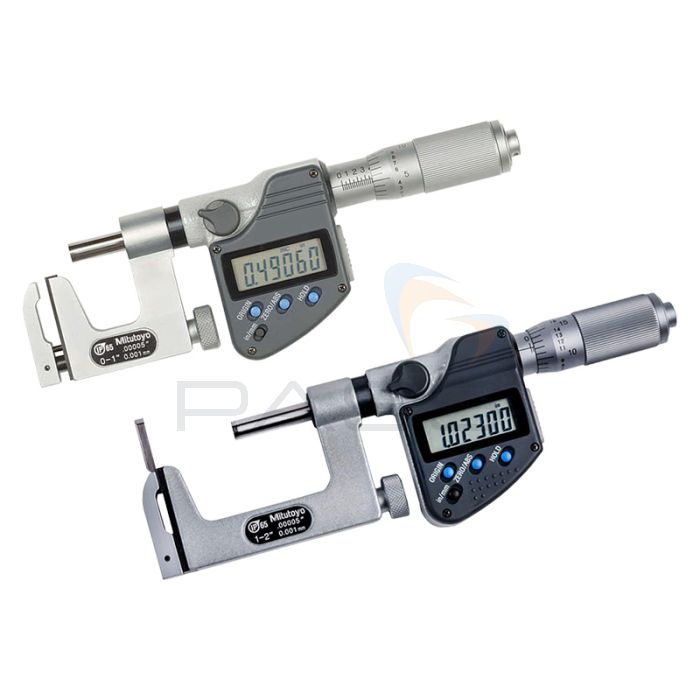

Mitutoyo Series 317 Uni-Mike Interchangeable Anvil Micrometers - Choice of 0-1" or 1-2"
- Interchangeable anvils
- IP65 water/dust protection

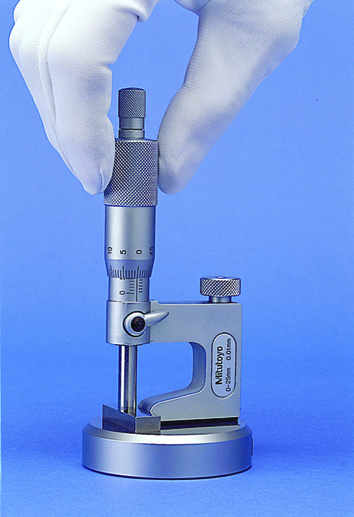

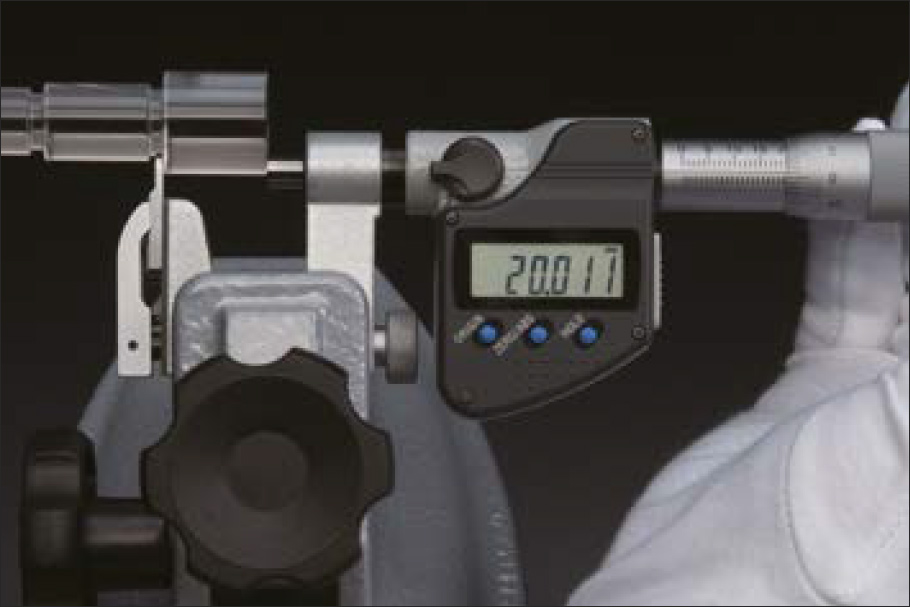

- Suitable for measuring tubing thickness, shoulder-edge distance, rivet head height, etc
SKU
317-35X-30
SERIES 317 - Uni-Mike Interchangeable Anvil Micrometers
These Digimatic Micrometer Interchangeable Anvil Types let you measure a range of different features.
- IP65 water/dust protection.
- Measures tubing thickness, shoulder-edge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil).
Technical Data
- Flatness
- Spindle face: 0.6 µm
- Anvil face: 2 µm
- Parallelism: 3 µm
- Battery: SR44 (1 pc), 938882: 317 series
Offers
Free Book with £100+ Mitutoyo Orders
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
Inch/Metric
| SKU | Range | Resolution | Max. permissible error JMPE | Parallelism |
|---|---|---|---|---|
| MIT-317-351-30 | 0 - 1" (0 - 25.4 mm) | 0.001 mm (.00005") | ±4 µm (±.0002") | .00012" (3 µm) |
| MIT-317-352-30 | 1 - 2" (25.4 - 50.8 mm) |
| MIT-317-351-30 | MIT-317-352-30 | |
|---|---|---|
| Digital/Analog | Digital | |
| Inch-Metric | Inch/Metric | |
| Range | 0 - 1 " | 1 - 2 " |
| Digital Step | 0.00005"/0.001 mm | |
| Spindle Feed Error | 0.00015 inch | |
| Flatness | 0.000024" (spindle), 0.00008" (anvil) | |
| Parallelism | 0.00012" | |
| Display | LCD, character height 7.5 mm | |
| Measuring Face | Carbide tipped, micro-lap finish spindle and hardened steel anvil | |
| Measuring Spindle | With spindle lock, ø6.35 mm, spindle pitch 0.5 mm | |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm | |
| Power Supply | 1 battery SR-44 | |
| Battery Life | Approx. 2.4 years | |
| Content of Set | Anvils 201217 & 201216 | Anvils 201379 & 201216 |
| Delivered | Including box, setting standard (from 25 mm upward), key, 1 battery, anvils | |
| ABS / INC (INC ZERO) | Yes | |
| Auto Power OFF after 20 min. non-use | Yes | |
| Function Lock | Yes | |
| HOLD | Yes | |
| Mass | 340 g | 365 g |
