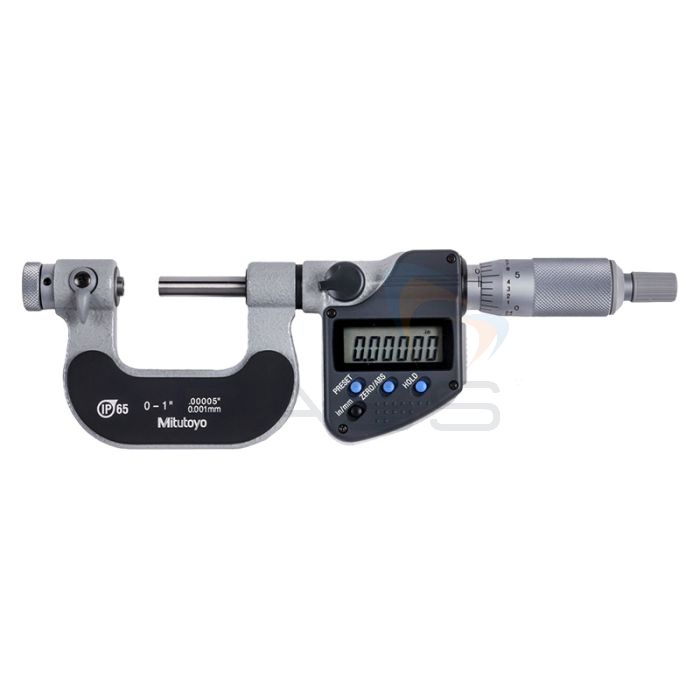

SERIES 326 - Digimatic Interchangeable Anvil Screw Thread Micrometer
- Interchangeable anvils / spindle tips are optional.
- Equipped with Ratchet Stop for constant measuring force.
- Direct reading of screw pitch diameter (no need for calculation).
- Anvils and spindle tips are interchangeable in matching pairs to enable measurement of Metric/Unified or Whitworth threads.
Technical Data
- Spindle feed error: .00015" (3 µm)
- Battery: SR44 (2 pcs) 938882
Functions
Origin Point Setting (ABS measurement system)
Resets the ABS origin at the current spindle position to the minimum value of the measuring range and switches to ABS mode.
Zero-Setting (INC measurement system)
A brief press on the ZERO/ABS button sets the display to zero at the current spindle position and switches to the incremental (INC) measuring mode. A longer press resets to the ABS measuring mode.
Hold
Pressing the HOLD button freezes the current value in the display. This function is useful for preserving a measurement in situations of poor visibility where the instrument must be moved away from the workpiece before the reading can be recorded.
Auto Power Off
The reading on the LCD disappears after this instrument is idle for about 20 minutes, but the reading and measurement modes are retained. Turning the spindle causes the reading to reappear.
Data Output
Models equipped with this function have an output port for transferring measurement data to a Statistical Process Control (SPC) system.
Error Alarm
In the unlikely event of a display overflow or calculation error, an error message is displayed and measurement stops. Measurement cannot continue until the error is corrected. Also, if the battery voltage drops below a certain point, the battery indicator will turn on before measurement becomes impossible, warning the user that the battery needs to be replaced.
Dimensions
Inch/Metric
SKU | Range | Resolution |
---|---|---|
MIT-326-351-30 | 0 - 1" (0 - 25.4 mm) | .00005" (0.001 mm) |
MIT-326-352-30 | 1 - 2" (25.4 - 50.8 mm) | |
MIT-326-353-30 | 2 - 3" (50.8 - 76.2 mm) | |
MIT-326-354-30 | 3 - 4" (76.2 - 101.6 mm) |
Note: A matching setting standard is supplied with each model (except for the 0 - 25 mm measuring range). The setting standard is for metric threads (unified) 60°.
SKU | 326-35X-30 |
---|
