Description

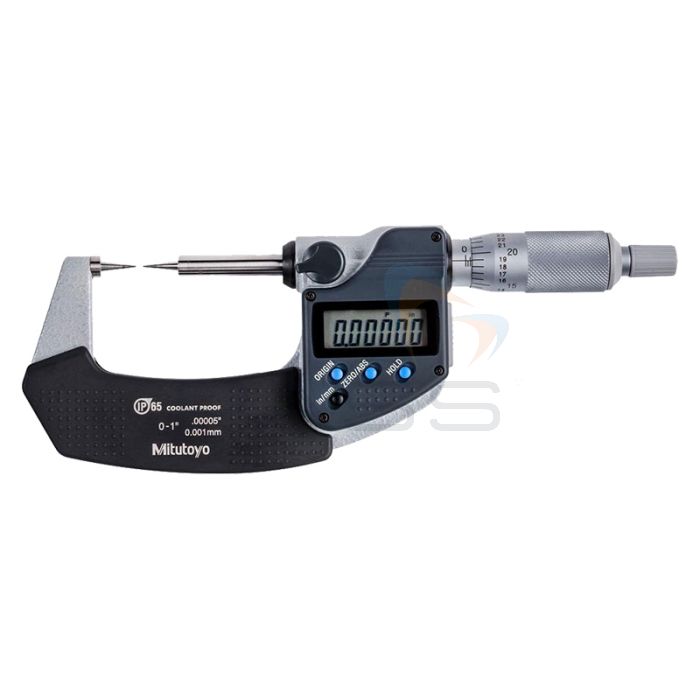

SERIES 342 - Digimatic Point Micrometer
- Equipped with Ratchet Stop for constant measuring force.
- The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.

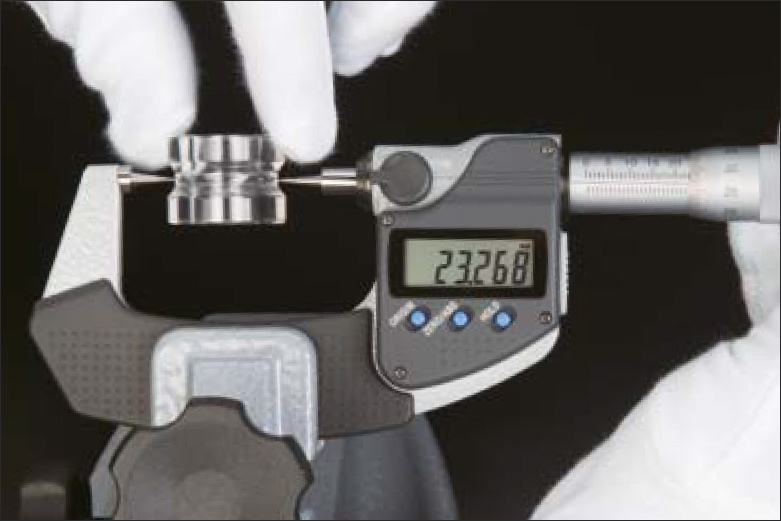

- Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
Technical Data
Tech Specs

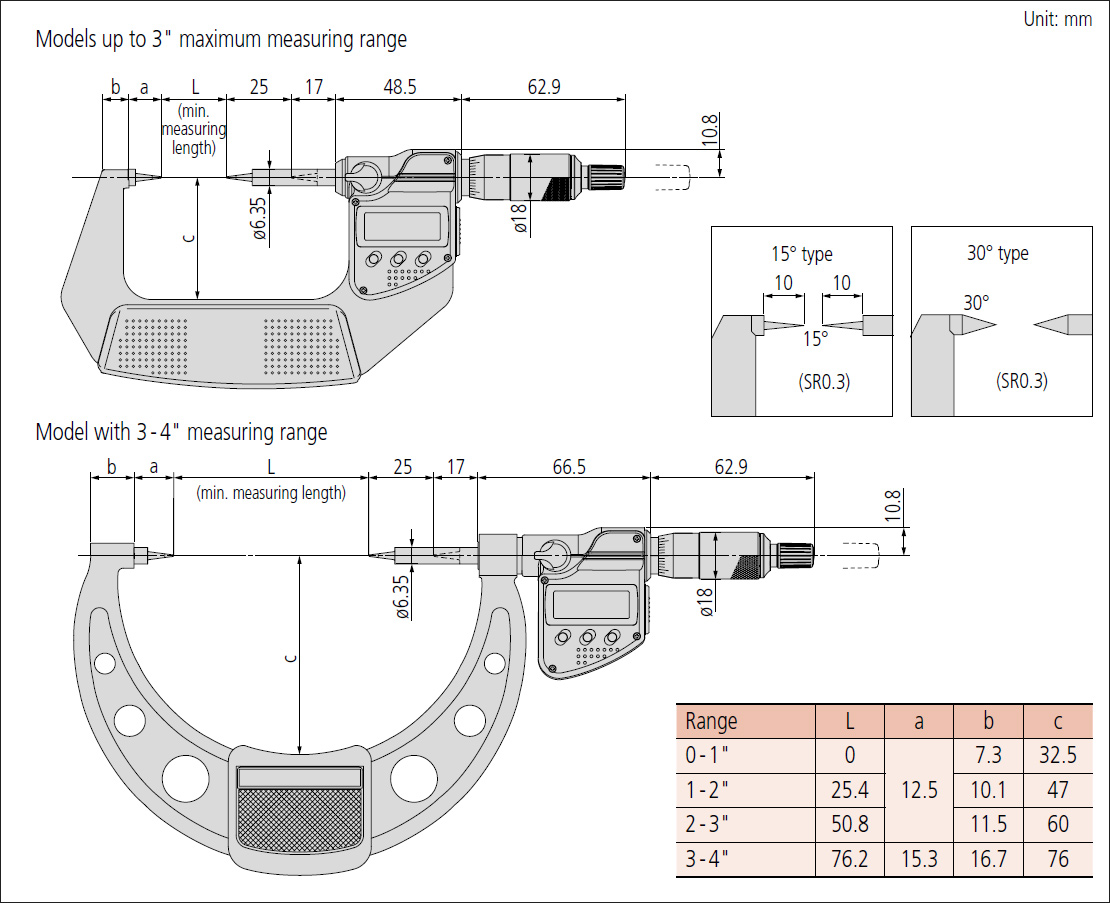

Dimensions
Inch/Metric
SKU | Range | Resolution | Max. permissible error JMPE | Point |
---|---|---|---|---|
MIT-342-351-30 | 0 - 1" (0 - 25.4 mm) | .00005" (0.001 mm) | ±.0001" (±2 µm) | 15° |
MIT-342-352-30 | 1 - 2" (25.4 - 50.8 mm) | |||
MIT-342-353-30 | 2 - 3" (50.8 - 76.2 mm) | |||
MIT-342-354-30 | 3 - 4" (76.2 - 101.6 mm) | ±.00015" (±3 µm) | ||
MIT-342-361-30 | 0 - 1" (0 - 25.4 mm) | ±.0001" (±2 µm) | 30° | |
MIT-342-362-30 | 1 - 2" (25.4 - 50.8 mm) | |||
MIT-342-363-30 | 2 - 3" (50.8 - 76.2 mm) | |||
MIT-342-364-30 | 3 - 4" (76.2 - 101.6 mm) | ±.00015" (±3 µm) |
Accessories
Accessories related to this product:
0 Reviews
Overall Rating
Additional Information
SKU | 342-35/6X-30 |
---|
