Description

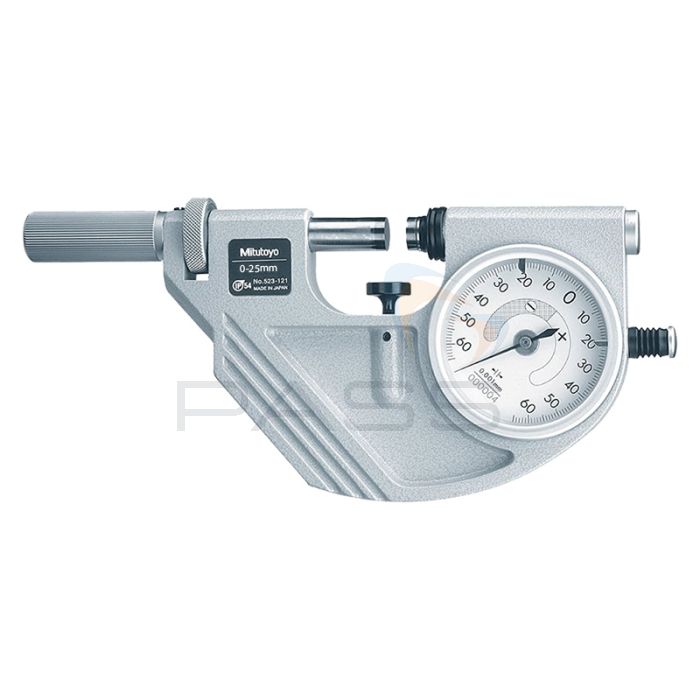

SERIES 523 - Dial Snap Meter
- Measuring faces: carbide.
- Water-resistant to protection level IP54.
- The indicator scale is large and easy to read.
- Suited to the measurement of mass-produced parts.
- Equipped with an elevating workpiece stop as standard.
- Hard-coated crystal: enhanced oil and scratch resistance.
- Easily settable adjustable limit markers for GO/NO-GO testing.
- Greatly improved accuracy: indication error and graduation of 1 µm.

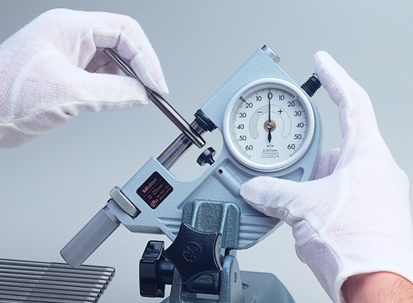

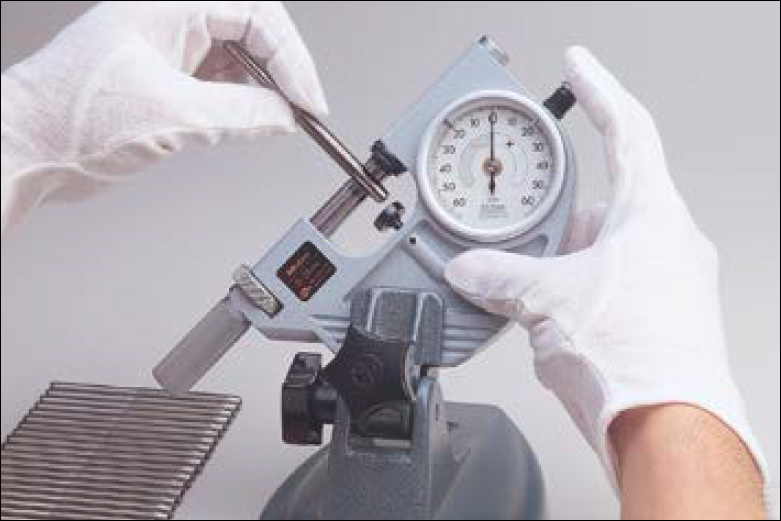

- Designed for measurement using a stand to enable a more stable measurement.
Technical Data
- Indicator
- Indicating range: ±0.06 mm / ±.0023"
- Repeatability of indication:: 0.4 µm / .00002"
- Dial indication accuracy: 1 µm / .00005"
- Flatness: 0.3 µm / .000012"
Tech Specs

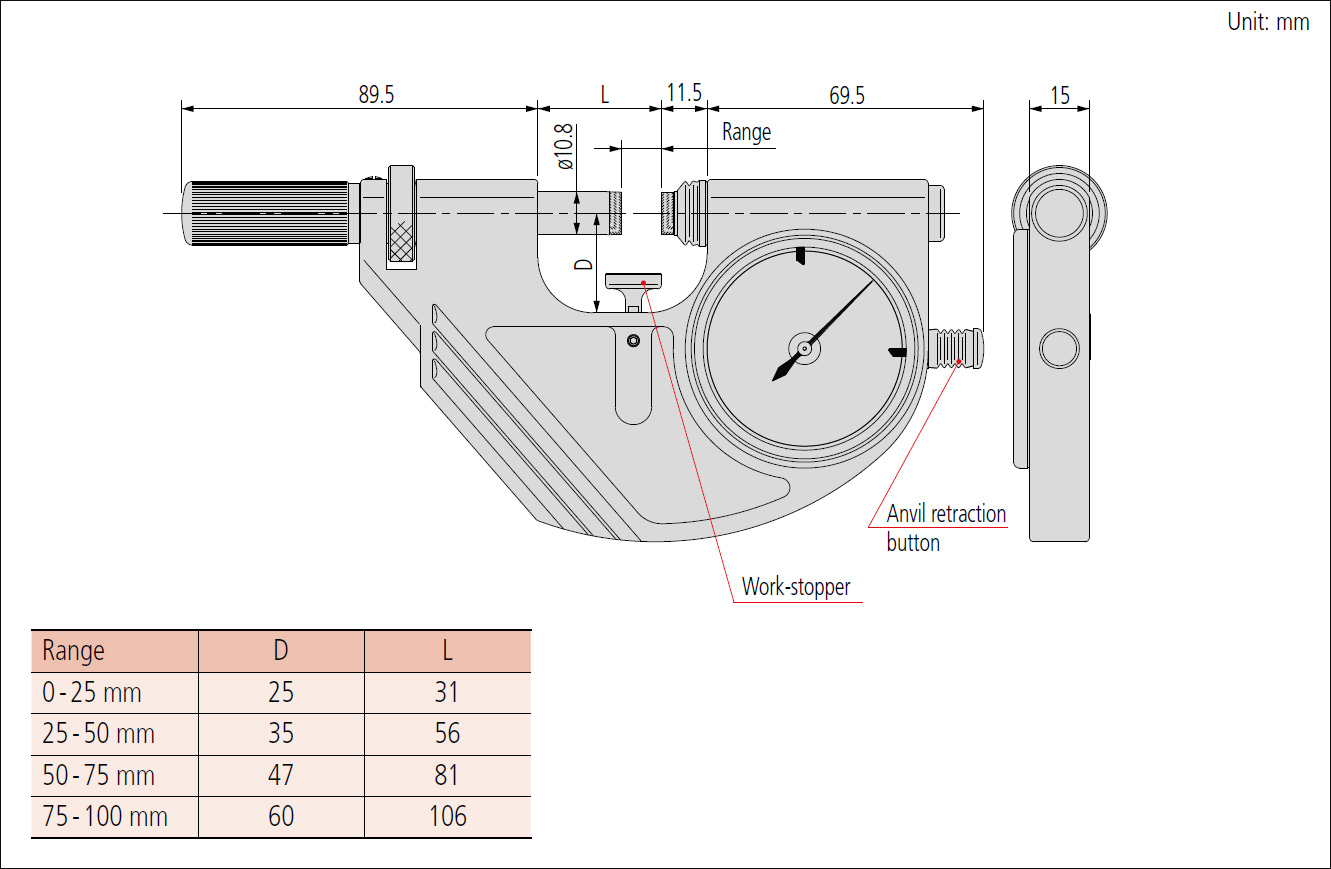

Dimensions
Metric
SKU | Range | Parallelism | Dial Graduation | Measuring Force |
---|---|---|---|---|
MIT-523-121 | 0 - 25 mm | 0.6 µm | 0.001 mm | 5 - 10 N |
MIT-523-122 | 25 - 50 mm | |||
MIT-523-123 | 50 - 75 mm | 1.0 µm | ||
MIT-523-124 | 75 - 100 mm |
Inch
SKU | Range | Parallelism | Dial Graduation | Measuring Force |
---|---|---|---|---|
MIT-523-131 | 0 - 1" | .000024" | .00005" | 5 - 10 N |
MIT-523-132 | 1 - 2" | |||
MIT-523-133 | 2 - 3" | .00004" | ||
MIT-523-134 | 3 - 4" |
0 Reviews
Overall Rating
Additional Information
SKU | 523-12X/13X |
---|
