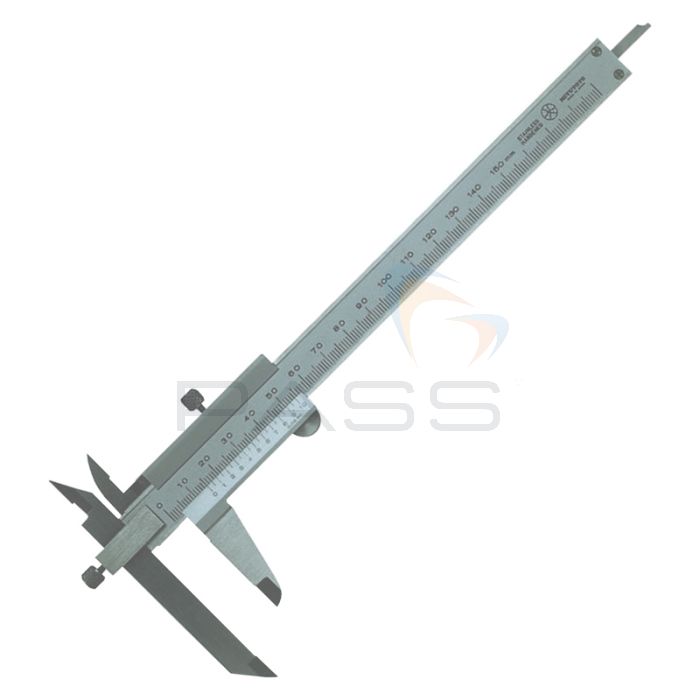

Mitutoyo Series 536 Vernier Offset Jaw Caliper: 0-300mm (Grad: 0.05mm)
Description
SERIES 536 - Offset Jaw Caliper
- The beam-mounted jaw can be adjusted to facilitate measurement of stepped sections and hard-to-get-at workpiece features.
Tech Specs

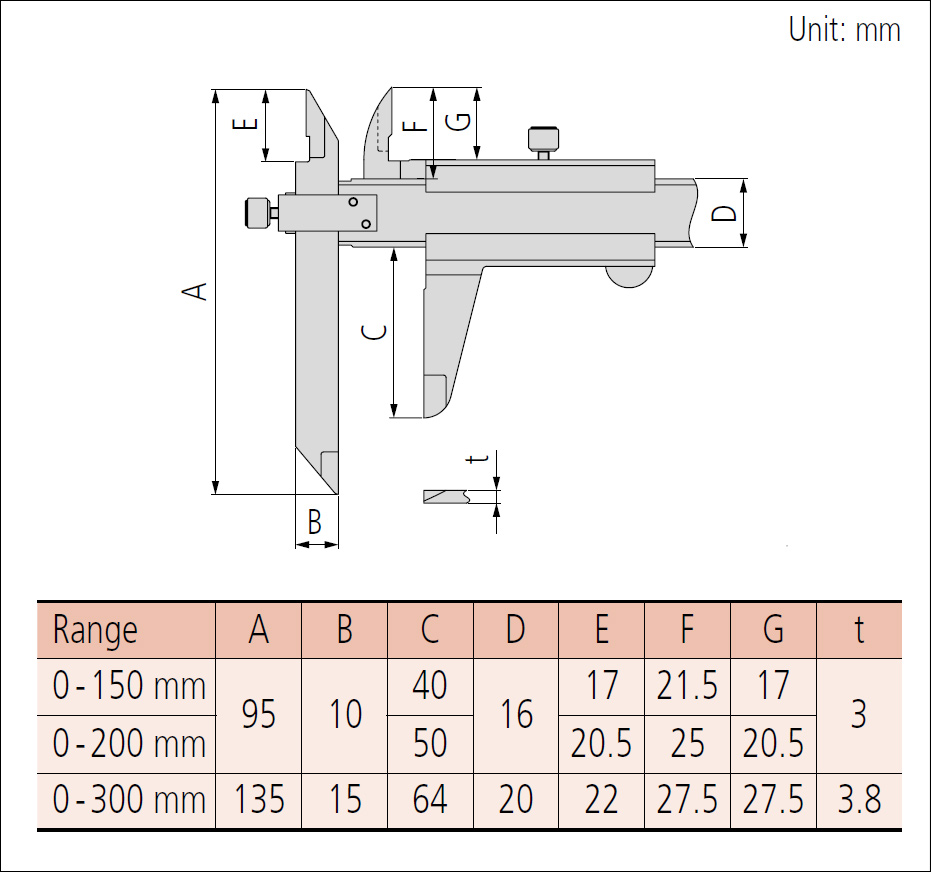

Dimensions
Metric
Vernier Type
| SKU | Range | Graduation | Max. permissible error | |
|---|---|---|---|---|
| EMPE | SMPE | |||
| MIT-536-101 | 0 - 150 mm | 0.05 mm | ±0.05 mm | ±0.07 mm |
| MIT-536-102 | 0 - 200 mm | |||
| MIT-536-103 | 0 - 300 mm | ±0.08 mm | ±0.10 mm | |
Note: Partial Surface Contact Error, EMPE, and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
0 Reviews
Overall Rating
Additional Information
| SKU | 536-101/2/3 |
|---|
