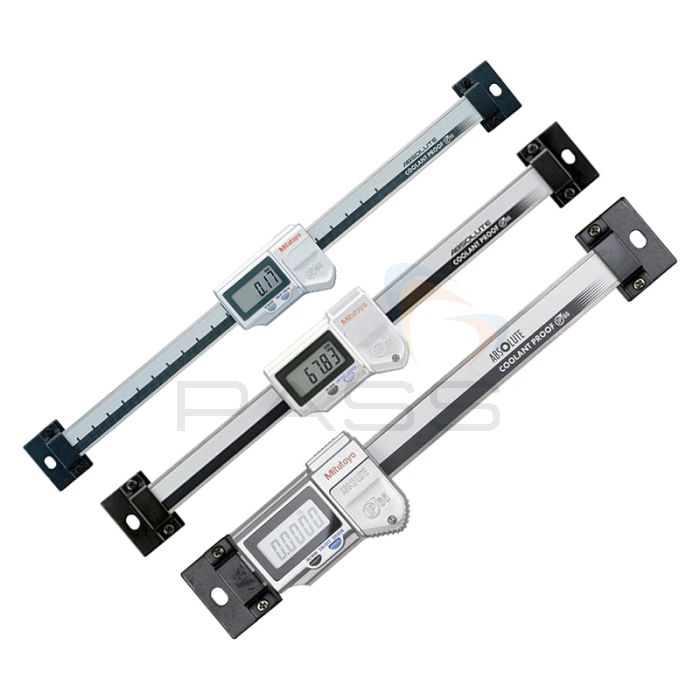

SERIES 572 - ABSOLUTE Digimatic Coolant Proof Scale

You can use this scale unit in adverse environments with water and cutting oil due to its new detection method (electromagnetic induction).

• With SPC data output.
• Specially designed output cables maintain the water-resistant structure.
• No overspeed error since it uses an ABSOLUTE scale which does not depend on counting scale graduations.
• Once an absolute zero (origin) point is set, a Digimatic scale such as this always shows the absolute distance from this point when powered on rather than 0.00.
• The proprietary electromagnetic induction method used for detecting the position of the slider on the scale enables use in adverse environments subject to water and cutting oil mist and splashing.
• A self-powered scale designed to capture positional coordinates from slides on machine tools and precision instruments; such as are incorporated in semiconductor production equipment, for example.
• Comparison Table

Technical Data

• Accuracy: ±0.03 mm
• Resolution: 0005" / 0.01 mm
• Repeatability: 0.01 mm
• Display: LCD
• Length standard: ABSOLUTE electromagnetic induction linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 1.5 years under normal use
• Dust/water protection level: IP66
• Functions: Origin-set, zero-setting, automatic power on/off, data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, measurement value composition error
