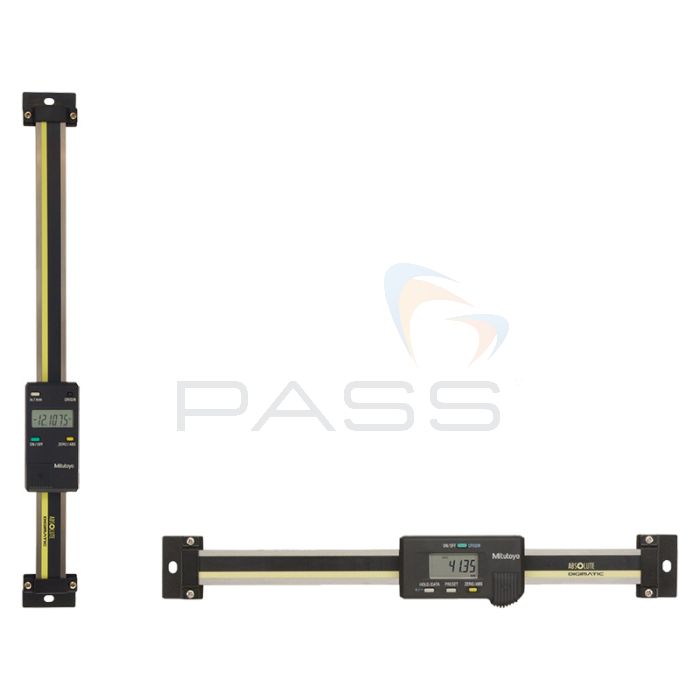

SERIES 572 - ABSOLUTE Digimatic Scales Multifunction Type
- With SPC data output.
- All units come with two mounting brackets, each located at one end of the scale.
- No rack, no pinion, no glass scale. The Digimatic scale is safely embedded in the hardened stainless steel blade.
- Self-powered scales designed to capture positional coordinates from slides on machine tools and precision instruments; such as are incorporated in semiconductor production equipment, for example.
- The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements. This key also allows the return to absolute coordinates with a display of the true position from the origin point.
- The ORIGIN key allows the setting of an absolute zero point to be used as a reference in subsequent measurements. Once set, the ABS Digimatic Scale Unit is ready to show its true position whenever turned on rather than 0.00 as with standard models.
Technical Data
- Accuracy: Refer to the Specifications Table below
- Resolution: 0005" / 0.01 mm
- Display: LCD
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max. response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 3.5 years under normal use
- Dust/water protection level: IP66
- Functions: Origin-set, zero-setting, power on/off, presetting, data hold, data output, inch/mm conversion (inch/mm models), measurement direction switching
- Alarm: Low voltage, measurement value composition error
Tech Specs
Specifications
SKU | Range | Accuracy | L1 | L2 | Mass |
---|---|---|---|---|---|
Horizontal Type | |||||
MIT-572-470 | 0 - 4" / 0 - 100 mm | .001" / 0.03 mm | 244 mm | 220 mm | 0.25 kg |
MIT-572-471 | 0 - 6" / 0 - 150 mm | 294 mm | 270 mm | 0.28 kg | |
MIT-572-472 | 0 - 8" / 0 - 200 mm | 344 mm | 320 mm | 0.31 kg | |
MIT-572-473 | 0 - 12" / 0 - 300 mm | .002" / 0.04 mm | 444 mm | 420 mm | 0.37 kg |
MIT-572-474 | 0 - 18" / 0 - 450 mm | 594 mm | 570 mm | 0.76 kg | |
MIT-572-475 | 0 - 24" / 0 - 600 mm | 774 mm | 750 mm | 0.90 kg | |
MIT-572-476 | 0 - 32" / 0 - 800 mm | .0025" / 0.06 mm | 974 mm | 950 mm | 1.71 kg |
MIT-572-477 | 0 - 40" / 0 - 1000 mm | .0025" / 0.07 mm | 1174 mm | 1150 mm | 2.04 kg |
Vertical Type | |||||
MIT-572-570 | 0 - 4" / 0 - 100 mm | .001" / 0.03 mm | 244 mm | 220 mm | 0.25 kg |
MIT-572-571 | 0 - 6" / 0 - 150 mm | 294 mm | 270 mm | 0.28 kg | |
MIT-572-572 | 0 - 8" / 0 - 200 mm | 344 mm | 320 mm | 0.31 kg | |
MIT-572-573 | 0 - 12" / 0 - 300 mm | .002" / 0.04 mm | 444 mm | 420 mm | 0.37 kg |
MIT-572-574 | 0 - 18" / 0 - 450 mm | 594 mm | 570 mm | 0.76 kg | |
MIT-572-575 | 0 - 24" / 0 - 600 mm | 774 mm | 750 mm | 0.90 kg | |
MIT-572-576 | 0 - 32" / 0 - 800 mm | .0025" / 0.06 mm | 974 mm | 950 mm | 1.71 kg |
MIT-572-577 | 0 - 40" / 0 - 1000 mm | .0025" / 0.07 mm | 1174 mm | 1150 mm | 2.04 kg |
Accessories
Accessories related to this product:
0 Reviews
Overall Rating
Additional Information
SKU | 572-4/57X |
---|
