Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer: Shore A or D & Compact or Long Leg
Mitutoyo’s Series 811 HH-335/1/7/3 Dial Readout Durometer is a simple-to-use, precise, and versatile hardness tester that can be used to test the hardness of non-metallic materials such as natural rubber, neoprene, polyesters, PVC, leather, Thiokol, nitrile rubber, wax, vinyl, cellulose acetates, glass, and polystyrene (model dependent).
There are four versions of Mitutoyo’s Series 811 HH-335/1/7/3 Dial Readout Durometer available: two featuring a Shore A scale and two with a Shore D scale. Compact and long-leg models equipped with a Shore A scale can test the hardness of natural rubber and soft elastomers while compact and long-leg durometers with a Shore D scale are suitable for testing hard elastomers, plastics, hard rubber, and ebonite. To ensure error-free readings, all the Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometers are supplied with a peak retaining hand.
Finally, the Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer has been designed in accordance with ASTM D 2240, ISO868, ISO7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications and can be used with a range of test stands.

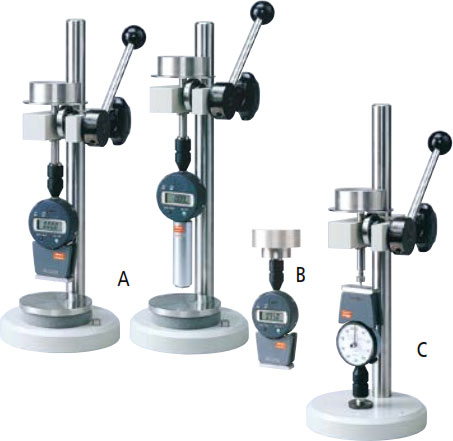

| A | Anyone can perform repeatable hardness measurement due to fewer possibilities for human error and measurement variations. |
| B | The supplied weights can be attached directly to a Durometer and allow constant-force hardness measurement of large samples for which a stand cannot be used. |
| C | The supplied weights are used for calibrating the spring force of Durometers |
The Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer is a versatile, accurate, easy-to-use hardness tester.
Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer Key Features
- Simple-to-use, precise, versatile hardness tester
- Test the hardness of non-metallic materials such as natural rubber, neoprene, polyester, PVC, leather, Thiokol, nitrile rubber, wax, vinyl, cellulose acetates, glass, and polystyrene (model dependent)
- Four versions available: two (compact and long-leg) with a Shore A scale and two (compact and long-leg) with a Shore D scale
- Shore A models: test the hardness of natural rubber and soft elastomers
- Shore D models: test the hardness of hard elastomers, plastics, hard rubber, and ebonite
- Peak retaining hand ensures error-free readings
- Designed in accordance with ASTM D 2240, ISO868, ISO7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications
- A versatile, accurate, easy-to-use hardness tester
What’s Included?
- Your Choice of Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer
Mitutoyo Series 811 HH-335/1/7/3 Dial Readout Durometer Technical Specifications
| Model | HH-335 | HH-331 | HH-337 | HH-333 |
|---|---|---|---|---|
| SKU | MIT-811-335-10 | MIT-811-331-10 | MIT-811-337-10 | MIT-811-333-10 |
| Scale | Shore A | Shore D | ||
| Type | Compact | Long Leg | Compact | Long Leg |
| Applications | Natural rubber, soft elastomers, etc. | Hard elastomers, plastics, hard rubber, ebonite, etc. | ||
| Resolution | 1 | |||
| Range | HA: 10 - 90 | HD: 20 - 90 | ||
| Standards | ||||
| ASTM D 2240 | ✓ | ✓ | ✓ | ✓ |
| ISO 868 | ✓ | ✓ | ✓ | ✓ |
| ISO 7619 | ✓ | ✓ | ✓ | ✓ |
| DIN 53 505 | - | ✓ | - | ✓ |
| JIS K 6253 | ✓ | ✓ | ✓ | ✓ |
| JIS K 7215 | ✓ | ✓ | ✓ | ✓ |
| Pressure Foot Size | 44 x 18mm | ø18mm | 44 x 18mm | ø18mm |
| Spring Force (mN) | 550+75H (Hardness Reading: 10 - 90) | 444.5H (Hardness Reading: 20 - 90) | ||
| Indenter | Blunt Taper (Tip Diameter: 0.79mm) | Sharp Point (Tip Radius: 0.1 ±0.01mm) | ||
| Tip Angle | 35° ±0.25° | 30° ±0.5° | ||
| Indenter Diameter | 1.25mm | |||
| Indenter Protrusion | 2.5mm | |||
| Dimensions (W x D x H) | 63 x 34 x 146mm | 68 x 35 x 188mm | 63 x 34 x 146mm | 68 x 35 x 188mm |
| Mass | 300g | 320g | 300g | 320g |
| SKU | 811-335/1/7/3-10 |
|---|
