Moore & Wright Dial Bore Gauge Set, 316 Series
- Unique self-centring device
- Supplied with a dial indicator
- Seven options available
SKU
MW-MW316-X

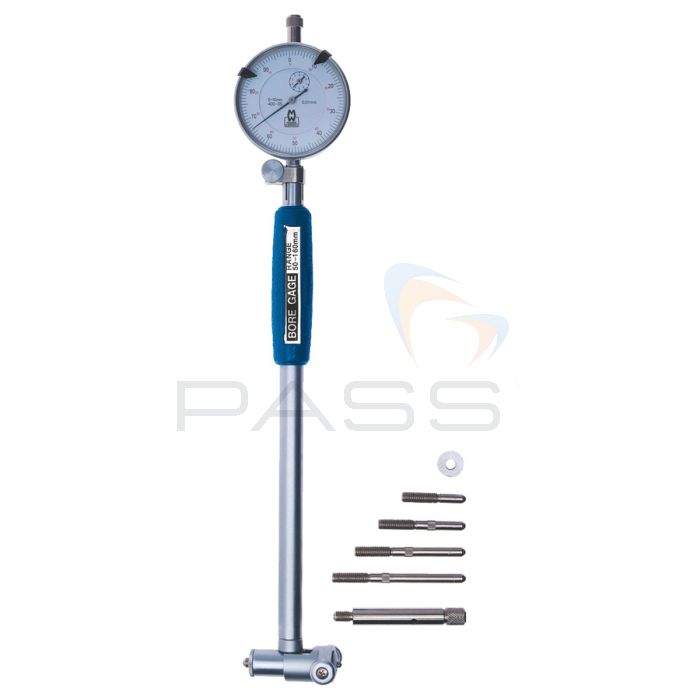

The Moore & Wright MW316 Series Dial Bore Gauge Sets range from 6mm to 250mm. Each set has a full range of interchangeable carbide-tipped contact points, with a dial indicator delivering a fine resolution of 0.01mm. Designed with a unique self-centring mechanism, these gauges ensure fast, repeatable readings without operator error.
Key Features
- Set of carbide-tipped contact points included
- Unique self-centring device
- Supplied with dial indicator, resolution 0.01mm
- Packed as set with all necessary accessories
Product Range
- Moore & Wright MW316-01 Dial Bore Gauge Set, 6-10mmm
- Moore & Wright MW316-02 Dial Bore Gauge Set, 10-18mmm
- Moore & Wright MW316-03 Dial Bore Gauge Set, 18-35mmm
- Moore & Wright MW316-04 Dial Bore Gauge Set, 35-50mmm
- Moore & Wright MW316-05 Dial Bore Gauge Set, 50-160mmm
- Moore & Wright MW316-06 Dial Bore Gauge Set, 160-250mmm
- Moore & Wright MW316-12D Dial Bore Gauge Set, 35-160mm
£113.00
£135.60 inc vat
1 Option in Stock:
Available Next Working Day*
Free PASS Football (Spend £250+)
Find Out More
60 Day Returns
Offers
Free PASS Football (Spend £250+)
Automatically adds to your basket when the total exceeds £250+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Resolution (mm) | Resolution (inch) | Measuring Depth (mm) | Measuring Depth (inch) | |
|---|---|---|---|---|---|
| MW316-01 | 6-10 | 0.01 | 50 | 2 | |
| MW316-02 | 10-18 | 0.01 | 100 | 4 | |
| MW316-03 | 18-35 | 0.01 | 140 | 5.5 | |
| MW316-04 | 35-50 | 0.01 | 150 | 6 | |
| MW316-05 | 50-160 | 0.01 | 150 | 6 | |
| MW316-06 | 160-250 | 0.01 | 205 | 8 | |
| MW316-12D | 35-160 | 0.001 | 0.00005 | 150 | 6 |
