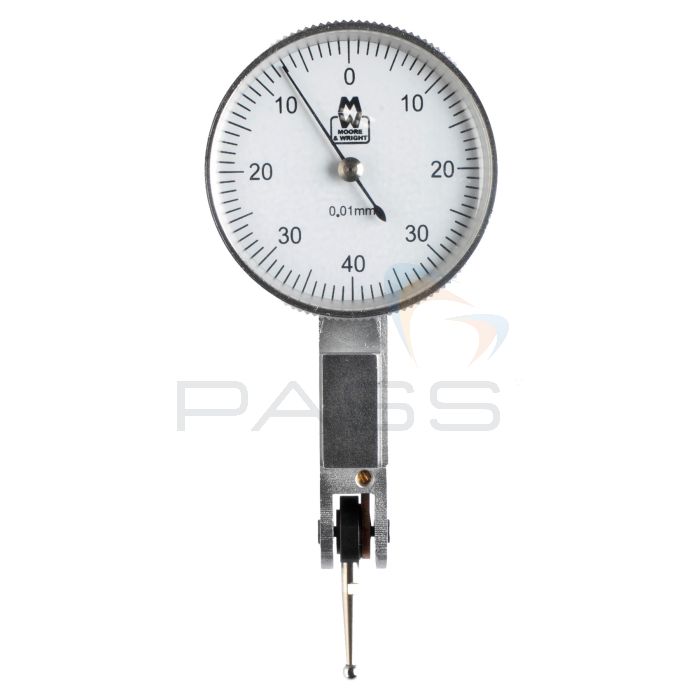

Moore & Wright Dial Test Indicator, 420 Series
- 25mm, 37mm, 1", and 1.5" models
- Rotating dial
- Two dovetail clamps
- Styli length: 12mm / 1/2", M1.4 thread
SKU
MW-MW420-0-X
The Moore & Wright 420 Series is available in 25mm, 37mm, 1", and 1.5" models. Each unit has fully jewelled bearings, while the automatic reversal of measuring direction provides consistent readings regardless of probe orientation. The rotating dial and dual dovetail clamps deliver flexibility, and the 12mm (½") styli with M1.4 thread support fine adjustments. The unit conforms to both ANSI B89.1.10 and DIN 2270 standards.
Key Features
- Standard: ANSI B89.1.10, DIN2270
- Automatic reversal of measuring direction
- High precision fully jewelled bearings
- Rotating dial
- Two dovetail clamps
- Styli length: 12mm / 1/2", M1.4 thread
Product Range
- Moore & Wright MW420-03 Dial Test Indicator, 25mm
- Moore & Wright MW420-04 Dial Test Indicator, 37mm
- Moore & Wright MW420-03I Dial Test Indicator, 1"
- Moore & Wright MW420-04I Dial Test Indicator, 1.5"
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| MW420-03 | MW420-04 | MW420-03I | MW420-04I | |
|---|---|---|---|---|
| Range | 0.8mm | 0.8mm | 0.030" | 0.030" |
| Accuracy (inch) | 0.0005 | 0.0005 | ||
| Accuracy (mm) | 0.013 | 0.013 | ||
| Dial Reading | 0-40-0 | 0-40-0 | 0-15-0 | 0-15-0 |
| Dial Diameter | 37mm | 37mm | 1" | 1 1/2" |
| Graduation | 0.01mm | 0.01mm | 0.0005" | 0.0005" |
Additional Information
SKU
MW-MW420-0-X
Moore & Wright Dial Test Indicator, 420 Series
£64.50
£77.40 inc vat
£64.50
£77.40 inc vat
