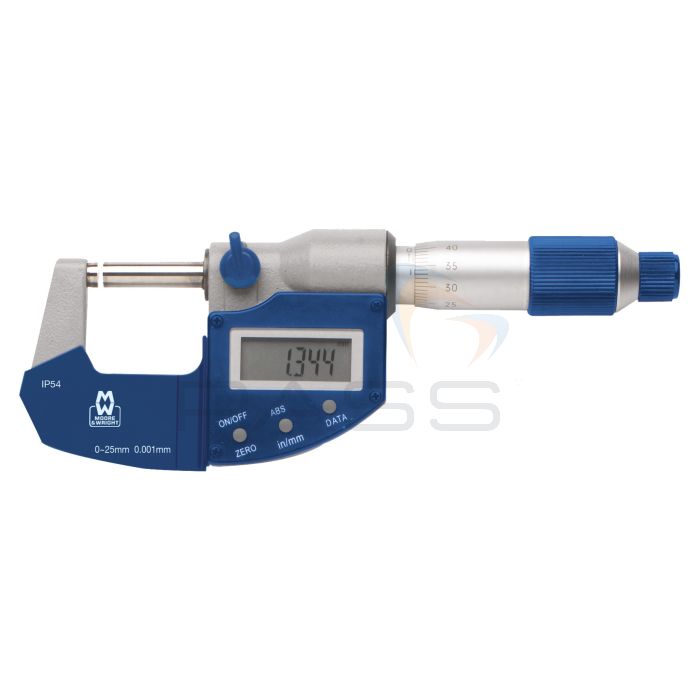

Moore & Wright Digital External Micrometer, 201 Series
- Protected to IP54 specifications
- Large LCD
SKU
MW201-0-X-DAB
The Moore & Wright 201 Series cover measurement ranges from 0 to 100mm (0 to 4"). They are built to DIN 863 standards and have IP54 protection against dust and water ingress. A large LCD delivers easy readability, with digital functions including mm/inch conversion, ABS/INC modes, zero-setting, on/off control, and SPC data output.
Constructed with a rugged steel frame, these micrometers include tungsten carbide measuring faces, a hammer-tone finish with an insulated grip and a tapered design for improved access to difficult areas. A constant-force ratchet, locking lever, and included ball attachment ensures reliable, repeatable results. Each unit has a protective case with a standard setting for sizes above 25mm.
Key Features
- Protected to IP54 specifications
- Large LCD
- Digital functions: mm/inch conversion, ABS/INC, on/off, zero-setting
- SPC data output
- Rugged steel design
- Tungsten carbide measuring faces
- Hammertone finished frame with high-quality insulated grip
- Tapered for easier access to difficult areas
- Constant force ratchet on thimble
- Locking lever
- Ball attachment included
- Supplied with settings standard over 25mm
- Supplied in case
- Standard: DIN 863
Product Range
- Moore & Wright MW201-01DAB Digital External Micrometer, 0-25mm/0-1"
- Moore & Wright MW201-02DAB Digital External Micrometer, 25-50mm/1-2"
- Moore & Wright MW201-03DAB Digital External Micrometer, 50-75mm/2-3"
- Moore & Wright MW201-04DAB Digital External Micrometer, 75-100mm/3-4"
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | |
|---|---|---|---|---|---|
| MW201-01DAB | 0-25 | 0-1 | 0.003 | 0.001 | 0.00005 |
| MW201-02DAB | 25-50 | 1-2 | 0.003 | 0.001 | 0.00005 |
| MW201-03DAB | 50-75 | 2-3 | 0.004 | 0.001 | 0.00005 |
| MW201-04DAB | 75-100 | 3-4 | 0.004 | 0.001 | 0.00005 |
