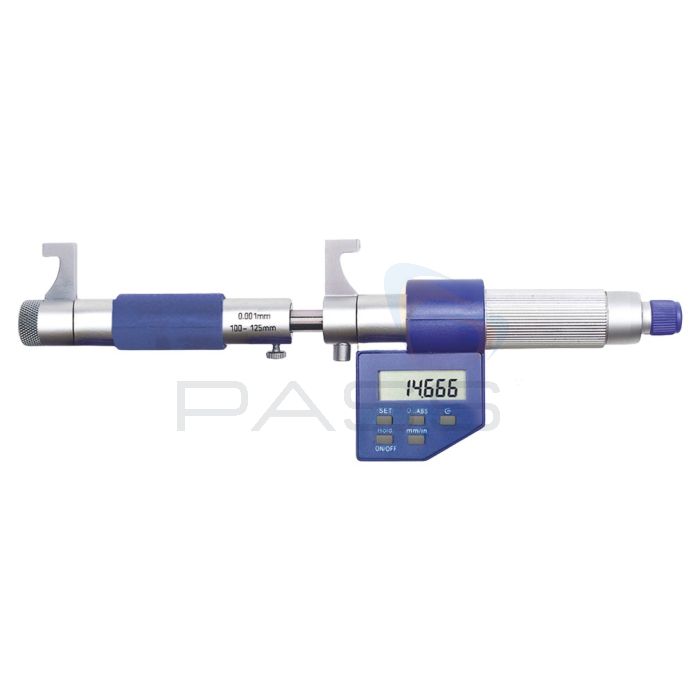

Moore & Wright Digital Inside Micrometer, 280-DDL Series
- Satin chrome finished frame
- Constant force ratchet thimble
- 5-150mm range
- Supplied in case
SKU
MW280-0-X-DDL
The Moore & Wright 280-DDL Series Digital Inside Micrometers measure the internal dimensions of bores and holes. They have a measuring range of 5 to 150mm and conform to DIN 863 standards. Each micrometer includes a satin chrome-finished frame, a constant-force ratchet thimble, a locking clamp, and a protective case. Digital functions include mm/inch conversion, ABS/INC mode, on/off control, zero-setting, hold function, and a low battery indicator.
The MW280-01DDL model features 2mm diameter pins with a 5mm length.
Key Features
- Digital functions: mm/inch conversion, on/off, zero-setting, battery low indication, hold, 0...ABS
- Pin diameter 2mm, length 5mm (only applicable to MW280-01DDL)
- Satin chrome finished frame
- Constant force ratchet thimble
- Locking clamp for positive locking of the spindle
- Supplied in case
Product Range
- Moore & Wright MW280-01DDL Digital Inside Micrometer, 5-30mm
- Moore & Wright MW280-02DDL Digital Inside Micrometer, 25-50mm
- Moore & Wright MW280-03DDL Digital Inside Micrometer, 50-75mm
- Moore & Wright MW280-04DDL Digital Inside Micrometer, 75-100mm
- Moore & Wright MW280-05DDL Digital Inside Micrometer, 100-125mm
- Moore & Wright MW280-06DDL Digital Inside Micrometer, 125-150mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | |
|---|---|---|---|---|---|
| MW280-01DDL | 5-30 | 0.2-1.2 | 0.003 | 0.001 | 0.00005 |
| MW280-02DDL | 25-50 | 1-2 | 0.003 | 0.001 | 0.00005 |
| MW280-03DDL | 50-75 | 2-3 | 0.003 | 0.001 | 0.00005 |
| MW280-04DDL | 75-100 | 3-4 | 0.004 | 0.001 | 0.00005 |
| MW280-05DDL | 100-125 | 4-5 | 0.005 | 0.001 | 0.00005 |
| MW280-06DDL | 125-150 | 5-6 | 0.005 | 0.001 | 0.00005 |
