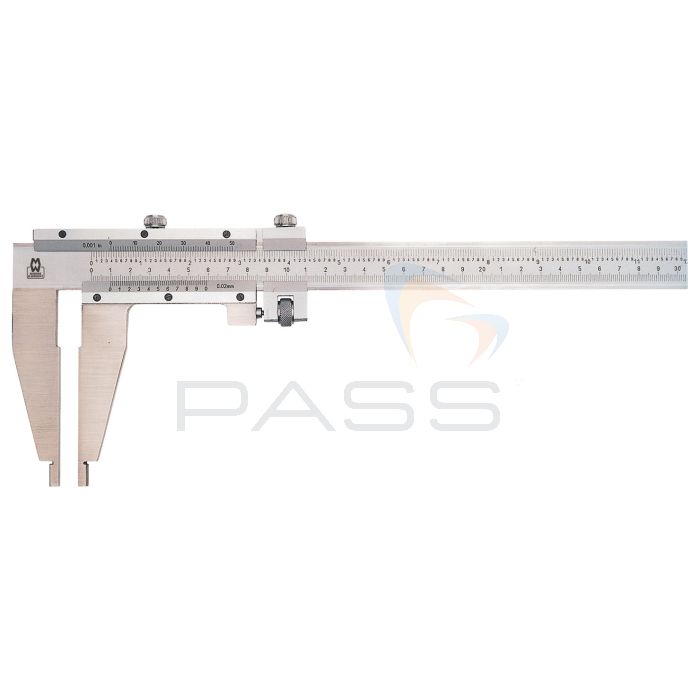

Moore & Wright Large Workshop Vernier Caliper
- Jaws for internal and external measurement
- Eight models available
- Supplied in wooden box
SKU
MW150-5X-8X
The Moore & Wright MW150 Series Large Workshop Vernier Calipers handle substantial measuring tasks with ease and accuracy. Available in sizes from 500mm up to 1500mm (20"–60"), each model has a robust locking screw to maintain measurement integrity, with metric and imperial scales with fine resolutions of either 0.02mm/.001" or 0.05mm/1/128" depending on the model.
Key Features
- Jaws for internal and external measurement
- Made of hardened alloyed stainless steel
- Chromed scale with laser engraved graduations
- Measuring surface is micro-lapped
- With fine adjustment
- Supplied in wooden box
Product Range
- Moore & Wright MW150-52 Large Workshop Vernier Caliper, 500mm/ 20", 0.02mm/.001"
- Moore & Wright MW150-55 Large Workshop Vernier Caliper, 500mm/20", 0.05mm/ 1/128"
- Moore & Wright MW150-62 Large Workshop Vernier Caliper, 600mm/ 24", 0.02mm/.001"
- Moore & Wright MW150-65 Large Workshop Vernier Caliper, 600mm/24", 0.05mm/ 1/128"
- Moore & Wright MW150-72 Large Workshop Vernier Caliper, 1000mm/ 40", .02mm/.001"
- Moore & Wright MW150-75 Large Workshop Vernier Caliper, 1000mm/40", .05mm/ 1/128"
- Moore & Wright MW150-82 Large Workshop Vernier Caliper, 1500mm/ 60", .02mm/.001"
- Moore & Wright MW150-85 Large Workshop Vernier Caliper, 1500mm/60", .05mm/ 1/128"
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Dimn - A | Dimn - B | Dimn - C | |
|---|---|---|---|---|---|---|---|---|
| MW150-52 | 0-500 | 0-20 | ±0.05 | 0.02 | 0.001 | 100 | 12 | 5 |
| MW150-55 | 0-500 | 0-20 0-20 | ±0.07 | 0.05 | 1/128 | 100 | 12 | 5 |
| MW150-62 | 0-600 | 0-24 | ±0.05 | 0.02 | 0.001 | 100 | 12 | 5 |
| MW150-65 | 0-600 | 0-24 | ±0.08 | 0.05 | 1/128 | 100 | 12 | 5 |
| MW150-72 | 0-1000 | 0-40 | ±0.07 | 0.02 | 0.001 | 125 | 18 | 10 |
| MW150-75 | 0-1000 | 0-40 | ±0.10 | 0.05 | 1/128 | 125 | 18 | 10 |
| MW150-82 | 0-1500 | 0-60 | ±0.11 | 0.02 | 0.001 | 150 | 18 | 10 |
| MW150-85 | 0-1500 | 0-60 | ±0.16 | 0.05 | 1/128 | 150 | 18 | 10 |
