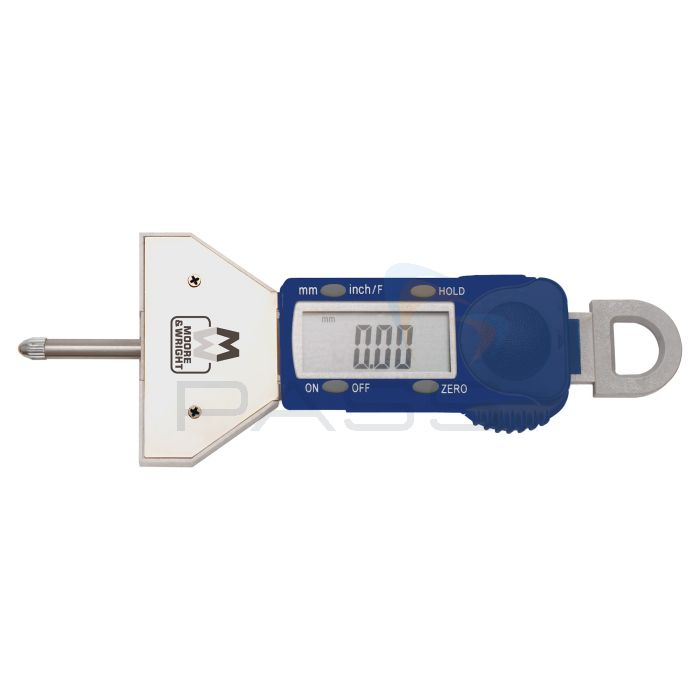

Moore & Wright MW177-01D Digital Mini Depth Gauge, 177 Series

The Moore & Wright MW177-01D reads metric, inch, and fractional measurements, displaying the data on the easy-to-read digital display. It has a 0–100mm (0.4") range, 25mm measuring stroke, 0.01mm / 0.0005" / 1/128" resolution, and 0.03mm accuracy. The spring-loaded measuring rod with M2.5 threading provides smooth, consistent operation, while the hold button makes capturing and recording measurements effortless. Supplied in retail packaging, the gauge includes 25mm and 50mm extension bars and has a lightweight 50mm plastic base for stability.

Key Features

• Supplied on retail packaging
• Plastic 50mm base
• M2.5 threaded measuring rod
• 25mm / 1" measuring stroke
• Includes 25mm and 50mm extension bars
• Battery CR2032
• Metric / Inch / Fraction reading
• 0-100mm / 0.4" range
• 0.03mm accuracy
• 0.01mm / 0.0005 / 1/128" resolution
