Moore & Wright Traditional Depth Gauge
- Reversible base or protractor
- Metric or Imperial
- Rules graduated on both sides
SKU
MW-43/44

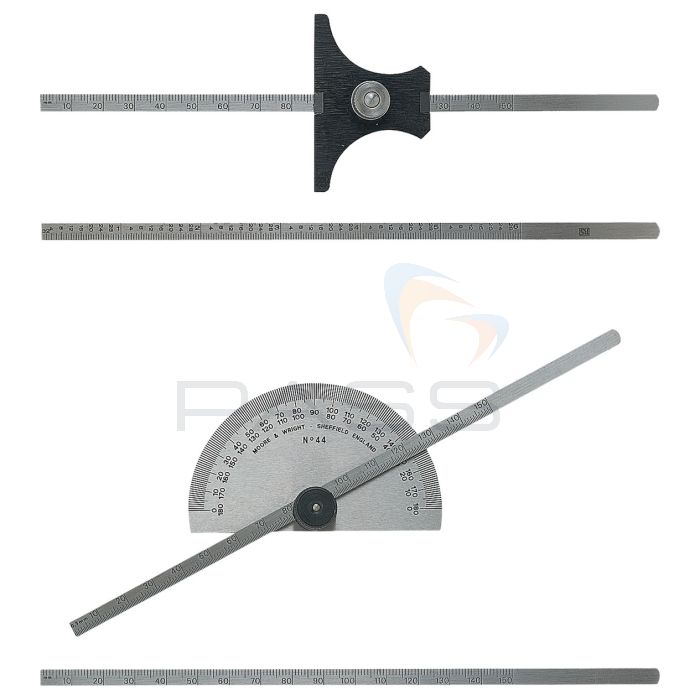

These Moore & Wright Traditional Depth Gauges provide classic and reliable solutions for accurate depth measurement in metric and imperial units. The 43 and 43M models have a reversible base with precisely ground top and bottom faces. The 44 and 44M models include a protractor head graduated from 0° to 180° to 0°, with a ½-degree resolution.
The gauges have a fully adjustable rule that can be locked using a knurled nut. Each blade measures 195mm (7.68") and is dual-graduated, displaying imperial (1/32") and metric (0.5mm / 1.0mm) scales.
Key Features
- Available with either reversible base or protractor
- Full range rule adjustment
- Readings can be fixed by means of a locknut
- Rules graduated on both sides
- Metric scales front face graduations 0.5mm, 1.0mm
- Metric scales rear face graduations 1.0mm
- Metric / Imperial scales front face graduations 1/32nd
- Metric / Imperial scales rear face graduations 1.0mm
- Length of blade 195mm / 7.68"
Product Range
- Moore & Wright 43 Traditional Depth Gauge - Imperial, Reversible Base
- Moore & Wright 44 Traditional Depth Gauge - Imperial, Protractor
- Moore & Wright 43M Traditional Depth Gauge - Metric, Reversible Base
- Moore & Wright 44M Traditional Depth Gauge - Metric, Protractor
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| 43 | 44 | 43M | 44M | |
|---|---|---|---|---|
| Description | Reversible Base | Protractor | Reversible Base | Protractor |
| Width (mm) | 5.5 | 5.5 | 5.5 | 5.5 |
| Width (inch) | 0.22 | 0.22 | 0.22 | 0.22 |
| Size of Base | 18mm, 56mm, 0.71", 2.21" | 79mm / 3.11" | 18mm, 56mm | 79mm |
| Thickness | 1.0mm / 0.04" | 1.0mm / 0.04" | 1.0mm | 1.0mm |
Document Downloads
Additional Information
SKU
MW-43/44
Moore & Wright Traditional Depth Gauge
£40.00
£48.00 inc vat
£40.00
£48.00 inc vat
