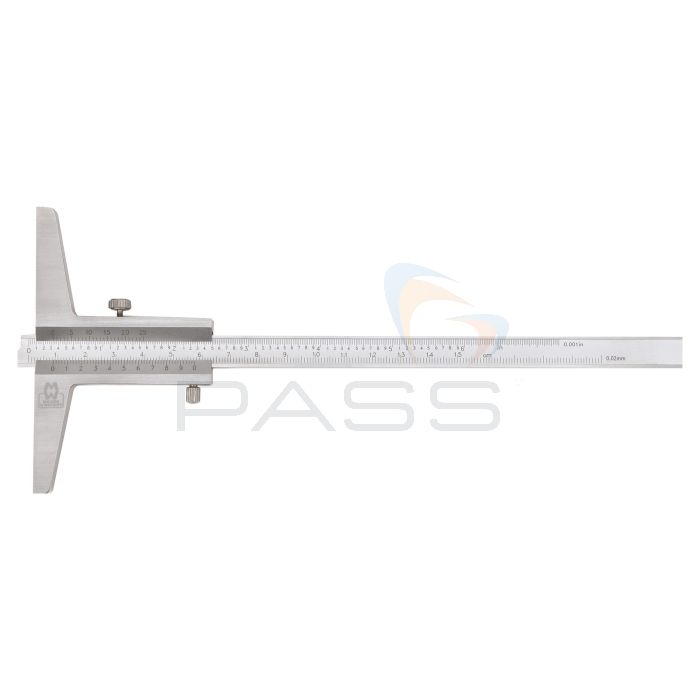

Moore & Wright Vernier Depth Gauge, 170 Series
- Mono block with locking screw
- With laser-engraved graduations
- Eight models available
SKU
MW170-X-GA
The Moore & Wright 170 Series measures the depth of components in various applications. The gauges are of high-quality alloyed stainless steel, with options spanning 150mm to 500mm and available in 0.02mm and 0.05mm graduations. Each model has a vernier scale that allows consistent and repeatable readings.
Key Features
- Mono block with locking screw
- With laser engraved graduations
- Measuring surface is micro-lapped
Product Range
- Moore & Wright MW170-15 Vernier Depth Gauge, 150mm, 0.02mm
- Moore & Wright MW170-15B Vernier Depth Gauge, 150mm, 0.05mm
- Moore & Wright MW170-20 Vernier Depth Gauge, 200mm, 0.02mm
- Moore & Wright MW170-20B Vernier Depth Gauge, 200mm, 0.05mm
- Moore & Wright MW170-30 Vernier Depth Gauge, 300mm, 0.02mm
- Moore & Wright MW170-30B Vernier Depth Gauge, 300mm, 0.05mm
- Moore & Wright MW170-50B Vernier Depth Gauge, 500mm, 0.05mm
- Moore & Wright MW170-50BI Vernier Depth Gauge, 500mm, 0.02mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Resolution (mm) | Resolution (inch) | Size of Base (mm) | |
|---|---|---|---|---|
| MW170-15 | 0-150 | 0.02 | 0.001 | 100 |
| MW170-15B | 0-150 | 0.05 | 1/128 | 100 |
| MW170-20 | 0-200 | 0.02 | 0.001 | 100 |
| MW170-20B | 0-200 | 0.05 | 1/128 | 100 |
| MW170-30 | 0-300 | 0.02 | 0.001 | 100 |
| MW170-30B | 0-300 | 0.05 | 1/128 | 100 |
| MW170-50B | 0-500 | 0.05 | 1/128 | 150 |
| MW170-50BI | 0-500 | 0.02 | 0.001 | 150 |
Additional Information
SKU
MW170-X-GA
Moore & Wright Vernier Depth Gauge, 170 Series
£40.00
£48.00 inc vat
£40.00
£48.00 inc vat
