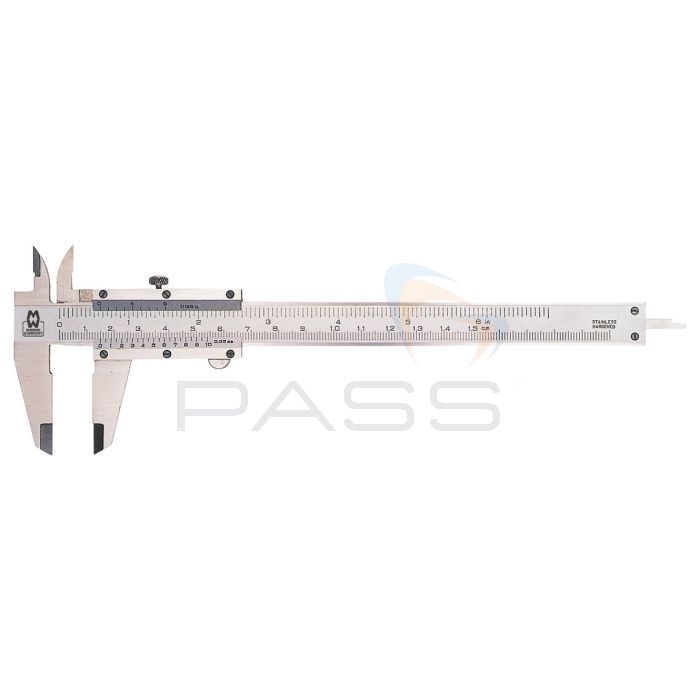

Moore & Wright Workshop Vernier Caliper, 100 Series
- Metric and Imperial graduations
- Capacity: 0-200mm (0-8 inch)
- Accuracy: +/- 0.05mm
- Resolution: 0.05mm (1/128 inch)
SKU
MW100-X
The Moore & Wright 100 Series has 4-way measurement capabilities: external, internal, step, and depth. The calipers are available in metric/imperial (0.05mm / 1/128") and high-resolution imperial models (0.02mm / .001"). They provide accurate dimensional checks across sizes ranging from 150mm to 300mm and have a solid stop screw.
Key Features
- Metric and Imperial graduations
- Chromed scale with engraved graduations
- Made of hardened alloyed stainless steel with micro-lapped measuring surfaces
- Standard DIN 862
- Capacity: 0-200mm (0-8 inch)
- Accuracy: +/- 0.05mm
- Resolution: 0.05mm (1/128 inch)
- Supplied in storage case
Product Range
- Moore & Wright MW100-15B Workshop Vernier Caliper, 150mm/6" 0.05mm/ 1/128"
- Moore & Wright MW100-20B Workshop Vernier Caliper, 200mm/8" 0.05mm/ 1/128"
- Moore & Wright MW100-30B Workshop Vernier Caliper, 300mm/12" 0.05mm/ 1/128"
- Moore & Wright MW100-15BI Workshop Vernier Caliper, 150mm/6" 0.02mm/.001"
- Moore & Wright MW100-20BI Workshop Vernier Caliper, 200mm/8" 0.02mm/.001"
- Moore & Wright MW100-30BI Workshop Vernier Caliper, 300mm/12" 0.02mm/.001"
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Dimn - A | Dimn - B | |
|---|---|---|---|---|---|---|---|
| MW100-15B | 0-150 | 0-6 | ±0.05 | 0.05 | 1/128 | 40 | 16 |
| MW100-20B | 0-200 | 0-8 | ±0.05 | 0.05 | 1/128 | 50 | 20 |
| MW100-30B | 0-300 | 0-12 | ±0.08 | 0.05 | 1/128 | 55 | 20 |
| MW100-15BI | 0-150 | 0-6 | ±0.02 | 0.02 | 0.001 | 40 | 16 |
| MW100-20BI | 0-200 | 0-8 | ±0.03 | 0.02 | 0.001 | 50 | 20 |
| MW100-30BI | 0-300 | 0-12 | ±0.04 | 0.02 | 0.001 | 55 | 20 |
Additional Information
SKU
MW100-X
Moore & Wright Workshop Vernier Caliper, 100 Series
