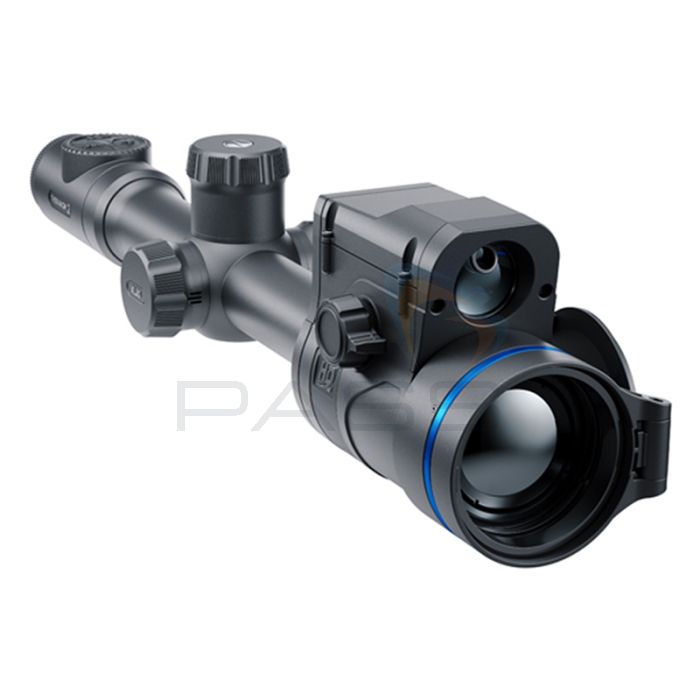

The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is a thermal imaging weapon scope suitable for use with a variety of high-impact rifles.
Thermal Imaging
To deliver revolutionary HD-quality thermal imaging, the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is fitted with a 1024 x 768px thermal sensor. Consequently, the outlines and characteristics of animals are distinguishable and easy to identify.
A germanium F50/1.0 objective lens also works to ensure sharp and precise imaging across the field of view. The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope’s large-format sensor delivers a wide field of view perfect for quick scanning and spotting. Ergonomic focusing wheels on either side of the weapon scope make focusing easy.
Furthermore, ground-breaking thermal image processing consisting of adjustable sensor sensitivity amplification as well as filtration algorithms mean imaging is crisp in all weather conditions. Adjustable amplification ensures the animal’s characteristics remain sharp without compromising the clarity of other objects and the background.
Detailed Digital Zoom
Offering a variable magnification between 1.75x and 14x (x8 digital zoom), the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope provides improved focus and overall object recognition from significant distances. The zoom can be adjusted in x2 intervals or continuously for a customisable field-of-view/magnification. Regardless, the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope’s HD sensor maintains detail across the entire magnification range.
Picture-in-Picture Mode
Zoom in on the target without losing the entire field of view. The Picture-in-Picture frame displays the magnified target and the reticle.
Selectable Colour Palettes
Eight selectable thermal colour palettes allow you to tailor the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope to your application or environment:
- Object detection: White Hot, Black Hot, and Red Hot
- Recognition and identification: Rainbow and Ultramarine
- Long observation at night: Red Monochrome, Sepia, and Violet
Adjustable Brightness & Contrast
Altering the brightness and contrast settings allows you to maximise the detail displayed throughout the image. The User Mode function also enables you to save selected brightness and contrast settings to the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope for easy access.
Precision Laser Rangefinder
The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is fitted with a compact, precise laser rangefinder with a range of up to 800m. It indicates the distance to the target while the integrated ballistics algorithm calculates the suggested POA.
10 Reticle Shapes in 9 Colours
Choose from ten reticle configurations and functions, such as direct shot type, ballistic, scalable, and regular. All of these are available in nine colours.
Save 10 Shooting Profiles
Save up to ten shooting profiles for use with different types of weapons. Each of these profiles may contain a maximum of ten zeroing distances which can be turned into automatic ballistic calculations using measured distances and the Stream Vision Ballistics App.
64Gb Memory
In addition to shooting profiles, hours of footage and thousands of images may be saved to the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope’s built-in 64Gb memory.
Wi-Fi Interface & App Compatibility
It is also possible to stream footage via built-in Wi-Fi (2.4/5 GHz) to an Android/iOS smartphone or tablet with the Stream Vision 2 App installed. Furthermore, the app and Wi-Fi interface can also be used to update the riflescope’s software as well as operate it remotely. Users registered within the app will also receive Cloud storage.
Wireless Remote Control
Alternatively, users may operate the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope via the included wireless remote. The buttons duplicate the most used functions while the encoder operates fine adjustment and menu navigation.
Ergonomic, Durable Design
The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is waterproof and suitable for use in temperatures as wide-ranging as -25°C and +50°C. It features a frost-resistant AMOLED display which delivers a quick response time, perfect for tracking animals in motion. Additionally, the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope has a high-impact-resistant design making it suitable for use with smooth-bore and pneumatic weapons as well as rifled hunting weapons with calibres of 9.3x64, .30-06, .300, and .375H&H. Compatibility with 30mm rings ensures the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope can be mounted on hunting weapons using proven ring solutions.
10-Hour Battery Life
Easy, quick, precise battery replacement is also assured by the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope’s ergonomic, embossed design. It is powered by two rechargeable batteries: a built-in 4.9Ah battery and a replaceable battery. The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is supplied with two replaceable batteries (2Ah and 3.2Ah). Together the integrated and replaceable battery delivers an operating time of up to ten continuous hours.
The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is a sophisticated yet simple-to-use infrared imaging scope.
Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope Key Features
- A thermal imaging weapon scope suitable for use with a variety of high-impact rifles
- 1024 x 768px HD thermal sensor
- Germanium F50/1.0 objective lens
- Wide field of view
- Ergonomic focusing wheels on either side of the scope
- Adjustable sensor sensitivity amplification
- Filtration algorithms
- Variable magnification: 1.75x – 14x (x8 digital zoom)
- Adjust the digital zoom in x2 intervals or continuously
- Picture in Picture mode
- Eight selectable colour palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet
- Adjustable brightness and contrast settings
- Save selected brightness and contrast settings with the User Mode
- Precise laser rangefinder with a range up to 800m
- Ballistics algorithm calculates the suggested POA
- Ten reticle shapes (shot type, ballistic, scalable, and regular) available in nine colours
- Save up to ten shooting profiles each with ten zeroing distances
- Integrated 64Gb memory
- Built-in Wi-Fi interface
- Compatible with the Stream Vision 2 App
- Stream footage to a smartphone/tablet with the Stream Vision 2 App installed
- Operate the scope remotely via the Stream Vision 2 App
- Update the scope’s software via the Stream Vision 2 App
- Includes a wireless remote control
- Waterproof
- Operating temperature range: -25°C to +50°C
- Frost-resistant AMOLED display
- High-impact design
- Suitable for use with smooth-bore, pneumatic, and rifled hunting weapons with 9.3x64, .30-06, .300, and .375H&H calibres
- Compatible with 30mm rings
- Powered by two rechargeable batteries: a built-in 4.9Ah battery and a replaceable battery
- Supplied with two replaceable batteries (2Ah and 3.2Ah)
- Operating time: 10 hours
- Sophisticated yet simple-to-use infrared imaging scope
What’s Included?
- Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope
- Removable Rubber Eyecup
- APS2 Battery Pack
- APS3 Battery Pack
- Wireless Remote Control
- APS Battery Charger
- Power Adapter
- USB Type-C Cable with USB Type-A Adapter
- Carrying Case
- Lens Cleaning Cloth
- Quick User Manual
- APS3 Battery Cover
Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope Technical Specifications
Microbolometer | |
Type | uncooled |
Resolution, pixels | 1024x768 |
Pixel Pitch, µm | 12 |
NETD, mK | < 35 |
Frame refresh rate, Hz | 50 |
Optical Specifications | |
Lens, mm | F50 F/1.0 |
Magnification, x | 1.75 - 14 |
Eye relief, mm/inch | 50/1.96 |
Field of view (H), °/m@100 | 14/24.6 |
Diopter adjustment, D | -3/+5 |
Detection distance (Object of "deer" type), m/y | 2300/2515 |
Aiming Reticle | |
Click value, mm@100 m – when magnifying, x | 24 mm – 1.75х |
12 mm – 3.5х | |
6 mm – 7х | |
3 mm – 14х | |
Click range (H/V), mm@100 m | 4800/4800 |
Display | |
Type | AMOLED |
Resolution, pixels | 1024х768 |
Operating Features | |
Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
Power Supply, V | 3–4.2 |
Battery type / Capacity / Rated Output Voltage |
Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)
Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
Battery Packs (built-in APS5 and removable APS2/APS3) operating time at temp. = 22 °C, hrs* | 6/7 |
Max. recoil power on rifled weapon, Joules | 6000 |
Max. recoil power on smoothbore weapon, caliber | 12 |
Degree of protection IP code (IEC60529) | IPX7 |
Operating temperature, °С / °F | -25 – +50 / -13 – +122 |
Dimensions with an eyecup, mm/inch | 426x78.5x94.5 / 16.77x3.09x3.72 |
Weight (without removable battery), kg/oz | 1.03 / 36.33 |
Video Recorder | |
Photo / video resolution, pixels | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory | 64 GB |
Wi-Fi Channel** | |
Frequency | 2.4/5 GHz |
Standard | IEEE 802.11 b/g/n/ac |
Laser Rangefinder | |
Wavelength, nm | 905 |
Max. Measurement Range, m/y*** | 800 / 874.9 |
Measurement Accuracy, m | 1 |
Notes | * The actual operating time depends on the intensity of using Wi-Fi, video recorder, Bluetooth and laser rangefinder. |
** The reception range may vary depending on various factors: obstacles, other Wi-Fi networks. | |
*** Depends on the characteristics of the object under observation and environmental conditions. |
SKU | PU-76557 |
---|---|
Manufacturer Part Code | PUL-76557 |
