Description

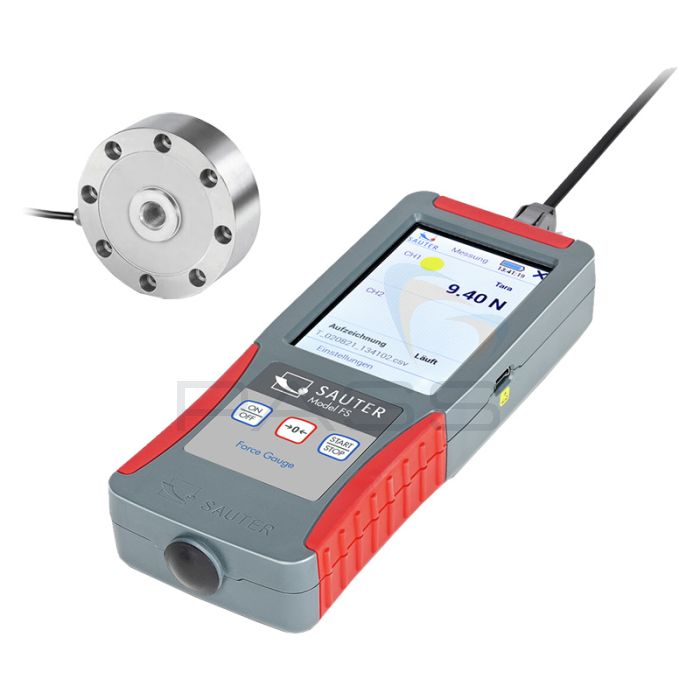

Ready-assembled set consisting of premium force gauge FS 2 and load cell for tensile and compressive force measurements.
Choice of load cell - CR 500-1Y1, CR 1000-1Y1, CR 5000-1Y1, CR 10000-1Y1, or CR 20000-1Y1.
Premium Force-Measuring Device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3.5" touchscreen
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment is possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Load Cell made of Alloyed Steel
- Accuracy class in accordance with OIML C1
- High precision (comprehensive Error 0.05% F.S.)
- Nominal sensitivity: 2 mV/V
- Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
- Area of application: for tensile and compressive force measurement
Product Range
- Sauter FS 2-5KRY1 Force Measuring Device Set, CR 500-1Y1 Load Cell, 5kN, 1N
- Sauter FS 2-10KRY1 Force Measuring Device Set, CR 1000-1Y1 Load Cell, 10kN, 2N
- Sauter FS 2-50KRY1 Force Measuring Device Set, CR 1000-1Y1 Load Cell, 10kN, 2N
- Sauter FS 2-100KRY1 Force Measuring Device Set, CR 10000-1Y1 Load Cell, 100kN, 20N
- Sauter FS 2-200KRY1 Force Measuring Device Set, CR 20000-1Y1 Load Cell, 200kN, 40N
Tech Specs
FS 2-5KRY1 | FS 2-10KRY1 | FS 2-50KRY1 | FS 2-100KRY1 | FS 2-200KRY1 | |
---|---|---|---|---|---|
Measuring range force [Max] (N) | 5 kN | 10 kN | 50 kN | 100 kN | 200 kN |
Readability force [d] (N) | 1 N | 2 N | 10 N | 20 N | 40 N |
Measuring head measuring frequency | 1000 Hz | ||||
Number of platforms / channels | 2 | ||||
Supplied power supply | Battery & Power supply | ||||
Rechargeable battery | 3,7V, 2400mAh | ||||
Memory function | ✔ | ||||
Statistic function | ✔ | ||||
Peak function | ✔ | ||||
Material housing | plastic | ||||
Interfaces | USB-Device | ||||
Product family | FS RY1 |
0 Reviews
Overall Rating
Additional Information
SKU | FS 2-XKRY1 |
---|
