Sauter Single-Point Load Cells (3kg to 50kg) - Choice of Model
Description

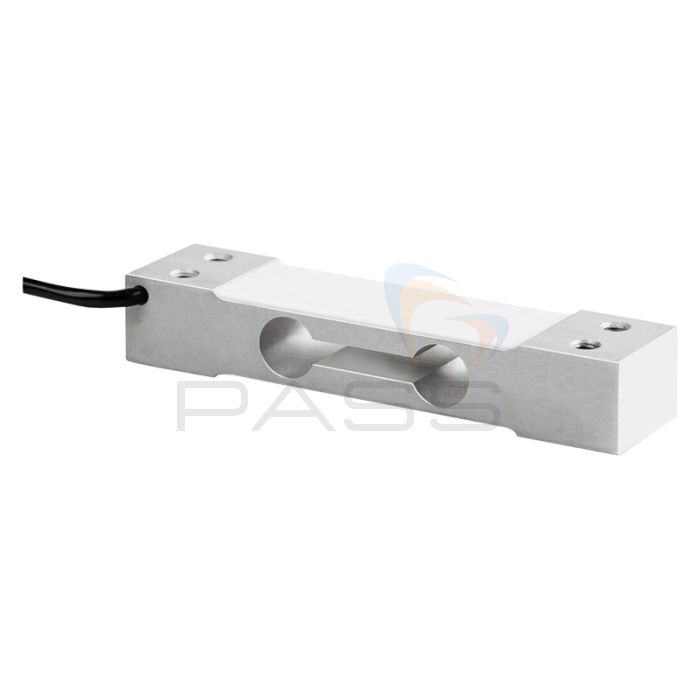

These Sauter single-point load cells are made of anodised aluminium and have an extra-long cable. Five different weighing capacities are available to choose from, 3, 10, 15, 35 & 50kg.
Product Range
- Sauter CP 3-2-3P1 Single-Point Load Cell, 3kg
- Sauter CP 10-3-3P1 Single-Point Load Cell, 10kg
- Sauter CP 15-3-3P1 Single-Point Load Cell, 15kg
- Sauter CP 35-3-3P1 Single-Point Load Cell, 35kg
- Sauter CP 50-2-3P1 Single-Point Load Cell, 50kg
Tech Specs
| CP 3-2-3P1 | CP 10-3-3P1 | CP 15-3-3P1 | CP 35-3-3P1 | CP 50-2-3P1 | |
|---|---|---|---|---|---|
| Weighing capacity [Max] | 3 kg | 10 kg | 15 kg | 35 kg | 50 kg |
| Design | Singlepoint load cell | ||||
| Directions of force | compression | ||||
| Measuring applications | mass | ||||
| Load cell - Combined error | 0,023% | ||||
| Load cell OIML class | C3 | ||||
| Load cell - Resolution (verifiable) | 3000 e | ||||
| Load cell - Y-value | 10000 | ||||
| Load cell - characteristic value - nominal | 2 mV/V | ||||
| IP protection - complete device | IP65 | ||||
| Material | aluminium | ||||
| Load cell connection | 4-wire | ||||
| Cable length | 3 m | ||||
| Mounting - force application | 2 x threaded hole M6 | ||||
| Mounting - force dissipation | 2 x threaded hole M6 | ||||
| Product family | CP P1 | ||||
