Description

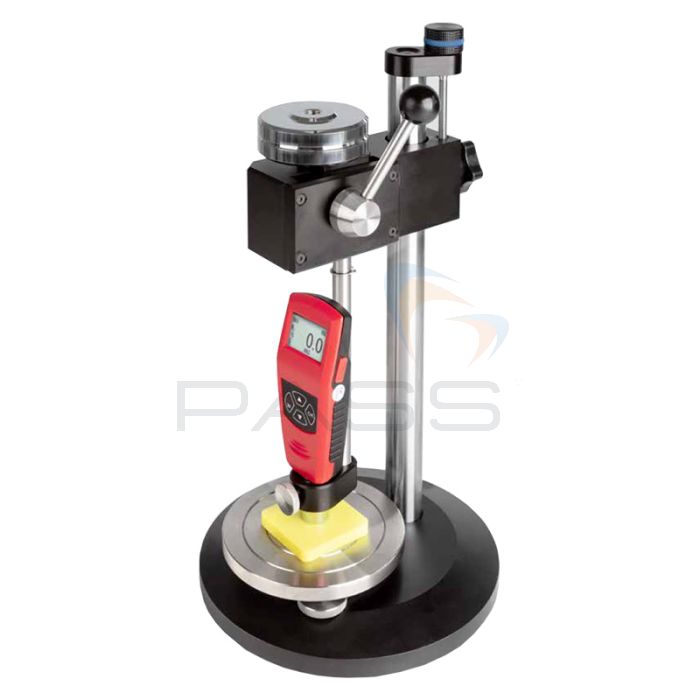

These high-quality Sauter test stands are for Shore hardness testing of plastics in industry and the laboratory. The test stands are available for Shore A or D hardness scales.
Please note that the hardness measuring device is not included and must be purchased separately.
Key Features
- One test stand for two hardness scales: The test stand TI-HEA only requires the additional weight TI-HE to be screwed onto so it is also suitable for Shore D hardness tests,
- Level adjustment: For the precise levelling of the steel base plate, e.g. for the correction of inhomogeneous test objects
- Robust design enables accurate measuring of movements
- Simple handling means that you can achieve repeatable measuring results
Product Range
- Sauter TI-HEA Test Stand for Hardness Testing Shore A
- Sauter TI-HED Test Stand for Hardness Testing Shore D
Tech Specs
TI-HEA | TI-HED | |
---|---|---|
Hardness Scales | Shore A | Shore D |
Test Force Hardness Measurement | 10 | 50 |
Overall Dimensions W x D x H mm | 200 x 200 x 390 | 200 x 200 x 470 |
Net Weight approx. | 6 | 10 |
Maximum Stroke Length | 20 mm | |
Maximum Test Object Height | 50 mm | |
Base Plate | ∅ 115 mm |
0 Reviews
Overall Rating
Additional Information
SKU | TI-HEA/HED |
---|
