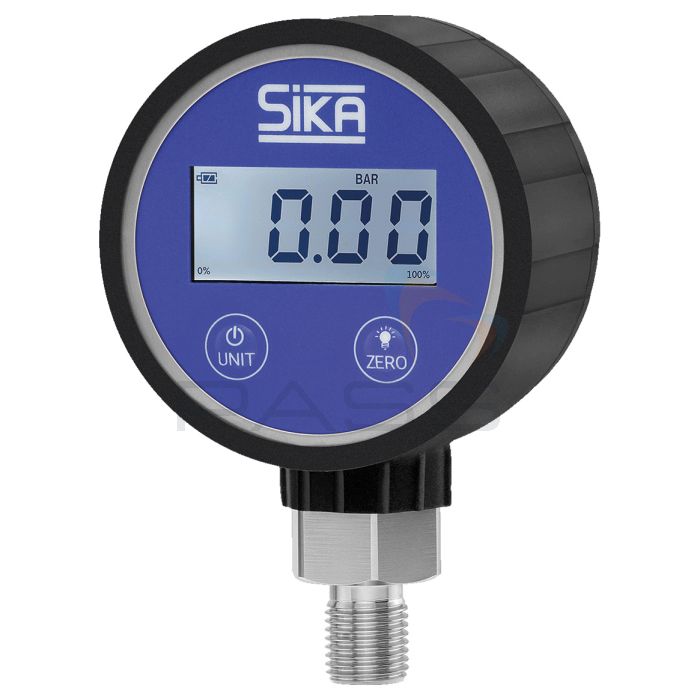

Sika Type F2 Digital Pressure Gauge
- 4-digit LCD
- Switch between units
- Simple two-button operation
- Four models available
SKU
SIKA-TYPE-F2
These SIKA Type F2 digital pressure gauges are a battery-operated alternative to a conventional analogue pressure gauge. They have a typical accuracy of 0.8 % (nominal 1 %) of the full-scale value. The gauges have a 4-digit LCD with a bar graph, backlight, and a zero-point correction.
The gauges can switch between bar, kPa, PSI, kgf/cm², mbar and MPa units, depending on the measuring range. They are suitable for hydraulics, pneumatics, water and wastewater technology and plant and mechanical engineering.
Key Features
- Simple two-button operation
- Switchable pressure units
- Compact housing
What's Included?
- Digital pressure gauge
- Protection cover
- Operating instructions
- Thread adapter (optional for ¼″ NPT version)
Product Range
- Sika EME8RF2-0003G Type F2 Digital Pressure Gauge, -1 to 3 Bar
- Sika EME8RF2-0040G Type F2 Digital Pressure Gauge, -1 to 40 Bar
- Sika EME8RF2-0060G Type F2 Digital Pressure Gauge, 0 to 60 Bar
- Sika EME8RF2-0400G Type F2 Digital Pressure Gauge, 0 to 400 Bar
Overview Pressure Ranges
| Pressure Range | Burst Pressure | bar | kPa | PSI | kgf/cm2 | mbar | MPa |
|---|---|---|---|---|---|---|---|
| -1...0 bar (-14…0 PSI) | 1 bar (14 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| -1...3 bar (-14…40 PSI) | 6 bar (85 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 0...6 bar (0…85 PSI) | 12 bar (170 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 0...10 bar (0…145 PSI) | 20 bar (290 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 0...16 bar (0…230 PSI) | 32 bar (460 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| -1...25 bar (-14…360 PSI) | 50 bar (720 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| -1...40 bar (-14…580 PSI) | 80 bar (1160 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 0...60 bar (0…870 PSI) | 120 bar (1740 PSI) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 0...100 bar (0…1450 PSI) | 150 bar (2175 PSI) | ✔ | ✔ | ✔ | ✔ | ||
| 0...160 bar (0…2320 PSI) | 240 bar (3480 PSI) | ✔ | ✔ | ✔ | ✔ | ||
| 0...250 bar (0…3625 PSI) | 375 bar (5435 PSI) | ✔ | ✔ | ✔ | ✔ | ||
| 0...400 bar (0…5800 PSI) | 600 bar (8700 PSI) | ✔ | ✔ | ✔ | ✔ | ||
| 0...600 bar (0…8700 PSI) | 900 bar (13050 PSI) | ✔ | ✔ | ✔ | ✔ |
Technical Information
Specification
| Pressure Ranges | See the overview of pressure ranges |
|---|---|
| Accuracy (± of full scale value) | typical +/- 0.8% FS (nominal +/-1 % FS) |
| Selectable Pressure Units | bar, mbar, PSI, kgf/cm², kPa, MPa |
| Display Type | Large single 4-digit LCD with backlight (white) percentage bars indication, battery status |
| Display Rate | 2 readings per second |
| Pressure Measuring Cell | ≤ 250 bar ceramic > 250 bar stainless steel |
| Operating Temperature | 10...70 °C (14...160 °F) |
| Compensation Temperature | 18...30 °C (65...90 °F) |
| Long-term Stability | +/- 0.2% FS / year |
| Measuring Medium | Non-explosive gases, water, and oil All non-highly viscous media that do not corrode stainless steel |
| Process Connection | G¼ or ¼″ NPT via adapter |
| Connection Material | Stainless steel 1.4301 / AISI 304 |
| Electrical Protection | EN 61326 |
| Housing Material | Stainless steel 1.4301 / AISI 304 |
| Weight | 0.3 kg (0.7 lbs) |
| Power Supply | 2x AAA batteries (not included in the scope of delivery) |
| Battery Life | 2400 hours |
