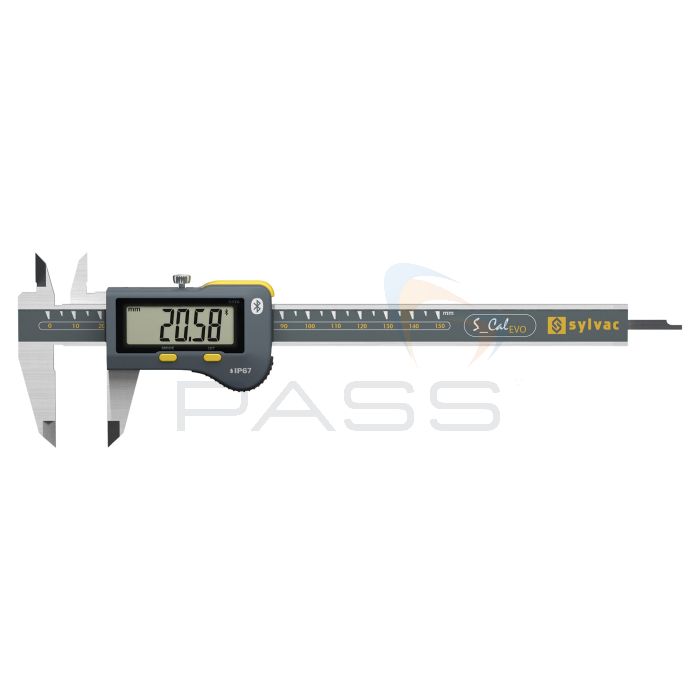

Sylvac S_Cal EVO Bluetooth Caliper
- Max. error 20 µm
- IP67 protected
- Built-in Bluetooth
- 150mm, 200mm & 300mm models
SKU
SV-30-810-15-X-6
The Sylvac S_Cal EVO Bluetooth Calipers are available in 150mm, 200mm, and 300mm sizes with a maximum error of just 20 µm. These calipers have a flat depth rod, IP67 protection, and comply with DIN 862 standards. They have an absolute measuring system with an automatic wake-up function, delivering reliable readings without resetting to zero. The integrated Bluetooth 4.0 transmitter enables wireless communication up to 15 metres, and the CR2032 cell provides up to three years of battery life from a standard CR2032 cell.
Key Features
- Max. error 20 µm
- IP67 protected
- Built-in Bluetooth 4.0 transmitter
- Transmission distance up to 15m
- Absolute system
- Automatic wake-up
- Powered by standard CR2032 battery
- Battery life up to 3 years
- Mechanical frame in stainless steel
Product Range
- Sylvac 30-810-1506 S_Cal EVO Bluetooth Caliper, 0-150mm
- Sylvac 30-810-1526 S_Cal EVO Bluetooth Caliper, 0-200mm
- Sylvac 30-810-1536 S_Cal EVO Bluetooth Caliper, 0-300mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| 30-810-1506 | 30-810-1526 | 30-810-1536 | |
|---|---|---|---|
| Measuring Range (mm) | 150 | 200 | 300 |
| Max. Error G - External Measurements (μm) | 20(1) | 30(1) | 30(1) |
| Max. Error - Internal Measurements (μm) | 20-30(2) | 30(2) | 40(2) |
| A (mm) | 234.5 | 290.5 | 388 |
| B (mm) | 40 | 50 | 64 |
| C (mm) | 11 | 14 | 14 |
| D (mm) | 16 | 19 | 19 |
| E (mm) | 16 x 3.5 | 16 x 3.5 | 16 x 4 |
| Depth Rod (mm) | 4 x 1.4 | 4 x 1.4 | - |
| Protection Rating According to IEC 60529 | IP67 | ||
| Output Data | Bluetooth® wireless technology Up to 8 instruments connected per dongle #981-7100 |
||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
| Smart Inductive Sensor | ✔ | ||
| (1) 0-150 mm : 20 μm /
ISO13385-1 > 150 mm : 30 μm / ISO13385-1 |
(2) Ø4-25 : 20 μm /
ISO13385-1 Ø26-150 : 30 μm / ISO13385-1 >Ø150 : 40 μm / ISO13385-1 |
||
