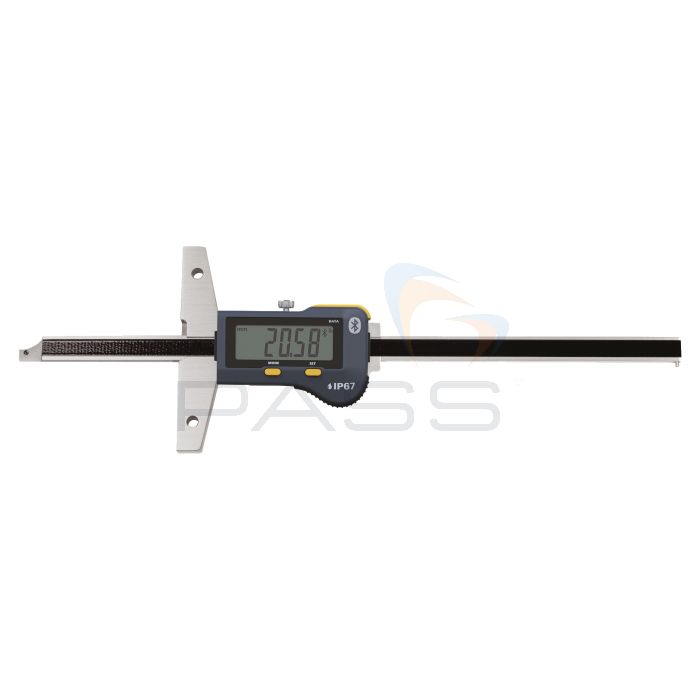

Sylvac S_Cal EVO Bridge Depth Gauge
- Automatic wake-up
- Sleep mode
- 200mm, 300mm & 500mm
- 0.01mm resolution
SKU
SV-30-812-161-X
The Sylvac S_Cal EVO Bridge Depth Gauges are available in 200mm, 300mm, and 500mm variants. Each model has a 100mm bridge with a clamping screw, providing a secure, flat reference surface. They have a stainless steel frame and IP67 protection.
Sylvac’s Absolute System SIS provides instant wake-up with movement, sleep mode after 20 minutes of inactivity, and position memory. The S_Cal EVO gauges have a resolution of 0.01mm and a displacement speed of up to 2.5 m/s. They also have an integrated Bluetooth Smart data transmission and a programmable function button.
Key Features
- Programmable button according to needs
- Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529
- Automatic wake-up (Absolute System SIS)
- Sleeping mode after 20 min. of no use (Absolute System SIS)
- Maximum speed of displacement: 2.5 m/sec
- Mechanical frame in stainless steel
- 0.01mm resolution
Key Features
- Sylvac 30-812-1611 S_Cal EVO Bridge Depth Gauge, 200mm
- Sylvac 30-812-1613 S_Cal EVO Bridge Depth Gauge, 300mm
- Sylvac 30-812-1615 S_Cal EVO Bridge Depth Gauge, 500mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| 30-812-1611 | 30-812-1613 | 30-812-1615 | |
|---|---|---|---|
| Measuring Range mm | 200 | 300 | 500 |
| Max. Error µm | 30 | 30 | 50 |
| Resolution mm | 0.01 | ||
| A mm | 300 | 400 | 600 |
| B mm | 12x4 | ||
| Output Data | Bluetooth® wireless technology Up to 8 instruments connected per dongle #981-7100 |
||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
| Smart Inductive Sensor | ✔ | ||
Additional Information
SKU
SV-30-812-161-X
Sylvac S_Cal EVO Bridge Depth Gauge
£675.50
£810.60 inc vat
£675.50
£810.60 inc vat
