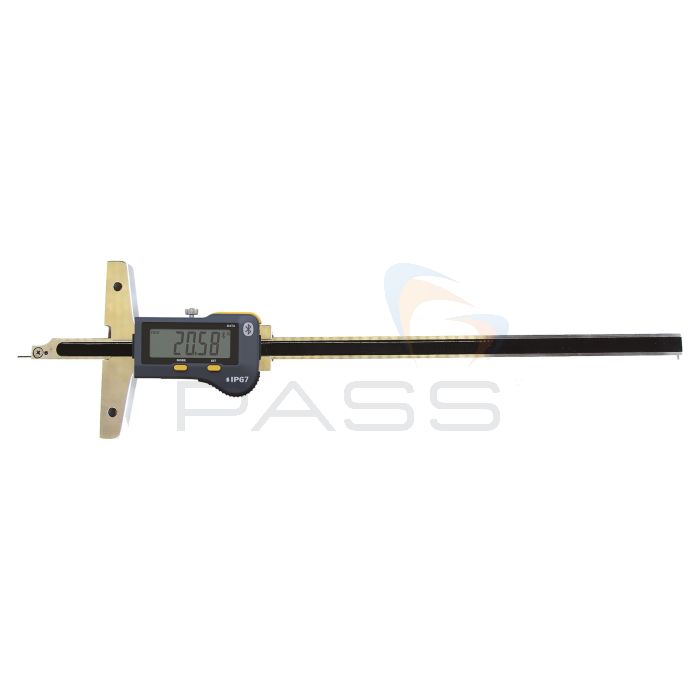

Sylvac S_Cal EVO Double Depth Gauge
- Programmable button
- 0.01 resolution
- Automatic wake-up
- 200mm, 300mm & 500mm
SKU
SV-30-812-162-X
The Sylvac S_Cal EVO Double Depth Gauges are available in 200mm, 300mm, and 500mm. They have a double-depth configuration, a stainless steel frame, IP67 protection, an adjustable anvil, and a clamping screw.
With a 0.01mm resolution and Sylvac’s Absolute System SIS technology, users benefit from automatic wake-up, position memory in sleep mode, and fast displacement speeds up to 2.5 m/s. The S_Cal EVO Double Depth Gauge series also has integrated Bluetooth Smart data transmission and a programmable function button.
Key Features
- Programmable button according to needs
- Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529
- Automatic wake-up (Absolute System SIS)
- Sleeping mode after 20 min. of no use (Absolute System SIS)
- Maximum speed of displacement: 2.5 m/sec
- Mechanical frame in stainless steel
- 0.01 resolution
Product Range
- Sylvac 30-812-1621 S_Cal EVO Double Depth Gauge, 200mm
- Sylvac 30-812-1623 S_Cal EVO Double Depth Gauge, 300mm
- Sylvac 30-812-1625 S_Cal EVO Double Depth Gauge, 500mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| 30-812-1621 | 30-812-1623 | 30-812-1625 | |
|---|---|---|---|
| Measuring Range mm | 200 | 300 | 500 |
| Max. Error µm | 30 | 30 | 50 |
| Resolution mm | 0.01 | ||
| A mm | 300 | 400 | 600 |
| B mm | 12x4 | ||
| Output Data | Bluetooth® wireless technology Up to 8 instruments connected per dongle #981-7100 |
||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
| Smart Inductive Sensor | ✔ | ||
Additional Information
SKU
SV-30-812-162-X
Sylvac S_Cal EVO Double Depth Gauge
£729.00
£874.80 inc vat
£729.00
£874.80 inc vat
