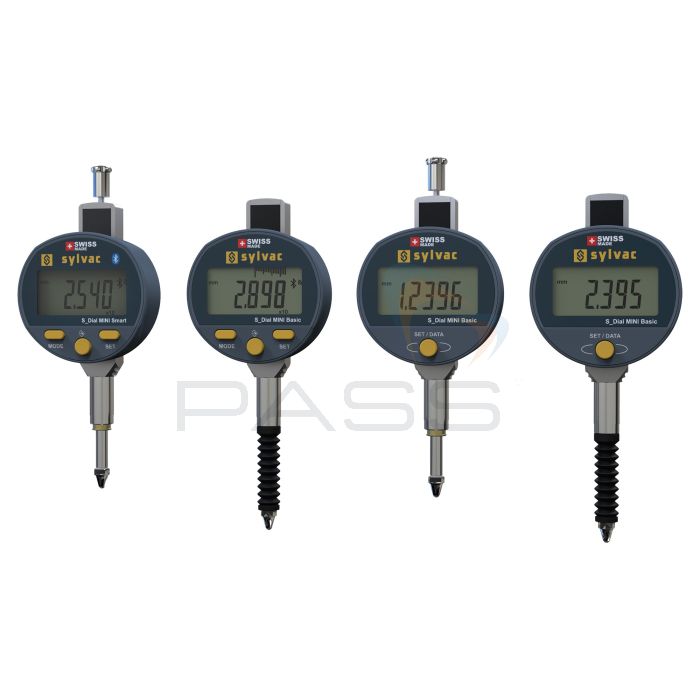

Sylvac S_Dial Mini Bluetooth Indicator
- Compact, small diameter (Ø45 mm)
- 0.5 - 0.9 N or 0.6 - 1.3 N
- 0.01mm or 0.001mm
- Interchangeable contact point M2.5
SKU
SV-30-805-6-X
The Sylvac S_Dial Mini Bluetooth Indicators have measuring forces from 0.5–0.9 N or 0.6–1.3 N and resolutions of 0.01mm or 0.001mm. They have a small Ø45mm housing and a large, easy-to-read display. The indicators have integrated Bluetooth and RS232 output, support absolute and relative modes, metric/inch conversion, preset, min/max/delta readings, automatic shut-off, and a multiplication factor. The dovetail back, hardened Ø8-h6 clamping stem, and an M2.5 interchangeable contact point provides compatibility with various setups.
Key Features
- Compact, small diameter (Ø45 mm)
- Water and coolant resistant, protection rating IP54 or IP67 according to IEC 60529 (depends on model)
- Data output RS 232 combined with external power supply and Bluetooth (depends on model)
- Interchangeable contact point M2.5
- Clamping stem Ø 8-h6 of hardened and ground stainless steel. Dovetail back
- Min/max/delta display
- Multiplication factor
- Automatic power shut down
Product Range
- Sylvac 30-805-6121 S_Dial Mini Bluetooth Indicator, 0.5 - 0.9 N, 0.01mm
- Sylvac 30-805-6125 S_Dial Mini Bluetooth Indicator, 0.6 - 1.3 N, 0.01mm
- Sylvac 30-805-6521 S_Dial Mini Bluetooth Indicator, 0.5 - 0.9 N, 0.001mm
- Sylvac 30-805-6525 S_Dial Mini Bluetooth Indicator, 0.6 - 1.3 N, 0.001mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Maximum Error (µm) | Repeatability (µm) | Force | Resolution (mm) | |
|---|---|---|---|---|---|
| 30-805-6121 | 12.5 | 10 ± 1 digit | 2 | 0.5 - 0.9 N | 0.01 |
| 30-805-6125 | 12.5 | 10 ± 1 digit | 2 | 0.6 - 1.3 N | 0.01 |
| 30-805-6521 | 12.5 | 4 | 2 | 0.5 - 0.9 N | 0.001 |
| 30-805-6525 | 12.5 | 4 | 2 | 0.6 - 1.3 N | 0.001 |
