Testo 860i Mould Kit - Thermal Imaging Camera & Thermohygrometer
- Testo 860i Wireless Thermal Imaging Camera
- Testo 605i Thermohygrometer
SKU
3005630861
MPN
300563 0861
The Testo 860i Mould Kit combines the Testo 860i Wireless Thermal Imaging Camera with the Testo 605i Thermohygrometer. It has high-resolution infrared imaging and smartphone connectivity through the Testo Smart App. This IP54-rated kit is ideal for HVAC, maintenance, and building inspections, ensuring accurate measurements and compliance with AWAAB's Law for proactive mould prevention. Please visit our Testo 860i Wireless Thermal Imaging Camera and Testo 605i Thermohygrometer listings.
Key Features
- High-Resolution Thermal Imaging - 256 x 192 pixel infrared resolution for sharp, detailed images.
- Mould Detection - Combines thermal imaging with humidity monitoring for accurate mould risk assessment.
- Durable & Reliable - IP54-rated, 1.5m drop resistance, and a long-lasting rechargeable battery for field use.
- Awaab’s Law Compliance - Ideal for landlords and surveyors to identify and address mould risks in compliance with legal standards.
- Smart app connection - data can be stored and exported.
Introducing the testo 860i

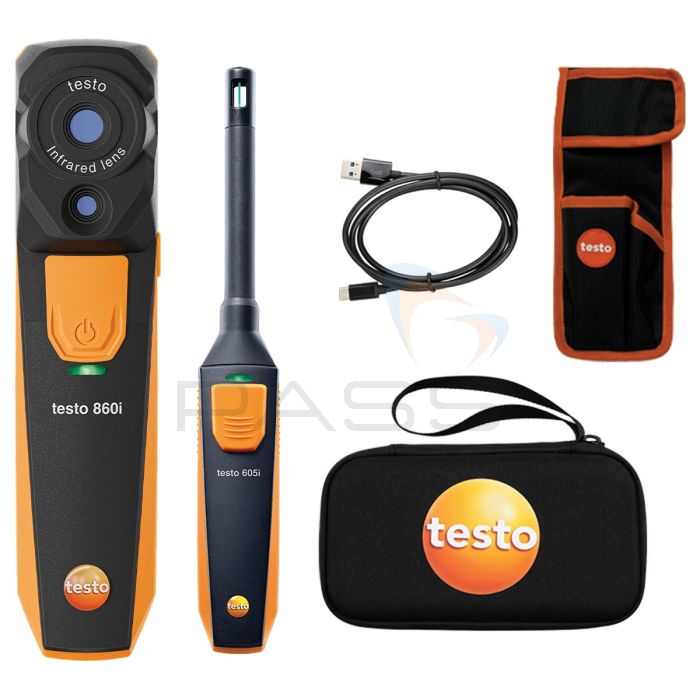

What's Included?
- Testo 860i Thermal Imaging Camera
- Testo 605i Thermohygrometer (includes batteries)
- USB-C Cable
- Pouch
Technical Information
Specification
Testo 860i Wireless Thermal Imaging Camera
| Infrared Image Output | |
|---|---|
| Infrared Resolution | 256 x 192 pixels |
| Thermal Sensitivity (NETD) | 50 mK |
| Field of View (VFOV/HFOV)/ min. Focusing Distance | 48° x 36° / 0.3 m |
| Geometric Resolution (IFOV) | 3.3 mrad |
| Image Refresh Rate | 9 Hz |
| Focus | Fixed |
| Spectral Range | 8 to 14 µm |
| Visual Image Output | |
| Image Size/min. Focusing Distance | 640 x 480 pixels / 0.4 m |
| Measurement | |
| Measuring Range | -20 to +350 °C |
| Accuracy | ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40 °C and scene temperature of 0... +150 °C or +100... +350 °C) |
| Emissivity/Reflected Temperature Adjustment | 0.01 to 1 / manual (via Testo Smart App) |
| Measurement Functions (in the Testo Smart App) | |
| Analysis Functions | Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area) |
| Application-Specific Measurement Functions | DeltaHeat, DeltaCool, humidity mode |
| Humidity Mode - Manual | Yes |
| Humidity Measurement with Humidity Measuring Instrument | Automatic transfer of the optional Testo 605i or Testo 625 thermohygrometer readings via Bluetooth to the Testo Smart App |
| Electrical Mode - Manual | Input of current, voltage or power |
| Electrical Measurement with Clamp Meter | Automatic reading transfer of the optional Testo 770-3 Clamp Meter via Bluetooth to the Testo Smart App |
| Image Presentation (in the Testo Smart App) | |
| Display Options | IR image, real image (overlay in IRSoft possible) |
| Fullscreen Mode | Yes |
| Colour Palettes | Iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT, humidity palette |
| Digital Zoom | Yes |
| General App Functions | |
| File Format | Share saved images as .bmt (for editing in IRSoft), .jpg, and .csv files with the Testo Smart App |
| Image Storage | On a mobile device |
| Remote-controlled Operation | Up to 10 m from the mobile device (via WLAN) |
| Power Supply | |
| Battery Type | Integrated Li-ion rechargeable battery |
| Battery Life | 2 hours |
| Charging Interface | USB-C |
| Charging Time | Approx. 90 min A 15-minute charge of an empty battery equals 30 minutes of operating time |
| Ambient Conditions | |
| Operating Temperature Range | -10 to +50 °C |
| Storage Temperature Range | -20 to +70 °C |
| Air Humidity | 5 to 95 %RH, non-condensing |
| Housing Protection Class (IEC 60529) | IP54 |
| Impact Resistance Test | 1.5 m |
| Vibration | IEC 60068-2-6 |
| Physical Features | |
| Weight | 195 g |
| Dimensions | 165 x 45 x 38 mm |
| Mobile Device Attachment | Clip span: min. 120 mm, max. 170 mm and device depth up to max. 12 mm |
| Tripod Socket | ¼" UNC thread |
| Compatibility | |
| Testo Smart App | Requires iOS 17 or later/Android 14 or later Requires a mobile terminal device with Bluetooth 4.0 |
| PC Software Testo IRSoft | Windows 11, Windows 10 |
| Data Interface | |
| WLAN* | Communication with the Testo Smart App WLAN: IEEE 802.11b/g/n |
| Bluetooth* | Peer-to-peer advertising for fast connection set-up |
| * An overview of the radio authorisations in the different countries can be found in the download section of the Testo 860i product page in the "Quick Start Guide Testo 860i" document. | |
Testo 605i Thermohygrometer
| Temperature - NTC | |
|---|---|
| Measuring Range | -20 to +60 °C |
| Accuracy | ±0.8 °C (-20 to 0 °C) ±0.5 °C (0 to +60 °C) |
| Resolution | 0.1 °C |
| Humidity - Capacitive | |
| Measuring Range | 0 to 100 %RH |
| Accuracy | ±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %RH (65 to 90 %RH) (at +25°C) ±5 %RH (< 10 %RH or > 90 %RH) Hysteresis: ±1.0 %RH Long-term stability: ±1 %RH / year |
| Resolution | 0.1 %RH |
| General Technical Data | |
| Weight | 86.4 g |
| Dimensions | 218 x 30 x 27 mm |
| Operating Temperature | -20 to +50 °C |
| Product-/Housing Material | Plastic |
| System Requirements | Requires iOS 11.0 or newer Requires Android 6.0 or newer Requires a mobile end device with Bluetooth 4.0 |
| Product Colour | Black/orange |
| Battery Type | 3 AAA micro batteries |
| Battery Life | 150 h |
| Length Probe Shaft | 100 mm |
| Data Transfer | Bluetooth |
| Radio Range | 100 |
| Storage Temperature | -20 to +60 °C |
Document Downloads
Testo 860i Wireless Thermal Imaging Camera Datasheet
Testo 605i Thermohygrometer Datasheet
Testo 860i Wireless Thermal Imaging Camera User Manual
Testo 860i Mould Kit Brochure
