TPI SPCHKIT Refrigerant Charge Kit
Description
The TPI SPCHKIT Refrigerant Charge is a smart probe kit that allows you to measure the temperature and pressure of refrigeration systems using your smart device and the free TPI View app. It includes two SP323 clamp-type temperature probes, two SP670 high-pressure probes, and an A931 carry case.
You can use this kit to perform superheat and subcooling calculations, as well as save, email, and print your test results with GPS-tagged date and time. This kit is ideal for checking the performance and efficiency of air conditioning, heating, and refrigeration units.
TPI View Smart Device App Job Management overview
SP323 Clamp Type Temperature Probe Key Features
- Temperature Range: -40 to +185 °F (-40 to +85 °C)
- Clamp Range: 1/4 inch to 1 1/2 inch (6mm to 38mm)
- Connect to Smart Device and use with the TPI View App
- Temperature measurement on air conditioning, heating, and refrigeration systems
- Save, e-mail, and/or Print “Differential” Temperature readings with one or two SP323 probes
- View “LIVE” Temperature Readings and instantly Save, e-mail, and/or Print them
- Perform, Save, e-mail, and/or Print differential temperature readings such as Radiator Balancing or Flow & Return on Boilers or Heat Pumps
- Remote Data Logging Function with Multiple instruments logging at the same time
- Store ALL GPS tagged Test Results within the TPI View Job Management
- Use in conjunction with the SP670 high-pressure smart probe to perform Superheat and Subcooling measurements
SP670 High Pressure Probe Key Features
- Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)
- Connection Type: 7/16″-20 UNF / ¼” SAE angled for connections in tight spaces
- Over pressure-protected to 1000 psi
- Adjustable Schrader valve depressor for use on worn valves
- Replaceable Schrader valve depressor
- View “LIVE” High-Pressure readings
- Save, e-mail, and/or Print Pressure readings with GPS-tagged Date & Time on the Report
- Ideal for checking for compressor leaks
- Store ALL GPS tagged Test Results within the TPI View Job Management
- Use in conjunction with the SP323 temperature clamp smart probe to perform Superheat and Subcooling measurements

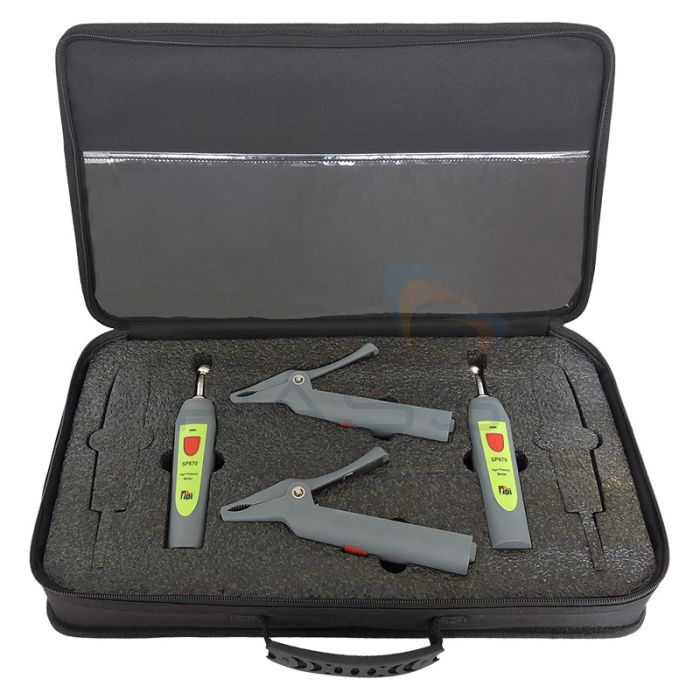

What's Included?
- 2 x SP323 Clamp Type Temperature Probes
- 2 x SP670 High Pressure Probes
- 1 x A931 carry case
Downloads
Tech Specs
| SP323 Clamp Type Temperature Probe Specifications | |
|---|---|
| Temperature Range | -40⁰F to 185⁰F (-40⁰C to 85⁰C) |
| Clamp Pipe Size | 1/4 inch to 1 1/2 inch (6mm to 38mm) |
| Resolution | 0.1⁰F / 0.1⁰C |
| Accuracy | 32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C) |
| Data Logging | 10,000 readings in 1 sec to 59 min 59-sec intervals |
| Battery life | Approximately 170 hours |
| Battery type | AAA x 3 alkaline |
| Operating temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage temperature | 0 °C ~ 50 °C ( 32 °F ~ 122 °F ) |
| Humidity | 0 ~ 80 %RH |
| Weight | 5.64oz (160g) |
| Bluetooth | 5.0 (350-foot range depending on obstacles) |
| SP670 High Pressure Probe Specifications | |
|---|---|
| Pressure Range | -14.7 psi to 870 psi (-1 bar to 60 bar) |
| Over Pressure Range | 1000 psi (70 bar) |
| Input Connection | 7/16"-20 UNF / ¼" SAE |
| Resolution | 0.1 psi / 0.01 bar |
| Accuracy | +/- 0.5% of full scale |
| Battery life | Approximately 160 hours |
| Battery type | AAA x 3 alkaline |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Humidity | 0 to 80 %RH |
| Weight | 5.64oz (160g) |
| Bluetooth | 5.0 (350-foot range depending on obstacles) |
0 Reviews
Overall Rating
Additional Information
| SKU | TPI-SPCHKIT |
|---|---|
| Manufacturer Part Code | SPCHKIT |
| Country of Origin | South Korea |
