TREND Networks FiberTEK IV Adapter Kits - MM LED, SM Laser, or MM LED & SM Laser Kit

TREND Networks FiberTEK IV adapters are used with LanTEK IV-S for fast and simple certification of high bandwidth single-mode and multimode fibre optic cabling. To pinpoint fibre cabling faults every FiberTEK IV adapter includes a built-in visible light source to help you visually pinpoint faults and locate fibre ports. Compatible with LanTEK IV models.

FiberTEK IV provides optical loss (dB) measurements meeting Tier 1 certification requirements. Available in multi-mode (850/1300nm), single mode (1310/1550nm), and combination kits.

LanTEK IV The Future of Cable Certification (UK)

Key Features

Attenuation/insertion loss (dB) measurement
Multimode and single-mode options
Built-in visible light source for troubleshooting
Full Tier 1 fibre certification
Complies with TIA/ISO/IEC
Receive LED Indicator
Field calibration
Supports all common connector types

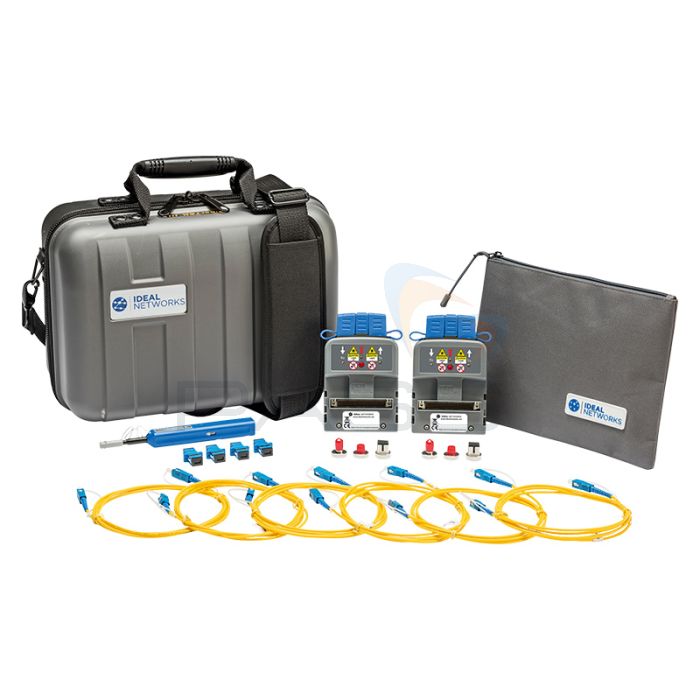

	FiberTEK-IV-MM LED Kit (R164008)	FiberTEK-IV-SM Laser Kit (R164009)	FiberTEK-IV-MM LED & SM Laser Kit (R164010)
Two multimode FiberTEK IV modules	✔	✘	✔
Two single-mode FiberTEK IV modules	✘	✔	✔
Lockable semi-rigid carrying case	✔	✔	✔
SC, FC, ST adapters for modules (2 ea.)	✔	✔	✔
SC-SC patch cords	✔	✔	✔
6 x 50μm MMF compliant with ISO/IEC 14763-3 standard	✔	✘	✔
6 x 9μm SMF compliant to ISO/IEC 14763-3 standard	✘	✔	✔
Quick reference guide	✔	✔	✔

Product Range

TREND Networks R164008 FiberTEK-IV-MM LED Kit
TREND Networks R164009 FiberTEK-IV-SM Laser Kit
TREND Networks R164010 FiberTEK-IV-MM LED & SM Laser Kit
