UNI-T UT372D 2-in-1 Tachometer
- MAX/MIN/AVG/HOLD
- Unit conversion
- Bluetooth APP
- Auto power off
SKU
UT372D
MPN
UT372D

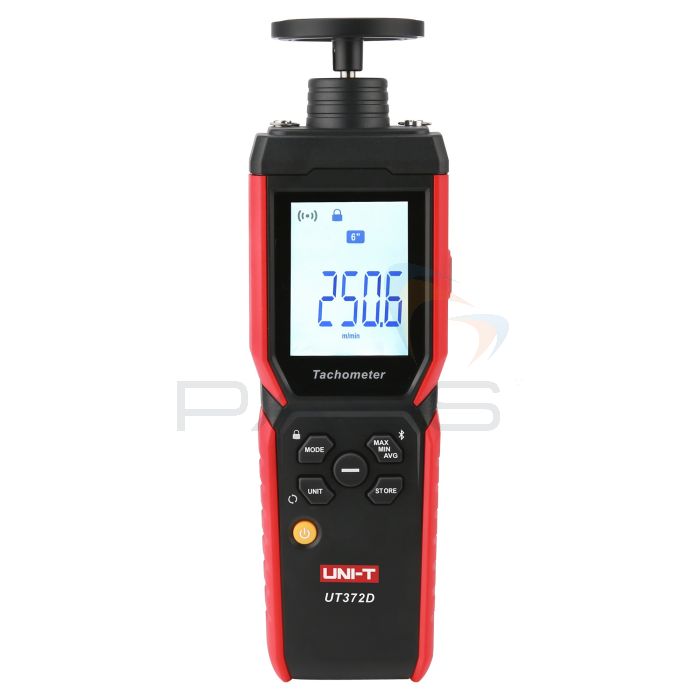

The UNI-T UT372D 2-in-1 Tachometer offers dependable performance and dual functionality, supporting contact and non-contact measurement methods. It's designed to accurately measure RPM, frequency, surface speed, and length, making it ideal for use in motors, fans, automotive systems, and paper production applications.
Introducing the New UNI-T UT372D 2-in-1 Tachometer [Contact & Non-contact Measurement]
Key Features
- Certificates: CE, UKCA
- Languages: EN, FR, DE, IT, ES, SV, PL, CZ
- Contact and non-contact measurements
- MAX/MIN/AVG/HOLD
- Rotatable LCD backlight screen
- Unit conversion
- Bluetooth APP
- Auto power off
- Data storage
- Two measurement buttons
What's Included?
- Tachometer
- User manual
- Quick start guide
- Safety instruction
- Shaft contacts (cone/internal cone)
- Contact wheels (6in/0.1m)
- Cloth bag
- Reflecting tape
Technical Information
Specification
| Non-Contact (Optical) Measurement | Rotational velocity (RPM) | 1-99,999 |
| Frequency (HZ) | 1-1,666 | |
| Count(REV) | 1-99,999 | |
| Target distance | 50~500mm | |
| Contact Measurement | Rotational velocity (RPM) | 1-19,999 |
| Frequency (HZ) | 1-333 | |
| Surface Velocity | 0.1m wheel | |
| 0.1-1,999m/min | ||
| 0.4-6,550ft/min | ||
| 4-78,700in/min | ||
| 6” wheel | ||
| 0.15-1,524m/min | ||
| 0.5-5,000ft/min | ||
| 6-60,000in/min | ||
| Length | 0-99999(m/ft/in) | |
| Accuracy | ±0.02% ±1 digit | |
| Measurement Modes | Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length | |
| Contact Measurement Unit | m/min, ft/min, in/min,m, ft, in | |
| Statistical Measurement | Max/Min/Last reading/Average | |
| Data Storage | 10 groups | |
| Bluetooth APP | √ (iENV) | |
| Display | Rotatable LCD backlight screen | |
| Operating Temperature/Humidity | 0°C~50°C; ≤80%RH | |
| Storage Temperature | -20°C~60°C; ≤80%RH | |
| Drop Test | 1m | |
| Auto Power Off | After about 15 minutes of inactivity | |
| General Characteristics | ||
|---|---|---|
| Product Colour | Red and grey | |
| Product Weight | About 181g (without batteries) | |
| Product Size | 176 x 63 x 38mm | |
| Battery Type | AAA 1.5V x3 | |
Document Downloads
UNI-T UT372D 2-in-1 Tachometer Datasheet
UNI-T UT372D 2-in-1 Tachometer User Manual
UNI-T UT372D 2-in-1 Tachometer Quick Start Guide
