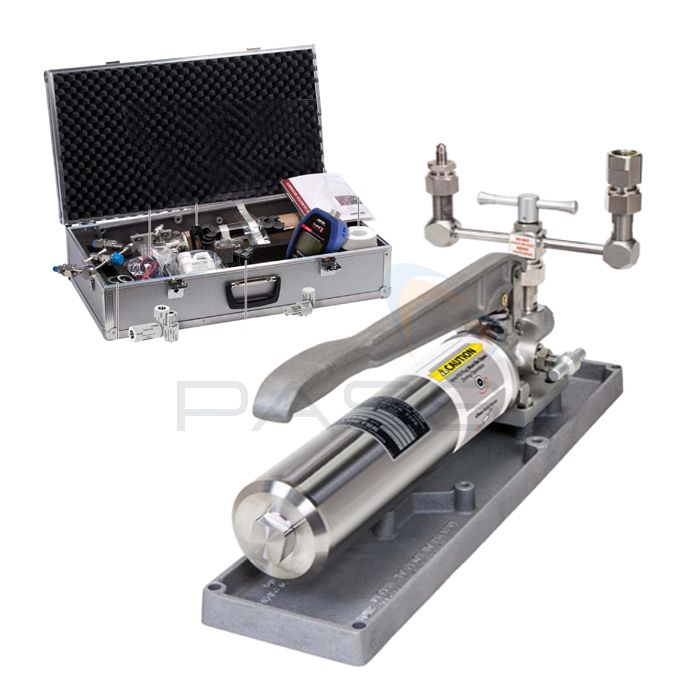

The Ametek Complete Pressure System F is ideal for testing gauges as well as setting hydraulic relief valves and pressure switches. It includes an Ametek Type-T Hydraulic Comparator, a self-contained high-volume pressure source that can generate pressure between 0 and 15 000 psi. It supports fine adjustment up to 3500 psi and offers high and low volume settings.
There are three versions of the Ametek Type-T Hydraulic Comparator available: one compatible with water, one for use with oil, and one that can be used with both water and oil. All of Ametek’s Type-T Hydraulic Comparator models have a large fluid capacity and feature two outlet ports.
The Ametek Complete Pressure System F can be purchased with or without an Ametek Reference Indicator. It is compatible with Ametek’s nVision, 30 Series, HPC40 Series, HPC50 Series, XP2i, and m1 Reference Indicators.
Ametek Complete Pressure System F Key Features
- Ideal for testing gauges as well as setting hydraulic relief valves and pressure switches
- Includes an Ametek Type-T Hydraulic Comparator: a self-contained, high-volume pressure source
- Pressure range: 0 to 15 000 psi
- Fine adjustment to 3500 psi
- High and low volume settings
- Three versions are available: one for use with water, one for use with oil, and one that can be used with both water and oil
- Large fluid capacity
- Two outlet ports
- Can be purchased with or without a reference indicator
- Compatible with Ametek’s nVision, 30 Series, HPC40 Series, HPC50 Series, XP2i, and m1 Reference Indicators
What’s Included?
- Your Choice of Ametek Type-T Hydraulic Comparator
- Your Choice of Ametek Reference Indicator
- 2x CPF Male to 15/16-20 Male Adapter
- CPF Female to ¼” NPT Female Fitting
- CPF to ¼” BSP Female Fitting
- 2x 1/8” MPT Fitting (for 30 Series Calibrator)
- 5x ¼” Bonded Seals
- Red & Black Test Leads with Clips (for 30 Series)
- 4x Protective Vinyl Cap
- 1x Roll of Pack Tape
- Shoulder Strap
- Aluminium Carrying Case
Datasheets
Manuals & Guides
Brochures & Catalogues
Notes & Other
SKU | AME-FOV-FWV |
---|---|
Manufacturer Part Code | AME-FOV-FWV |
