Call For Pricing
or Call 01642 931 329 to discuss product options

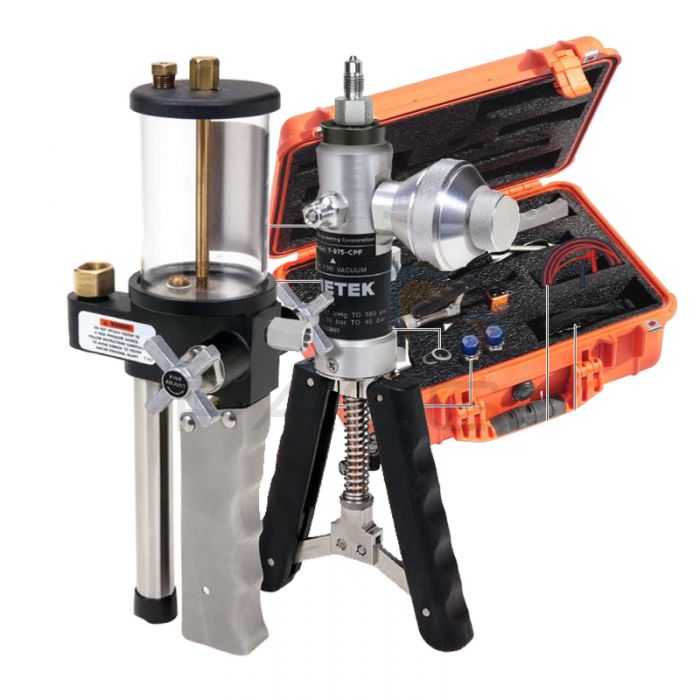

Ametek Complete Pressure System H (T-975 Pneumatic Pressure Pump & T-620H Hydraulic Hand Pump)
Description
The Ametek Complete Pressure System H includes an Ametek T-975 Pneumatic Pressure Pump and T-620H Hydraulic Hand Pump; it can generate pressure and vacuum precisely and easily.
Ametek T-975 Pneumatic Pressure Pump Overview
The Ametek T-975 Pneumatic Pressure Pump can generate pressure up to 580 psi/ 40 bar and vacuum. This lightweight, compact pneumatic pump features an extended range adjustment enabling precise control of pressure and vacuum, while a vent valve provides quick and easy shut-off and pressure release.
For more information about Ametek’s T-900 Series of Pneumatic Pressure Pumps, please click here.
Ametek T-620H Hydraulic Hand Pump Overview
The Ametek T-620H Hydraulic Hand Pump is lightweight, portable, and designed for high-pressure applications. It can generate pressure up to 5000 psi/350 bar.
Please click here for more information about Ametek’s T-600 Series Hydraulic Hand Pump.
The Ametek Complete Pressure System H can be purchased with or without a reference indicator. It is compatible with Ametek’s nVision, 30 Series, HPC40 Series, HPC50 Series, XP2i, and m1 Reference Indicators.
What’s Included?
- Ametek T-975 Pneumatic Pressure Pump
- Ametek T-620H Hydraulic Hand Pump
- Your Choice of Ametek Reference Indicator
- 3/8” BSP Male to CPF Male Fitting
- 5/46-24 SAE Male to CPF Female Fitting
- 2x CPF Female to ¼” NPT Female Fitting
- 2x CPF Female to ¼” BSP Female Fitting
- 2x 1/8” MPT Fitting (for 30 Series Calibrator)
- CPF Male Plug Fitting
- CPF Female Cap Fitting
- 2x 1m CPF Male Hose
- 5x ¼” Bonded Seals
- 5x O-ring and Lock Clip
- Red & Black Test Leads with Clips (for 30 Series)
- 4x Protective Vinyl Cap
- 1x Roll of Pack Tape
- Waterproof Carrying Case
Downloads
Datasheets
Manuals & Guides
Brochures & Catalogues
Notes & Other
0 Reviews
Overall Rating
Additional Information
| SKU | AME-HOX |
|---|---|
| Manufacturer Part Code | AME-HOX |
