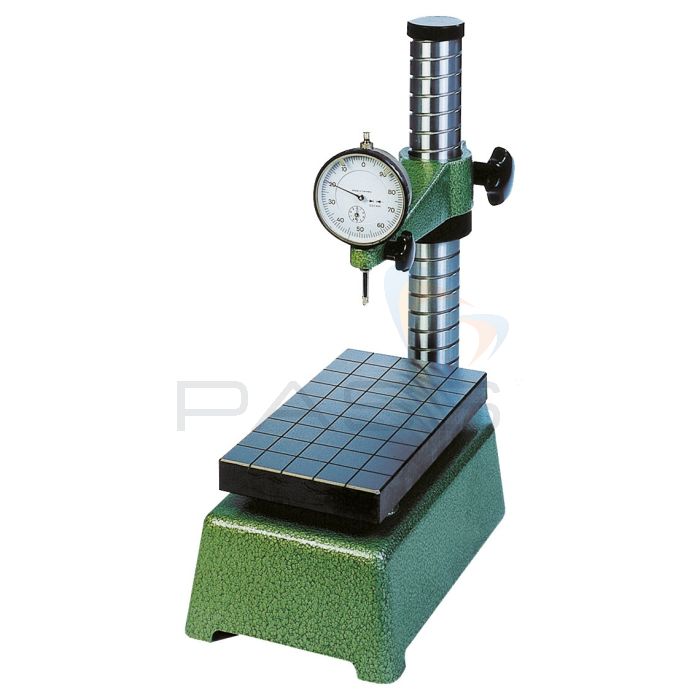

Bowers Comparator Stand
- Table surface is lapped
- Plain, Threaded, Handwheel & Granite options
- Adapter Hole
SKU
BW-13-X
Bowers comparator stands provide stability for various indicator and transducer probe applications. They have a hard chrome column and a finely lapped table surface.
They are available in multiple configurations, including plain, threaded, handwheel-controlled columns, and a granite base version. Each stand has a one-piece bracket and an 8mm H7 adapter hole. This range is suitable for both bench-top and workshop environments.
Any items pictured with the stand must be purchased separately.
Key Features
- Hard chrome column
- Table surface is lapped
- One piece bracket for high rigidity and constant parallelism
- Adapter Hole for dial gauge 8mm H7
Product Range
- Bowers 13-03304 Comparator Stand, Plain Column, 98 x 115mm
- Bowers 13-03305 Comparator Stand, Plain Column, 98 x 180mm
- Bowers 13-03306 Comparator Stand, Threaded Column, 98 x 180mm
- Bowers 13-03308 Comparator Stand, Handwheel Column, 98 x 180mm
- Bowers 13-03309 Comparator Stand, Handwheel Column, 150 x 2000mm
- Bowers 13-1423102 Comparator Stand, Granite, 230 x 200 x 50mm
Offers
Free Tyre Inflator (Spend £500+)
Automatically adds to your basket when the total exceeds £500+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Height (mm) | Load Range (mm) | Overhang (mm) | Weight | Measuring Table Area | Type | Notes | |
|---|---|---|---|---|---|---|---|
| 13-03304 | 284 | 150 | 76 | 7kg | 98 x 115mm | Plain Column | Indicator sold separately |
| 13-03305 | 320 | 160 | 104 | 12kg | 98 x 180mm | Plain Column | Indicator sold separately |
| 13-03306 | 320 | 160 | 104 | 12kg | 98 x 180mm | Threaded Column | Indicator sold separately |
| 13-03308 | 320 | 160 | 104 | 12kg | 98 x 180mm | Handwheel Column | Indicator sold separately |
| 13-03309 | 320 | 320 180 | 104 | 9.5kg | 150 x 200mm | Handwheel Column | Indicator sold separately |
| 13-1423102 | 250 | 200 | 130 | 14kg | 230 x 200 x 50mm | Granite, grade 00 | Indicator sold separately |
